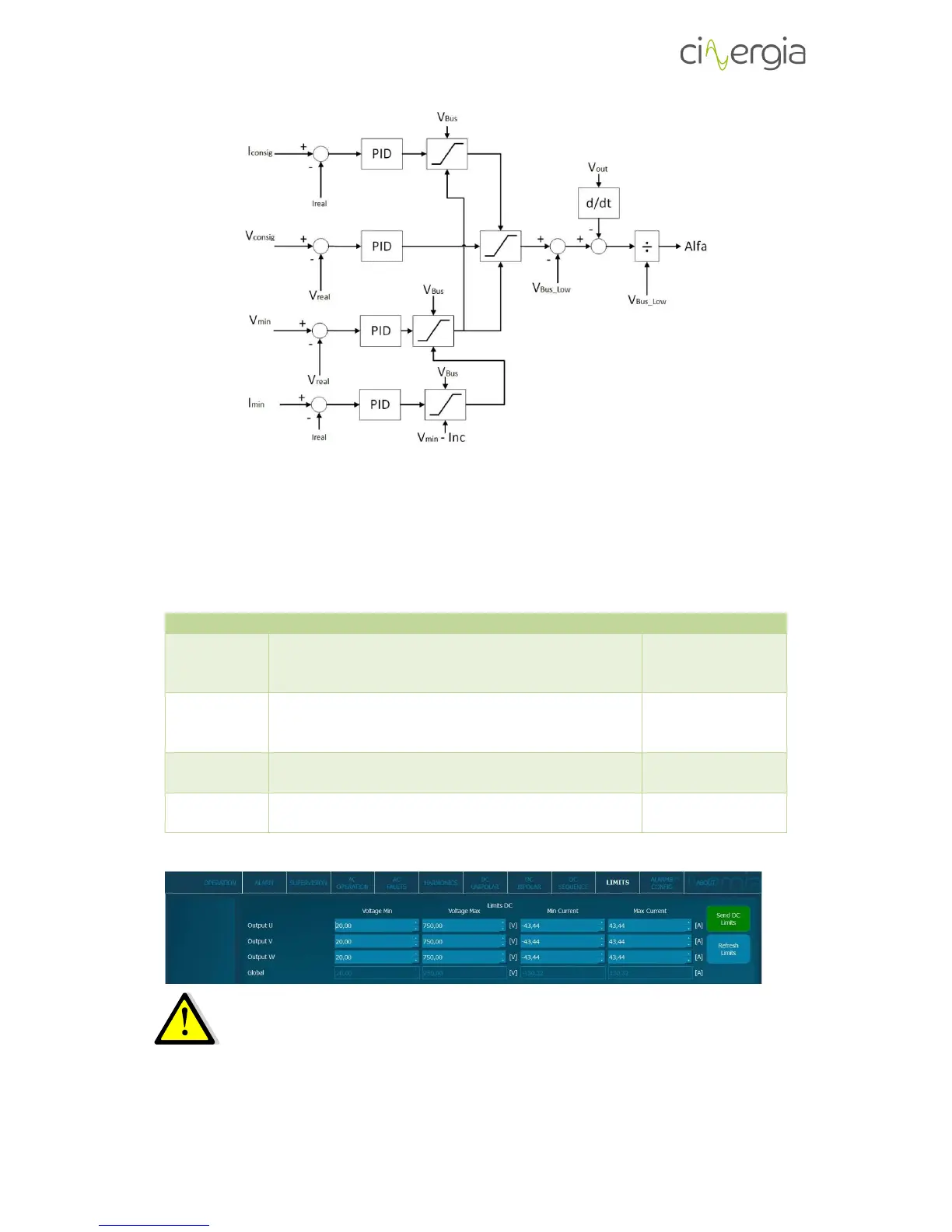

Both in voltage mode and current mode, the equipment is regulated for the limits imposed by
the interface: Max Current, Min Current, Max Voltage and Min Voltage. In case that those limits
are not configured, the equipment is protected by the natural limits (110% of the nominal
current). The following table explains how those limits work.
Parameter
Description
Default
Max Current
Maximum limitation of positive output current:
maximum current the equipment is able to inject
Maximum current
limitation
110% Irated
Min Current
Maximum limitation of negative output current:
maximum current the equipment is able to drain
Maximum current
limitation
110% Irated
Voltage Max
Maximum limitation of voltage the equipment is able
to put in the output
750V
Range: 0V-750V
Voltage Min
Minimum limitation of voltage the equipment is able
to put in the output
2
0V
Range: 0V-750V
Please, take into account that the LIMITS in INDEPENDENT are not working in
PARALLEL mode.
