GE+ ACDC Installation and operation manual v11
39 / 121
The analogue inputs accept a voltage range from -10Vdc to +10Vdc (referenced to GND_ADC).
The analogue output voltage range values are from -10Vdc to +10Vdc (referenced to GND_ADC).
The output analogue values are used to read the internal value of the equipment. Each output
analogue is configurable by the user.
The configuration of each output analogue must be done through the local control LCD
touchscreen.

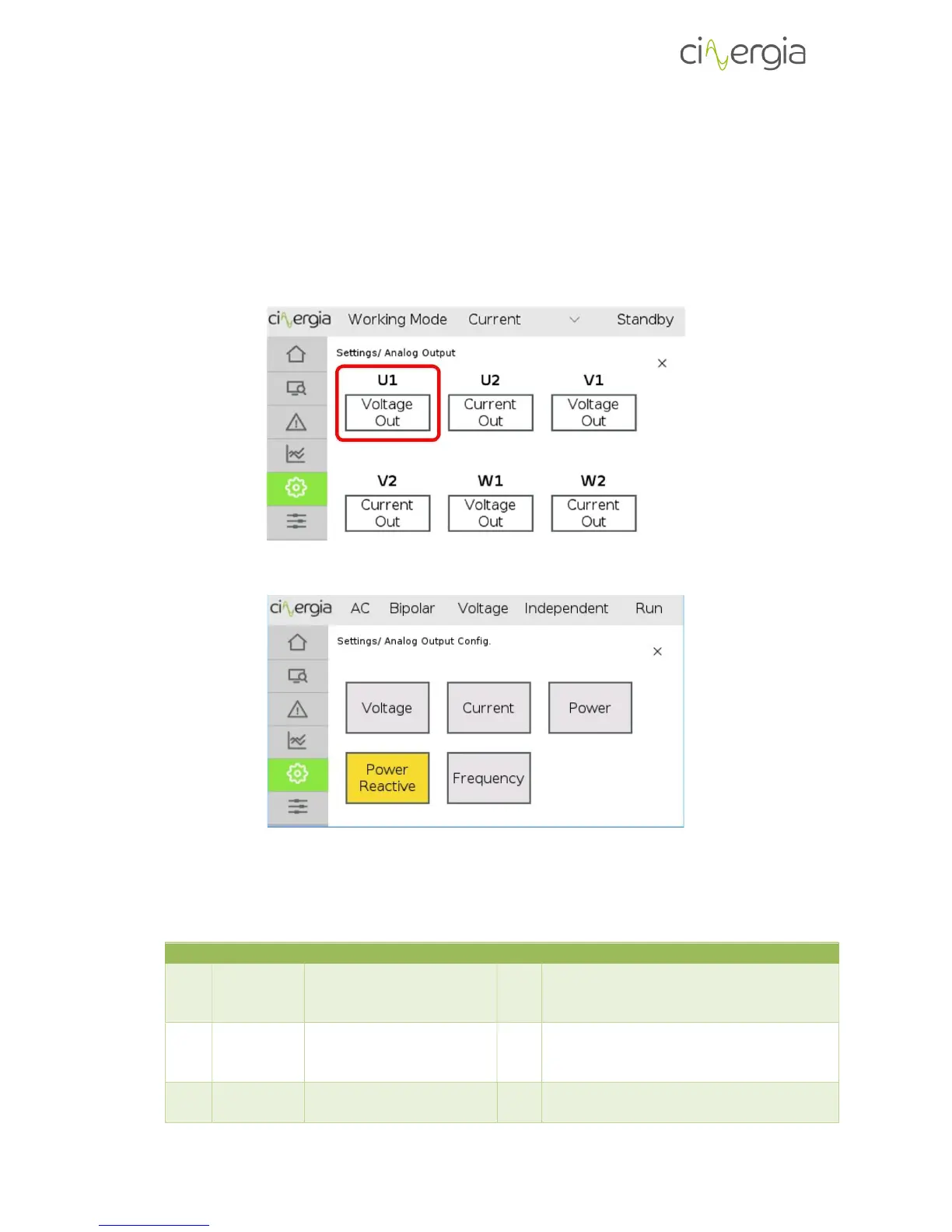

The 6-analogue output are represented.
Each analogue configuration values
Each output analogue can be configured by 6 internal variables (of each channel). The range and
configuration is shown on Table 1.
