- Frequency Variation.
Freq Var, Fault Duration, Fault Start Angle, Freq, FadeIn Ramp, FadeOut Ramp
Example:
Freq Var,200,0,60,10,0.01
- Flicker.
Flicker, Fault Duration, Fault Start Angle, Voltage %, Freq, FadeIn Ramp, FadeOut Ramp
Example:
Flicker,10000,0,50,20,100,0.1
There are also another two more type of rows to be introduced in the file:
- Grid Configuration. During the execution of the faults the grid can also be modified
within the allowed parameters, which have to be introduced in this order:
Grid, Voltage phase U, Voltage phase V, Voltage phase W, Angle phase U, Angle phase
V, Angle phase W, V Ramp phase U, V Ramp phase V, V Ramp phase W, Angle Ramp
phase U, Angle Ramp phase V, Angle Ramp phase W, Frequency, Frequency Ramp
Example:
Grid,230,230,230,0,-120,-240,1,1,1,10,10,10,50,10
- Sleep. It allows to introduce a pause. In the case of the following example, the pause
lasts 1000ms.
Example:
Sleep,1000
It is important to introduce a pause (Sleep) in between all faults to avoid
problems in the converter.
The file must have all data separated by comas and saved as .CSV file.

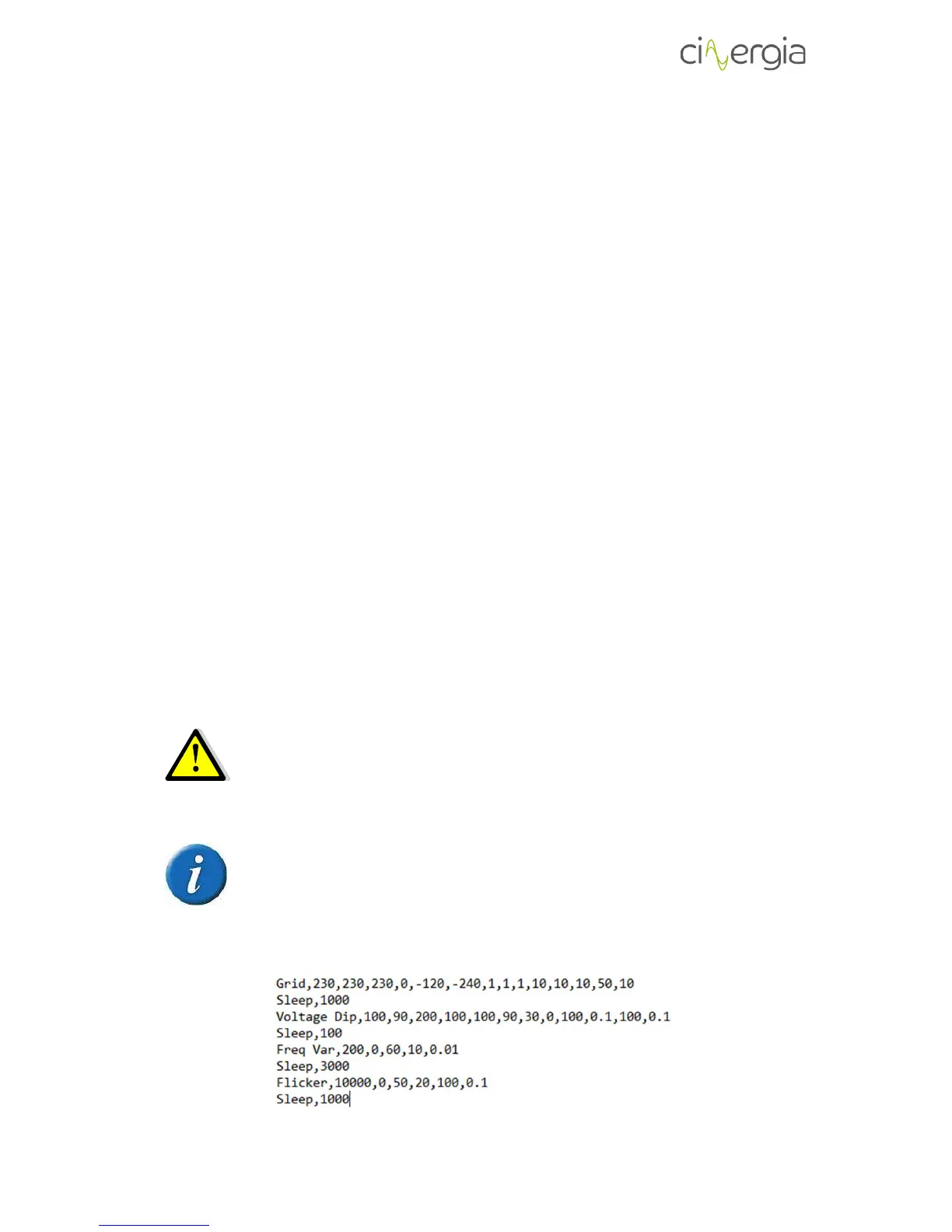

The following is an example of a .csv fault sequence file:
