GE+ ACDC Installation and operation manual v11
82 / 121
The LCD touchscreen will freeze or unfreeze (illuminate) the available parts where
the user can introduce the parameters depending on the equipment (AC or DC,
voltage source or current source and parallel or independent connection)
Each limit window is practically the same, the main difference are the values to introduce. For
example, bipolar limits will not have Global values to introduce because it cannot be in parallel
mode. Or, another example, frequency limits are for all the phases so it does not make

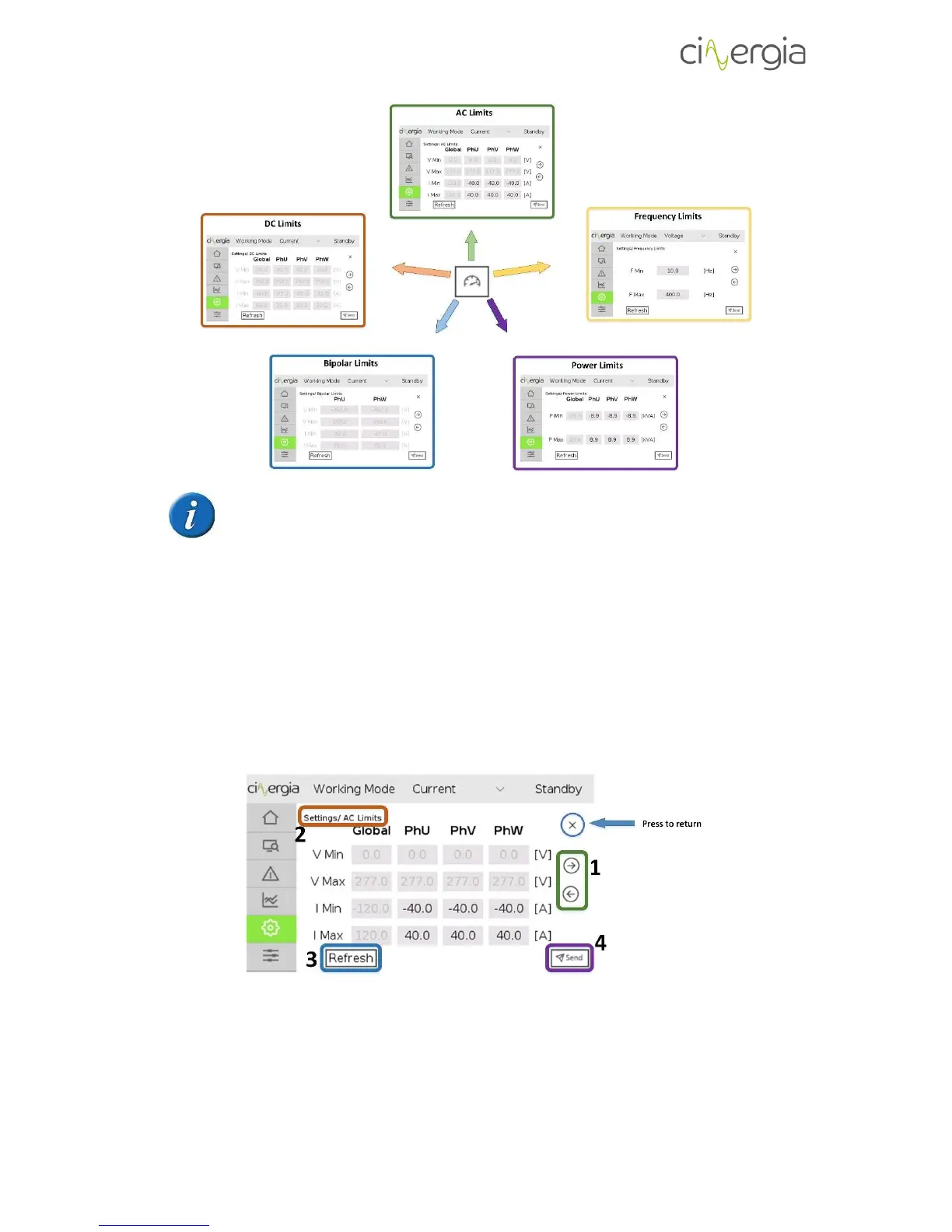

differences between each channel. The following image details one of these window with the
buttons to navigate in it.
1. Change the limit window with the left and right arrows.
2. The actual window is indicated so that the user can see which are the limits to introduce.
For example, this image above is for the AC Limits, and the equipment is in current
