Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers

OL-32185-02

Chapter 5 Install and Upgrade Internal Modules and FRUs

Overview of the SSD Carrier Card NIM (NIM-SSD)

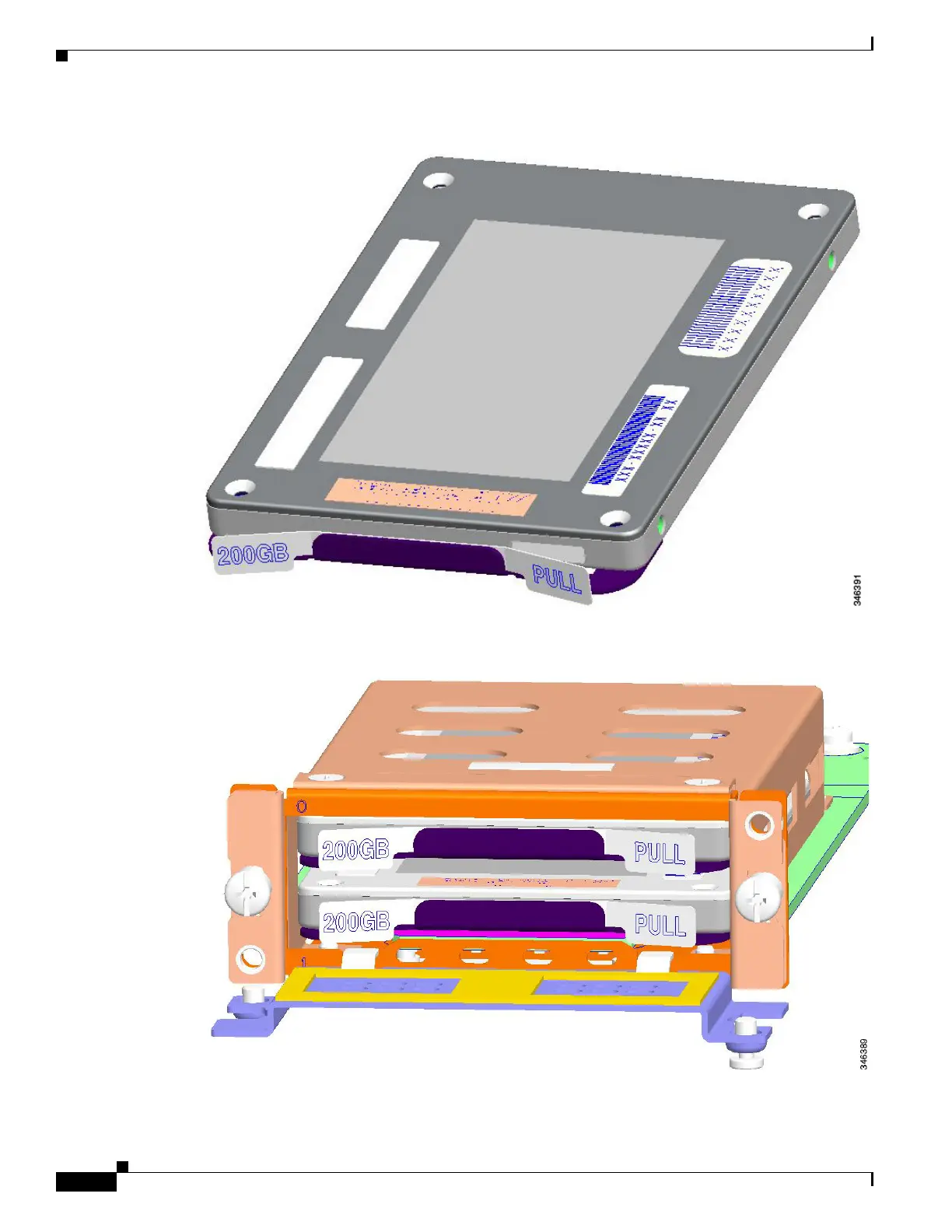

Figure 5-10 Solid State Drive

Figure 5-11 NIM-SSD with Two Solid State Drives
