Chapter 5 Install and Upgrade Internal Modules and FRUs
Install and Remove DDR DIMMs on Cisco 4400 or 4300 Series ISRs

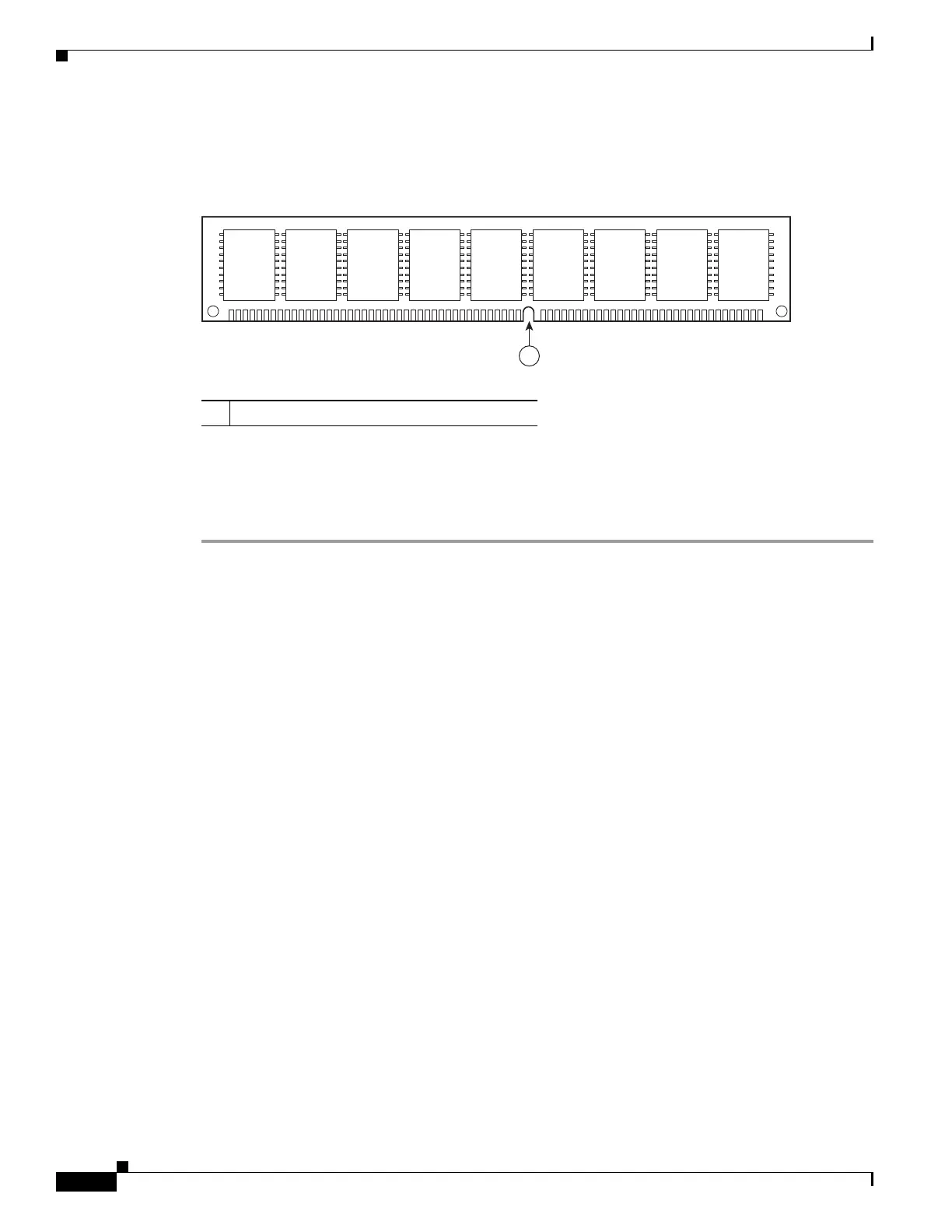

DIMMs have a polarization notch on the mating edge to prevent incorrect insertion. Figure 5-21 shows
the polarization notch on a DIMM.
Figure 5-21 DIMM Showing Polarization Notch
Remove DIMM
To remove a DIMM:
Step 1 Read the “Safety Warnings” section on page 5-2 section and disconnect the power supply before you
replace any module.
Step 2 Remove the chassis cover. See the “Remove and Replace Chassis Cover” section on page 5-4.
Step 3 Locate the DIMM module. See the “Locate Internal and External Slots for Modules on Cisco 4451 ISR”
section on page 5-8 to find the DIMM sockets on the router.
1 Polarization notch
250944
1
