Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers

OL-32185-02

Chapter 5 Install and Upgrade Internal Modules and FRUs

Remove and Install a CompactFlash Memory Card or eMMC Flash Card

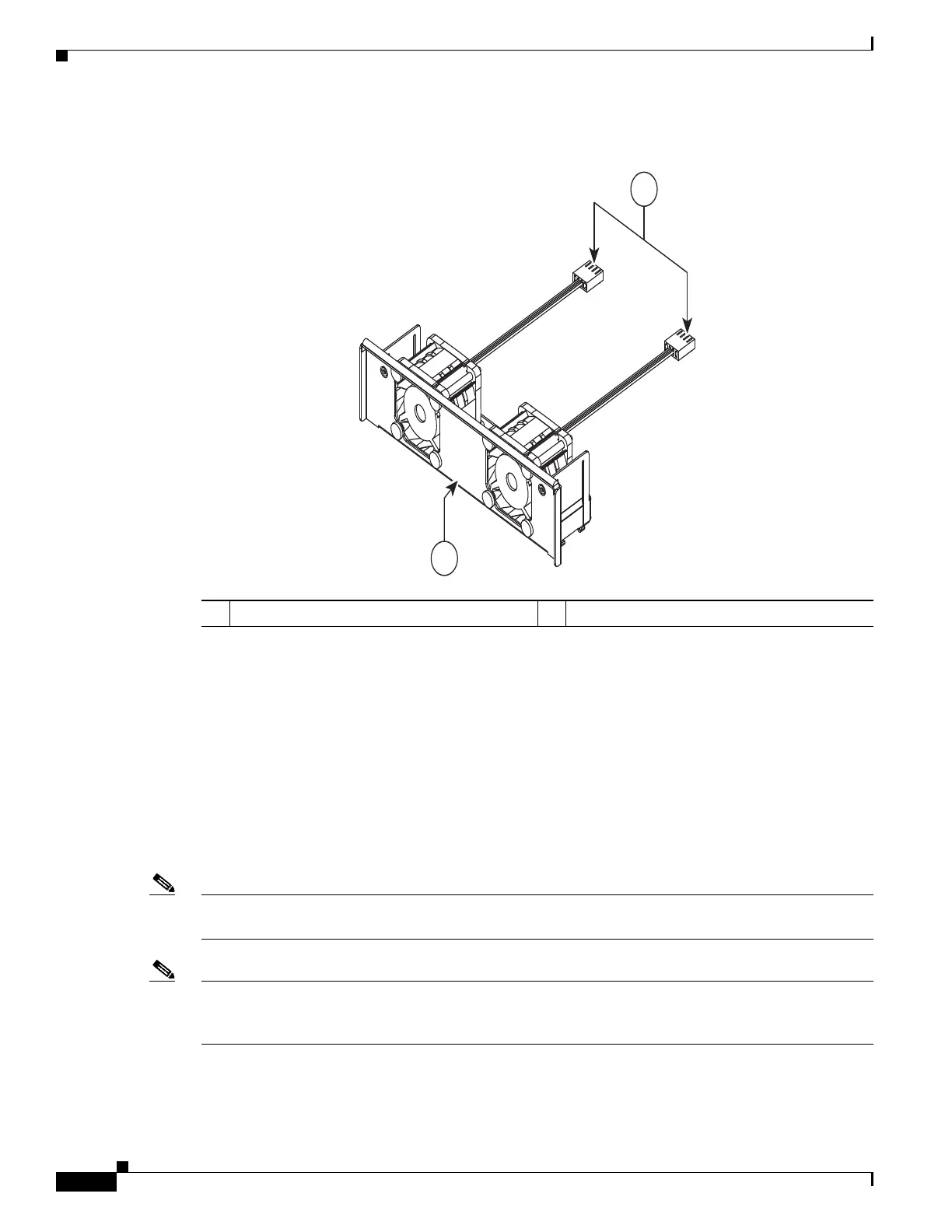

Figure 5-53 Cisco 4331 ISR Fan Tray

Remove and Install a CompactFlash Memory Card or eMMC

Flash Card

This section describes installing and replacing CompactFlash (CF) or eMMC memory cards in the router.

It contains the following sections:

• Prevent Electrostatic Discharge Damage, page 5-67

• Remove the CompactFlash or eMMC Memory Card, page 5-67

• Install the CompactFlash or eMMC Memory Card, page 5-68

Note You must turn off the power supply to the router to replace a CompactFlash Memory card. A

CompactFlash memory card must be inserted in order to run a Cisco IOS XE software image

Note Depending on the model that you have purchased, the routers use a CompactFlash, or an eUSB flash for

the internal bootflash memory. Cisco 4431 ISRs have a eMMC flash device. The device supports 8GB,

16GB, or 32 GB.

364661

1 Fan tray 2 Fan connectors
