Cisco 4000 Series User Manual

5-28
Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 5 Install and Upgrade Internal Modules and FRUs
Install and Remove DDR DIMMs on Cisco 4400 or 4300 Series ISRs

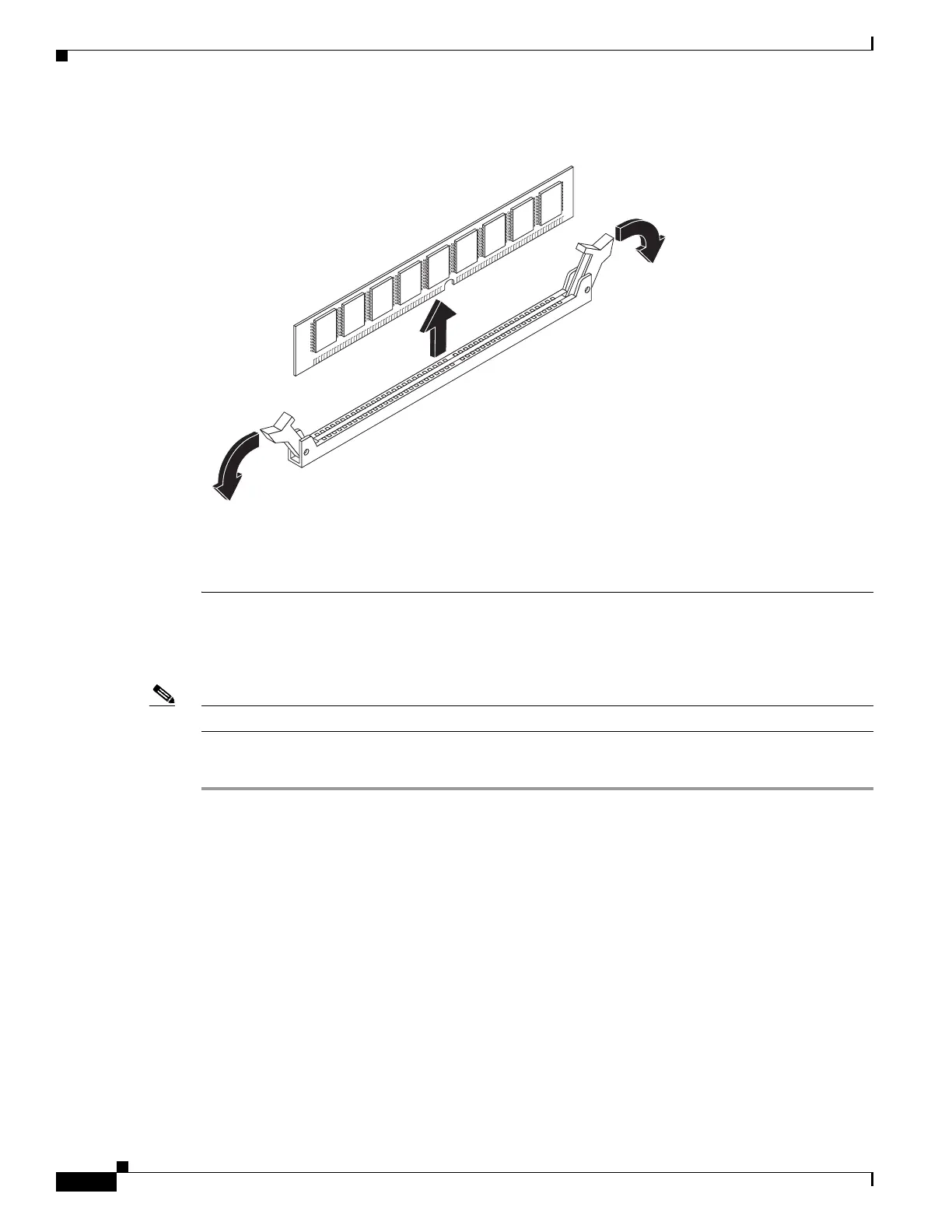

Figure 5-22 Remove a DIMM
Step 5
Place the DIMM in an antistatic bag to protect it from ESD damage.
Step 6 Replace the chassis cover. See the “Remove and Replace Chassis Cover” section on page 5-4..
Install DIMM
Note The DIMMS on the Cisco 4400 Series ISRand Cisco 4300 Series ISR are not interchangeable.
To install a DIMM:
Step 1 Read the “Safety Warnings” section on page 5-2 section and disconnect the power supply before you
replace any module.
Step 2 Remove the chassis cover. For the Cisco 4451-X ISRs, see the “Remove and Replace Chassis Cover”
section on page 5-4.
Step 3 Locate the DIMM module. See the “Locate Internal and External Slots for Modules on Cisco 4451 ISR”
section on page 5-8 to find the DIMM sockets on the router.
Step 4 Make sure that both latches on the DIMM connector are in the open position.
Step 5 Orient the DIMM so that the polarization notch lines up with the polarization key on the connector. See
Figure 5-23.
250945
