Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views
Figure 1-18 LEDs on Cisco 4351 ISR
For detailed information on LEDs, see the “LED Indicators” section on page 1-29.
Platform Summary

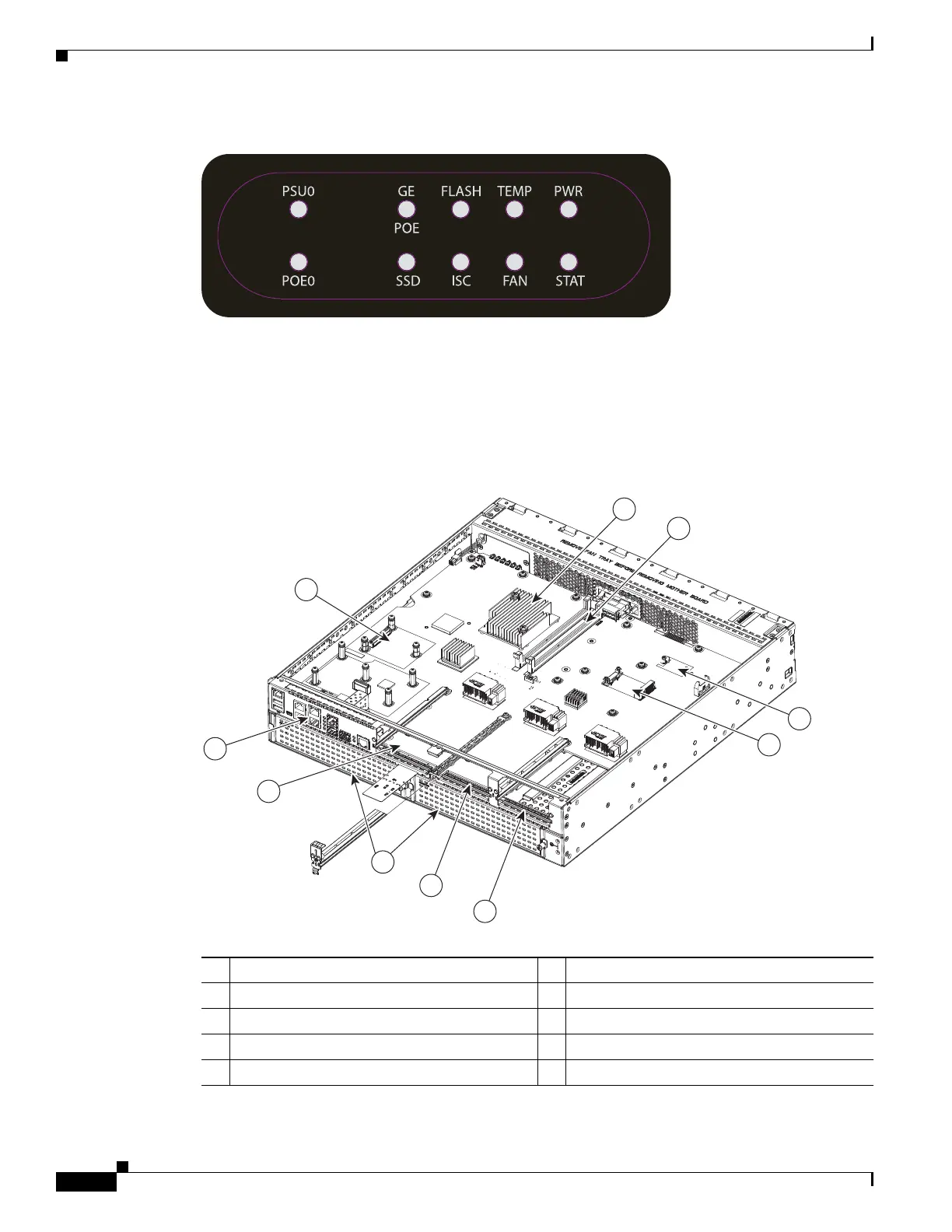

Figure 1-19 shows the internal view of Cisco 4351 ISR chassis with parts and module locations.
Figure 1-19 Platform Summary of Cisco 4351 ISR Chassis
391466
1 CPU 2 DIMMs
3 Flash memory card connector 4 SSD mSATA connector
5 NIM slot 3 6 NIM slot 2
7 SM-X slots 8 NIM slot 1
9 RJ-45 GE ports 10 ISC slot
391829
7
5
8
6
9
10
1
2
3
4
