DETAILED STEPS
Step 1
Turn off the circuit breaker from the power source.
Step 2
At the rear of the router, ensure that the power switch is in the Standby position.
It is not required to place the power switch in the Standby position if you want to hot-swap a single power
supply.
Note
Step 3
Unscrew the two terminal block wire connectors (negative and positive) on the unit. See the below figure.
Step 4
Press the retaining latch towards the pull handle, grasp the handle with one hand, and pull the power supply out of the
slot while supporting the weight of the power supply with the other hand. See the below figure.

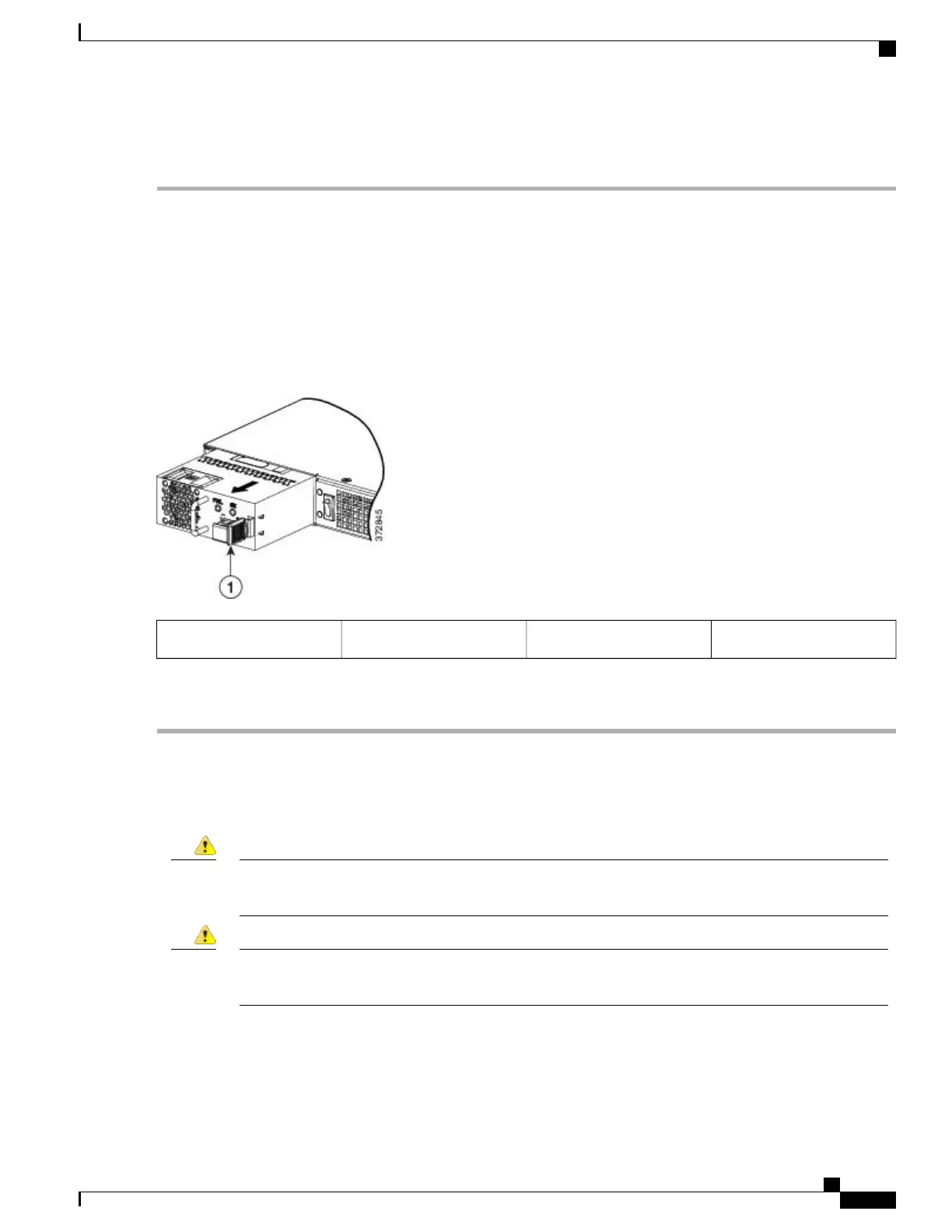

Figure 13: Removing DC Power Supply
Retaining latch1
This completes the procedure for removing a DC power supply from the Cisco ASR 1001-X Router.
Installing DC Input Power on the Cisco ASR 1001-X Router
Before performing any of the following procedures, ensure that power is removed from the DC circuit.
Statement 1003
Danger
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Danger
This section describes how to install the DC power supply input power leads to the Cisco ASR 1001-X Router
DC input power supply. Before you begin, read these important notices:
•
The color coding of the DC input power supply leads depends on the color coding of the DC power
source at your site. Ensure that the lead color coding you choose for the DC input power supply matches
Cisco ASR 1001-X Router Hardware Installation Guide
97
Removing and Replacing FRUs from the Cisco ASR 1001-X Router
Installing DC Input Power on the Cisco ASR 1001-X Router

Cisco ASR 1001-X Specifications

General

Product color	Gray
Rack capacity	1U
Rack mounting	Yes
Networking standards	-
Ethernet LAN (RJ-45) ports	6
Installed SFP modules quantity	2
Flash memory	1024 MB
Internal memory	8192 MB
Processor cores	4
AC input voltage	85 - 264 V
Power source type	AC
Power consumption (typical)	250 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	AES

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	10590 g
