Cisco ASR 1001-X User Manual

CON—One
RJ-45/RS-232 compatible
console port
10Six built-in 1 GE
SFP-only interfaces (do
not support SFP+), and
two built-in 10 GE SFP+
interfaces (support only
10-GE rate)
4
CRIT LED—Critical
alarm indicator
MAJ LED—Major alarm
indicator
MIN LED—Minor alarm
indicator
11
AUX—One
RJ-45/RS-232 compatible
auxiliary port
5
STAT—Status LED
12
MGMT—One RJ-45
10/100/1000 management
Ethernet port. The
management port has two
LEDs, L and S. L green
indicates Link operations.
S blinks the negotiated
Ethernet speed (1 blink
equals 10 Mbps, 2 blinks
equals 100 Mbps, 3 blinks
equals 1 000 Mbps).
6
Cisco ASR 1001-X Router LEDs

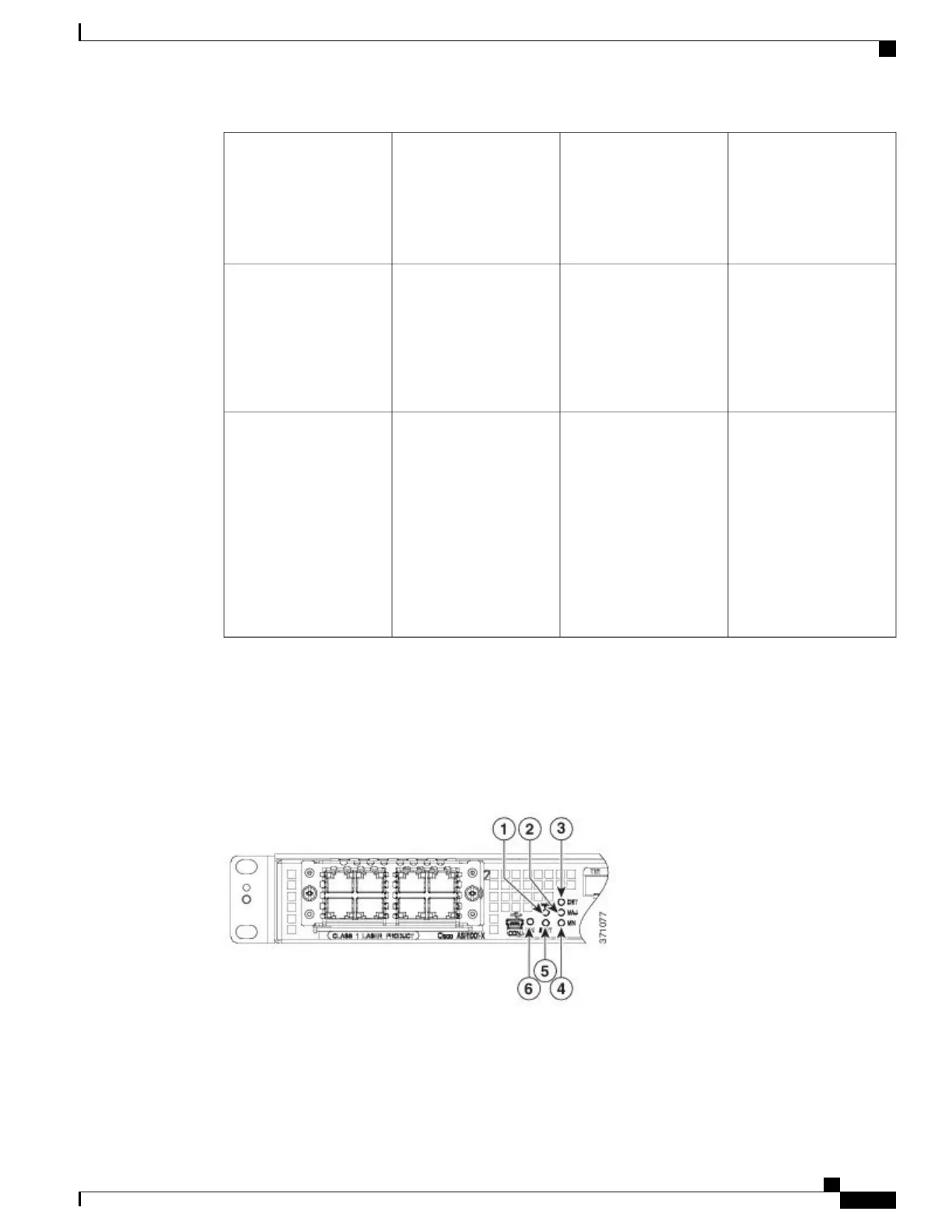

The following figure shows the front panel of the Cisco ASR 1001-X Router.
Figure 2: Common LEDs for the Cisco ASR 1001-X Router
Cisco ASR 1001-X Router Hardware Installation Guide
3
Cisco ASR 1001-X Router Overview
Cisco ASR 1001-X Router LEDs

Cisco ASR 1001-X Specifications

General

Product color	Gray
Rack capacity	1U
Rack mounting	Yes
Networking standards	-
Ethernet LAN (RJ-45) ports	6
Installed SFP modules quantity	2
Flash memory	1024 MB
Internal memory	8192 MB
Processor cores	4
AC input voltage	85 - 264 V
Power source type	AC
Power consumption (typical)	250 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	AES

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	10590 g
