V
erify
that
the
cable
tray
can
be
lifted
upward
and
secured
without
pinching
any
of
the
network
cables.
If
necessary
increase
the
slack
in
a
bundle
to
avoid
damaging
the
cables.
Important
The
figure
and
table
below
show
the
recommended
sequence
for
routing
cables
to
the
MIO/UMIOs
in
slots
5
and
6.

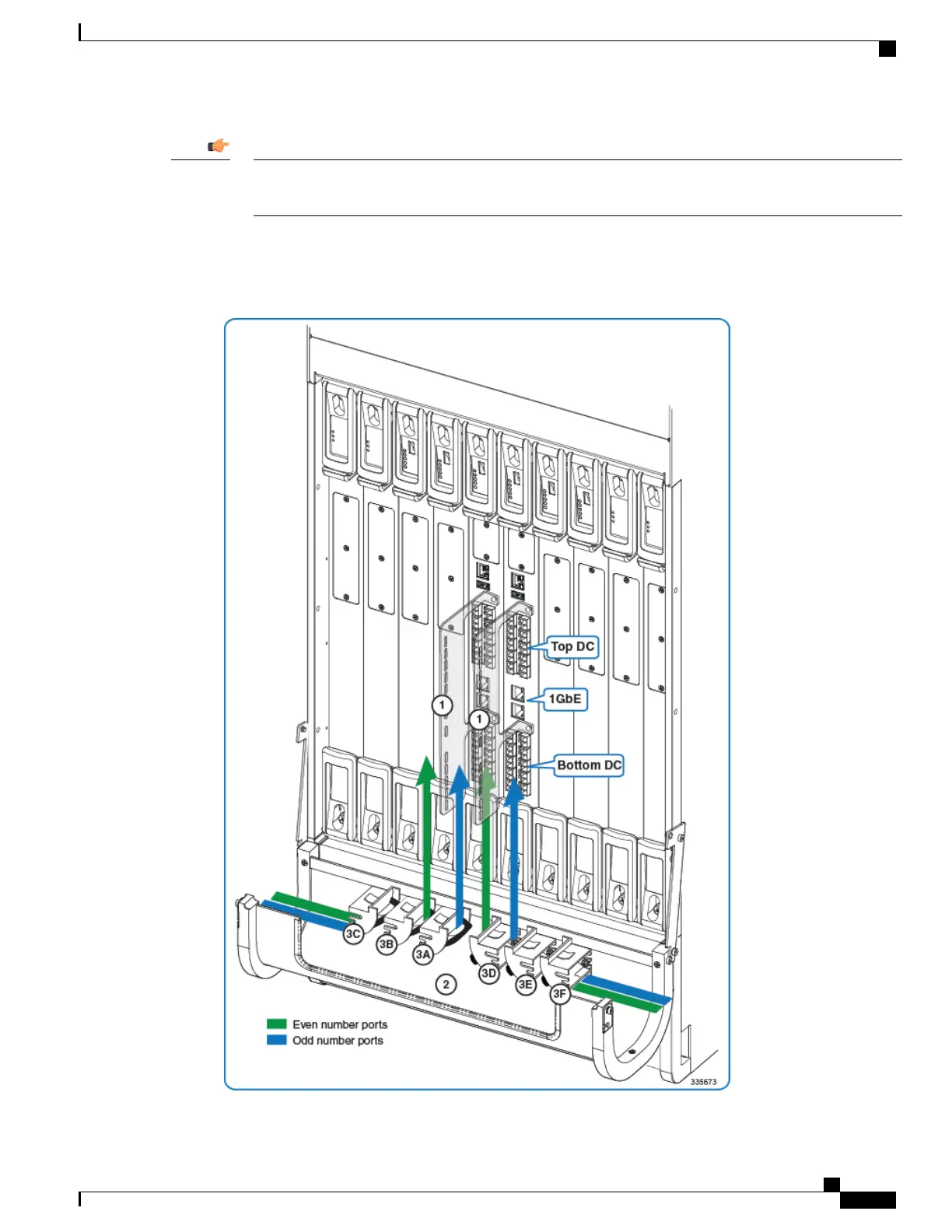

Figure 36: CMS Cable Routing
ASR 5500 Installation Guide
163
Cable Management System Installation
Routing and Securing Network Cables
178
180
