USB to DB9 Adapter

A USB to Serial DB9 adapter is supplied with each MIO/UMIO. The DB9 connector on the adapter is male

and can be used in conjunction with the Console RJ45 Cable and DB9 Adapter to connect a laptop or

workstation to the RJ45 port on the MIO/UMIO.

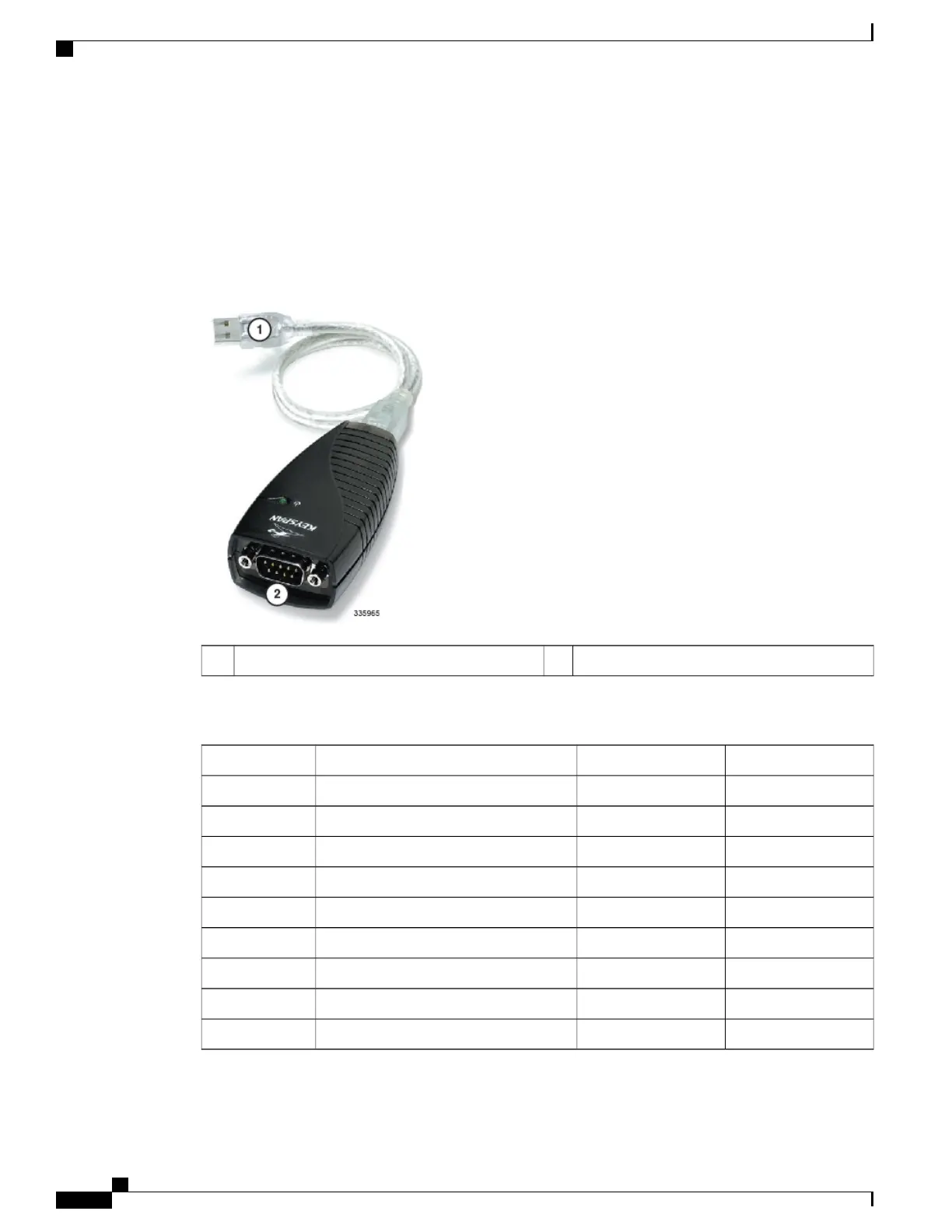

Figure 16: USB to Serial DB9 Adapter

DB9 connector (male)2USB 1.1 Type B connector1

Table 11: USB to DB9 Adapter - DB9 Pinouts

Console PortSignal typeSignal DescriptionDB9 Pin

UnusedInputData Carrier Detect (DCD)1

TXInputReceive Data (RX)2

RXOutputTransmit Data (TX)3

UnusedOutputData Terminal Ready (DTR)4

GroundGroundSignal Ground (SGND)5

UnusedInputData Set Ready (DSR)6

UnusedOutputRequest To Send (RTS)7

UnusedInputClear To Send (CTS)8

UnusedInputRing Indicator (RI)9
