Step 2

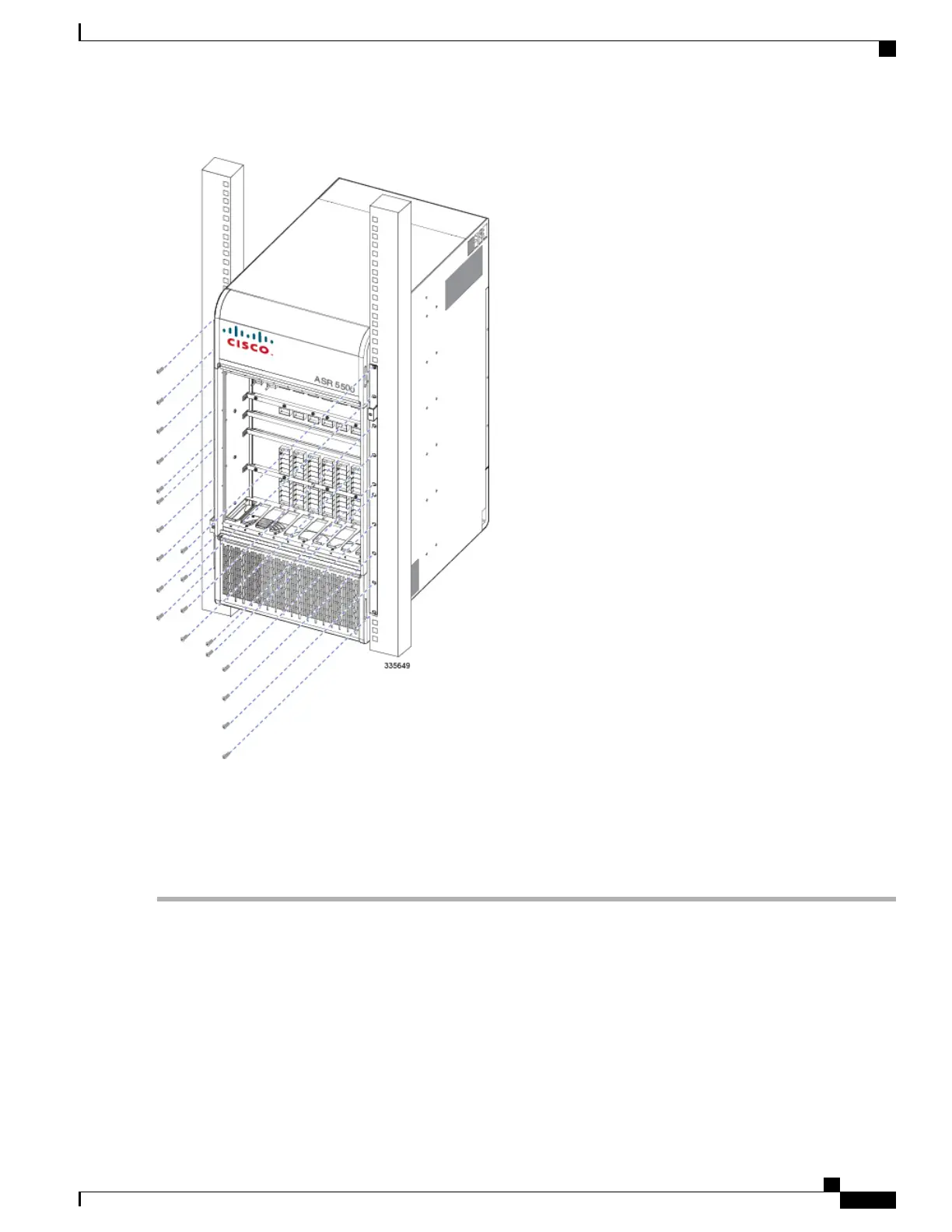

Mount the chassis to the rack rails using the OEM hardware that was supplied with the equipment rack. Begin with the

two bottom holes and work your way up until all holes on each flange are secured.

Step 3

Repeat step 1 and step 2 if you are installing an additional chassis in the equipment rack/cabinet.

Step 4

If you took steps to reduce the weight of the chassis prior to installation, refer to Re-Installing Chassis Components, on

page 45. Otherwise, proceed to Grounding the Chassis, on page 43.

ASR 5500 Installation Guide

Chassis Installation

Mounting the Chassis

Default Chapter3
