When you enable dynamic ARP inspection on the switch, policers that were configured to police ARP
traffic are no longer effective. The result is that all ARP traffic is sent to the CPU.
•
In the presence of vlan-bridging & IP device tracking, the cross-stack ARP packet forwarding will not
work.
Understanding Dynamic ARP Inspection
ARP provides IP communication within a Layer 2 broadcast domain by mapping an IP address to a MAC
address. For example, Host B wants to send information to Host A but does not have the MAC address of
Host A in its ARP cache. Host B generates a broadcast message for all hosts within the broadcast domain to
obtain the MAC address associated with the IP address of Host A. All hosts within the broadcast domain
receive the ARP request, and Host A responds with its MAC address. However,because ARP allows a gratuitous
reply from a host even if an ARP request was not received, an ARP spoofing attack and the poisoning of ARP
caches can occur. After the attack, all traffic from the device under attack flows through the attacker’s computer
and then to the router, switch, or host.
A malicious user can attack hosts, switches, and routers connected to your Layer 2 network by poisoning the
ARP caches of systems connected to the subnet and by intercepting traffic intended for other hosts on the
subnet. Figure 26-1 shows an example of ARP cache poisoning.

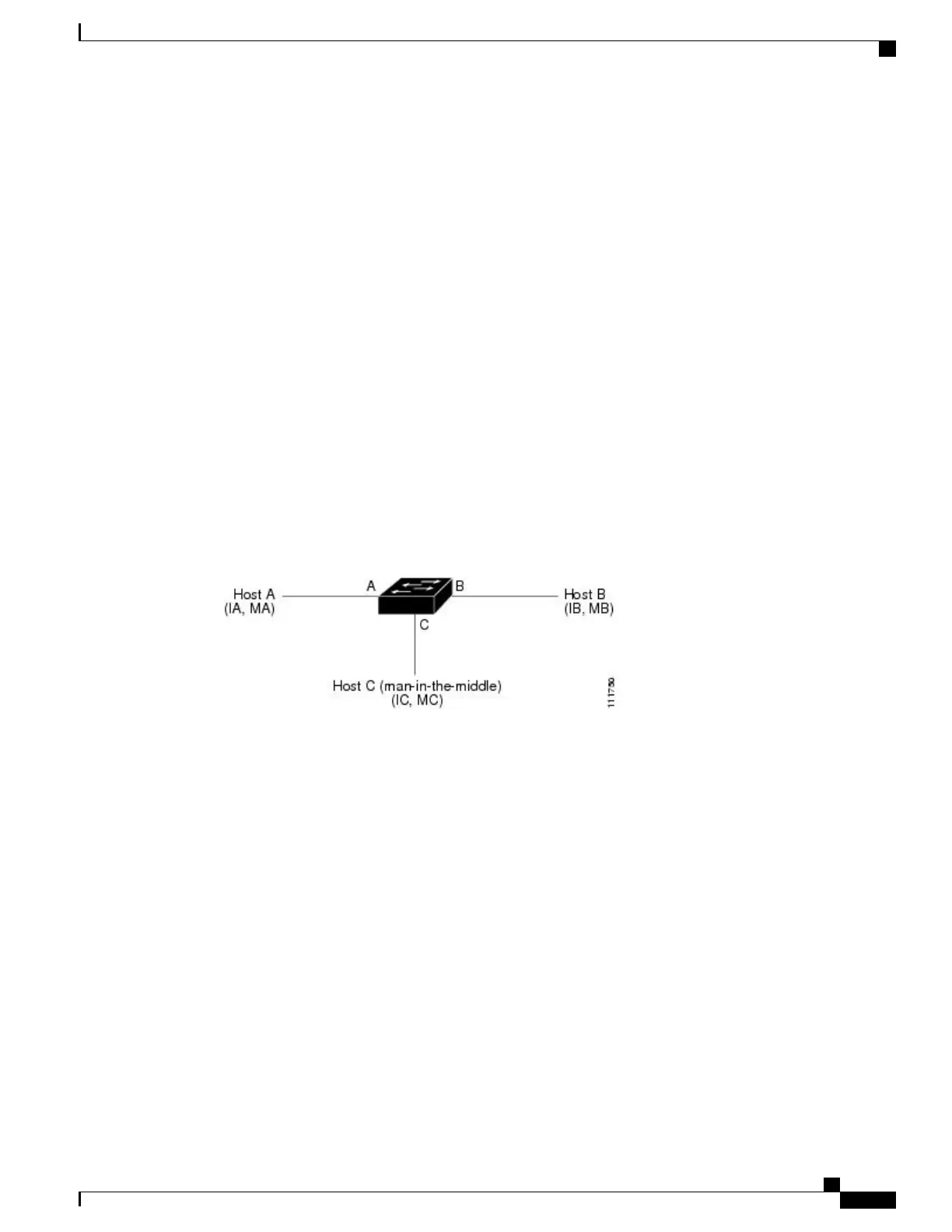

Figure 16: ARP Cache Poisoning
Hosts A, B, and C are connected to the switch on interfaces A, B and C, all of which are on the same subnet.
Their IP and MAC addresses are shown in parentheses; for example, Host A uses IP address IA and MAC
address MA. When Host A needs to communicate to Host B at the IP layer, it broadcasts an ARP request for
the MAC address associated with IP address IB. When the switch and Host B receive the ARP request, they
populate their ARP caches with an ARP binding for a host with the IP address IA and a MAC address MA;
for example, IP address IA is bound to MAC address MA. When Host B responds, the switch and Host A
populate their ARP caches with a binding for a host with the IP address IB and the MAC address MB.
Host C can poison the ARP caches of the switch, Host A, and Host B by broadcasting forged ARP responses
with bindings for a host with an IP address of IA (or IB) and a MAC address of MC. Hosts with poisoned
ARP caches use the MAC address MC as the destination MAC address for traffic intended for IA or IB. This
means that Host C intercepts that traffic. Because Host C knows the true MAC addresses associated with IA
and IB, it can forward the intercepted traffic to those hosts by using the correct MAC address as the destination.
Host C has inserted itself into the traffic stream from Host A to Host B, the classic man-in-the middleattack.
Dynamic ARP inspection is a security feature that validates ARP packets in a network. It intercepts, logs,and
discards ARP packets with invalid IP-to-MAC address bindings. This capability protects the network from
certain man-in-the-middle attacks.
Dynamic ARP inspection ensures that only valid ARP requests and responses are relayed. The switch performs
these activities:
Catalyst 2960-X Switch Security Configuration Guide, Cisco IOS Release 15.0(2)EX
OL-29048-01 245
Configuring Dynamic ARP Inspection
Understanding Dynamic ARP Inspection

Cisco Catalyst 2960-X Specifications

General

Console port	RJ-45
USB 2.0 ports quantity	2
SFP module slots quantity	4
Installed SFP modules quantity	-
Gigabit Ethernet (copper) ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power source	AC
Input current	5 A
AC input voltage	100 - 240 V
Power consumption (typical)	60.9 W
Number of power supply units	1
Redundant power supply (RPS) support	Yes
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4000 m
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Switching protocols	UDP, TCP, RADIUS/TACACS+
Number of VLANs	1023
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Throughput	107.1 Mpps
Jumbo frames	9216
Number of queues	8
MAC address table	16000 entries
Number of static routes	1000
DHCP features	DHCP server
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SNMP, SSH
Access Control List (ACL) rules	3
Switch type	Managed
Switch layer	L2/L3
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Form factor	1U
Product color	Black
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet plus (PoE+) ports quantity	12
Memory type	DRAM
Noise level	39 dB
Flash memory	128 MB
Internal memory	512 MB
Processor frequency	600 MHz
Mean time between failures (MTBF)	276870 h

Weight and Dimensions

Depth	368 mm
Width	445 mm
Height	45 mm
Weight	5800 g
