the session. An Internet service provider might use a freeware-based version of RADIUS access control
and accounting software to meet special security and billing needs.

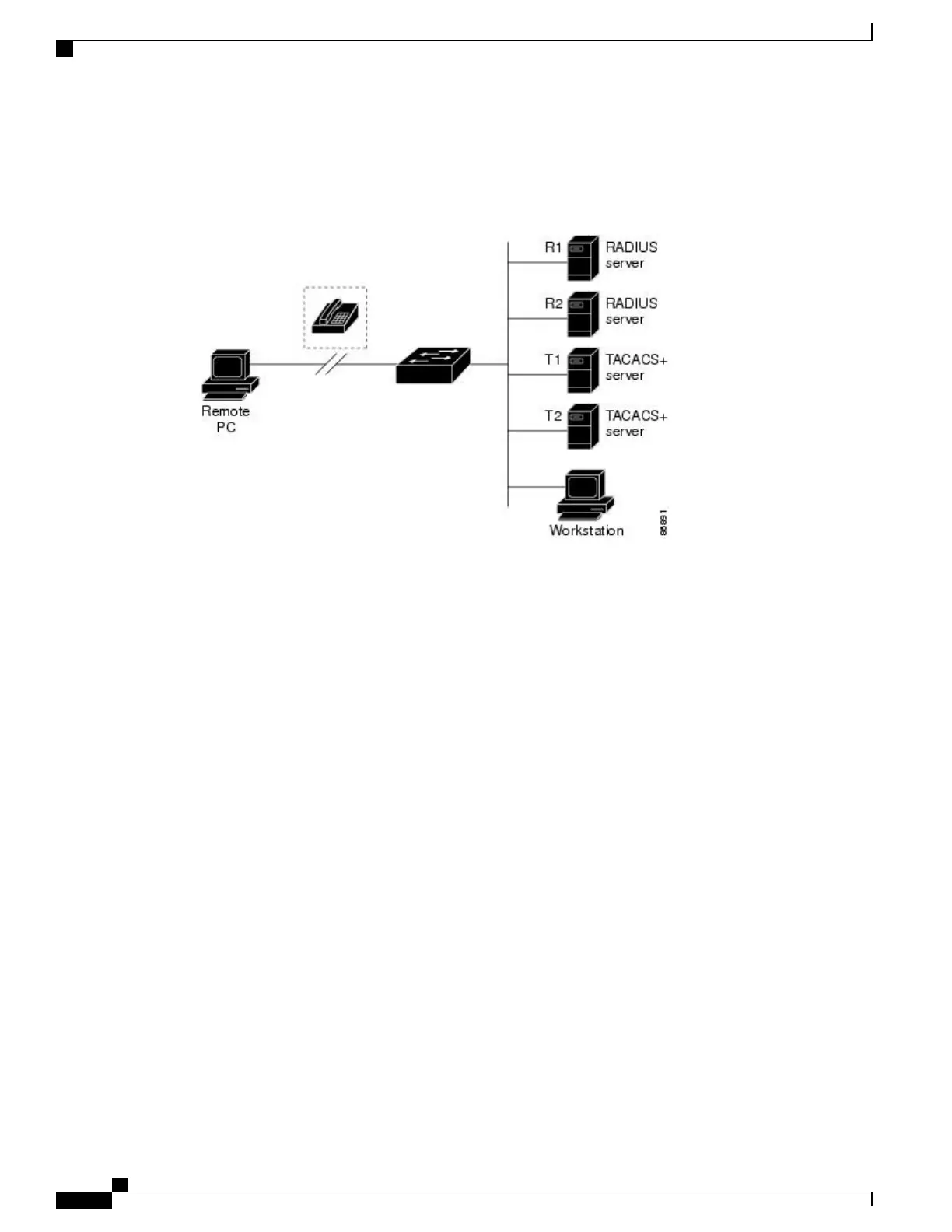

Figure 2: Transitioning from RADIUS to TACACS+ Services
Related Topics
Restrictions for Configuring RADIUS, on page 58
RADIUS Operation
When a user attempts to log in and authenticate to a Switch that is access controlled by a RADIUS server,
these events occur:
1
The user is prompted to enter a username and password.
2
The username and encrypted password are sent over the network to the RADIUS server.
3
The user receives one of the following responses from the RADIUS server:
• ACCEPT—The user is authenticated.
• REJECT—The user is either not authenticated and is prompted to re-enter the username and password,
or access is denied.
• CHALLENGE—A challenge requires additional data from the user.
• CHALLENGE PASSWORD—A response requests the user to select a new password.
The ACCEPT or REJECT response is bundled with additional data that is used for privileged EXEC or
network authorization. The additional data included with the ACCEPT or REJECT packets includes these
items:
•
Telnet, SSH, rlogin, or privileged EXEC services
•
Connection parameters, including the host or client IP address, access list, and user timeouts
Catalyst 2960-X Switch Security Configuration Guide, Cisco IOS Release 15.0(2)EX
60 OL-29048-01
Configuring RADIUS
RADIUS Operation

Cisco Catalyst 2960-X Specifications

General

Console port	RJ-45
USB 2.0 ports quantity	2
SFP module slots quantity	4
Installed SFP modules quantity	-
Gigabit Ethernet (copper) ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power source	AC
Input current	5 A
AC input voltage	100 - 240 V
Power consumption (typical)	60.9 W
Number of power supply units	1
Redundant power supply (RPS) support	Yes
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4000 m
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Switching protocols	UDP, TCP, RADIUS/TACACS+
Number of VLANs	1023
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Throughput	107.1 Mpps
Jumbo frames	9216
Number of queues	8
MAC address table	16000 entries
Number of static routes	1000
DHCP features	DHCP server
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SNMP, SSH
Access Control List (ACL) rules	3
Switch type	Managed
Switch layer	L2/L3
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Form factor	1U
Product color	Black
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet plus (PoE+) ports quantity	12
Memory type	DRAM
Noise level	39 dB
Flash memory	128 MB
Internal memory	512 MB
Processor frequency	600 MHz
Mean time between failures (MTBF)	276870 h

Weight and Dimensions

Depth	368 mm
Width	445 mm
Height	45 mm
Weight	5800 g
