For example, the following AV pair causes Cisco’s “multiple named IP address pools” feature to be activated
during IP authorization (during PPP’s Internet Protocol Control Protocol (IPCP) address assignment):
cisco-avpair= ”ip:addr-pool=first“
If you insert an “*”, the AV pair “ip:addr-pool=first” becomes optional. Note that any AV pair can be made
optional:
cisco-avpair= ”ip:addr-pool*first“
The following example shows how to cause a user logging in from a network access server to have immediate
access to EXEC commands:
cisco-avpair= ”shell:priv-lvl=15“
Other vendors have their own unique vendor-IDs, options, and associated VSAs. For more information about
vendor-IDs and VSAs, see RFC 2138, “Remote Authentication Dial-In User Service (RADIUS).”
Attribute 26 contains the following three elements:
•
Type
•
Length
•
String (also known as data)
•
Vendor-Id
•
Vendor-Type
•
Vendor-Length
•
Vendor-Data

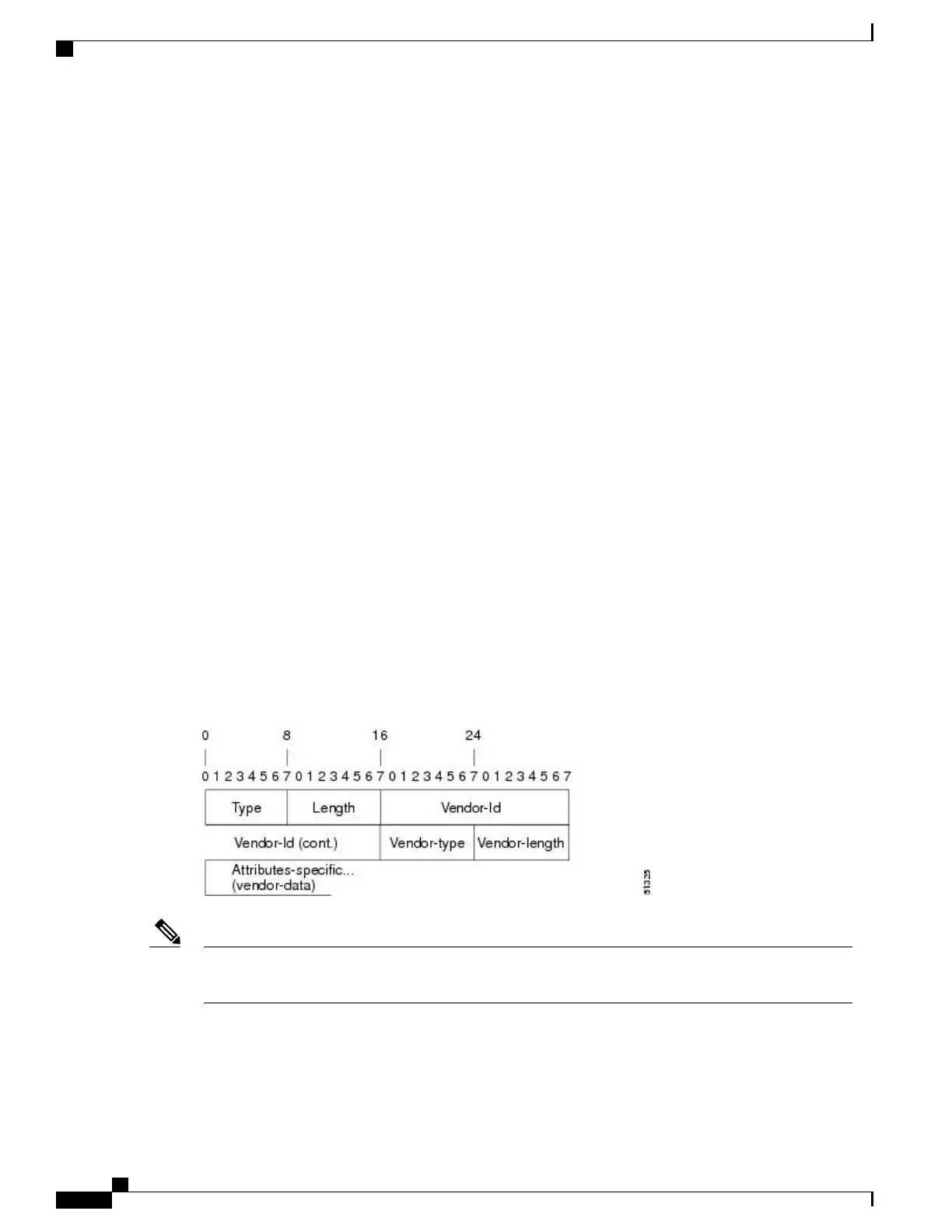

The figure below shows the packet format for a VSA encapsulated “behind” attribute 26.
Figure 3: VSA Encapsulated Behind Attribute 26
It is up to the vendor to specify the format of their VSA. The Attribute-Specific field (also known as
Vendor-Data) is dependent on the vendor's definition of that attribute.
Note
The table below describes significant fields listed in the Vendor-Specific RADIUS IETF Attributes table
(second table below), which lists supported vendor-specific RADIUS attributes (IETF attribute 26).
Catalyst 2960-X Switch Security Configuration Guide, Cisco IOS Release 15.0(2)EX
72 OL-29048-01
Configuring RADIUS
Vendor-Specific RADIUS Attributes

Cisco Catalyst 2960-X Specifications

General

Console port	RJ-45
USB 2.0 ports quantity	2
SFP module slots quantity	4
Installed SFP modules quantity	-
Gigabit Ethernet (copper) ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power source	AC
Input current	5 A
AC input voltage	100 - 240 V
Power consumption (typical)	60.9 W
Number of power supply units	1
Redundant power supply (RPS) support	Yes
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4000 m
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Switching protocols	UDP, TCP, RADIUS/TACACS+
Number of VLANs	1023
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Throughput	107.1 Mpps
Jumbo frames	9216
Number of queues	8
MAC address table	16000 entries
Number of static routes	1000
DHCP features	DHCP server
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SNMP, SSH
Access Control List (ACL) rules	3
Switch type	Managed
Switch layer	L2/L3
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Form factor	1U
Product color	Black
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet plus (PoE+) ports quantity	12
Memory type	DRAM
Noise level	39 dB
Flash memory	128 MB
Internal memory	512 MB
Processor frequency	600 MHz
Mean time between failures (MTBF)	276870 h

Weight and Dimensions

Depth	368 mm
Width	445 mm
Height	45 mm
Weight	5800 g
