1-15
Catalyst 2960 Switch Hardware Installation Guide
OL-7075-09
Chapter 1 Product Overview
Front Panel Description

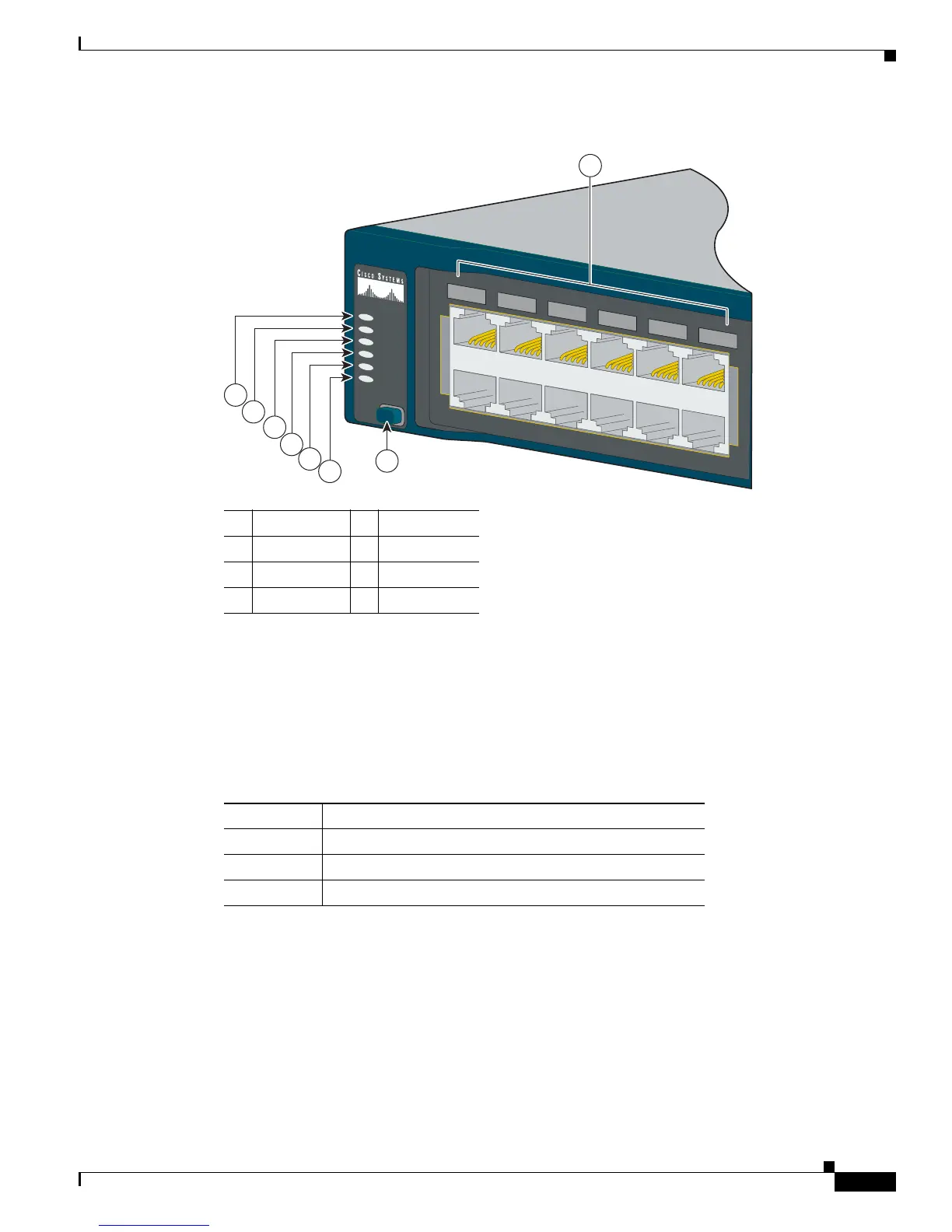

Figure 1-23 Catalyst 2960 Switch LEDs
System LED
The System LED shows whether the system is receiving power and is functioning properly. Table 1-2
lists the LED colors and their meanings.
1 SYST LED 5 Speed LED
2 RPS LED 6 PoE LED
1
1. The PoE LED is only on the Catalyst 2960
PoE switches.
3 Status LED 7 Mode button
4 Duplex LED 8 Port LEDs
204612
SYST
RPS
STAT
DUPLX
SPEED
PoE
MODE
1X
11X
1X
11X
1
2
3
4
5
6
7
8
9
10
11
12
5
6
4
8
1
2
3
7
Table 1-2 System LED
Color System Status
Off System is not powered on.
Green System is operating normally.
Amber System is receiving power but is not functioning properly.
