Chapter 1 Product Overview
Front Panel Description
Catalyst 2960-24PC-L, 2960-24PC-S, 2960-24LC-S, 2960-24TC-L, 2960-48TC-L, 2960-24LT-L, 2960-24TT-L,
2960-48TT-L, 2960-48PST-L, and 2960-48PST-S Switches
The 10/100 ports on the switches are grouped in pairs. The first member of the pair (port 1) is above the
second member (port 2), port 3 is above port 4, and so on.
The fixed 10/100 ports on the Catalyst 2960-24PC-L and 2960-24PC-S
switches are PoE ports.
See Figure 1-5 and Figure 1-6.
Ports 1 to 8 on the Catalyst 2960-24LC-S switch are PoE ports. See Figure 1-7.

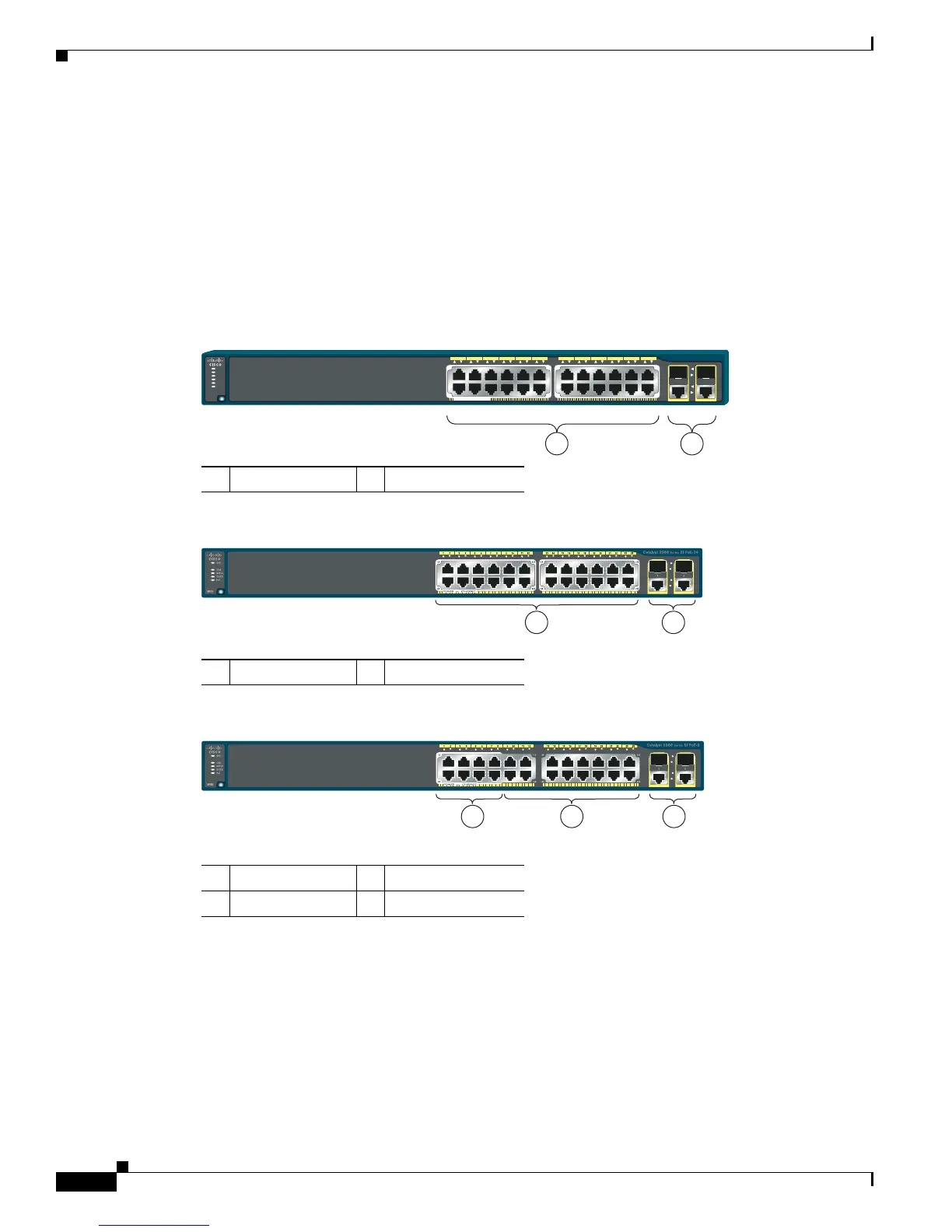

Figure 1-5 Catalyst 2960-24PC-L Switch Front Panel
Figure 1-6 Catalyst 2960-24PC-S Switch Front Panel
Figure 1-7 Catalyst 2960-24LC-S Switch Front Panel
1 10/100 PoE ports 2 Dual-purpose ports
Catalyst 2960 Series PoE-24
1 2
2X
1X
12X
11X
6 5 8 7 10 9 12 11 2 1 4 3
14X
13X
24X
23X
18 17 20 19 22 21 24 23 14 13 16 15
SYST
STAT
DUPLX
SPEED
RPS
PoE
MODE
POWER
OVER
ETHERNET
2
1
204641
1 10/100 PoE ports 2 Dual-purpose ports
206731
1 2
1 10/100 PoE ports 3 Dual-purpose ports
2 10/100 ports
206730
1 32

Cisco CATALYST 2960 Specifications

General

Manageable	Yes
Stacking	No
Model	Catalyst 2960 Series Switches
Power over Ethernet (PoE)	Available on some models (IEEE 802.3af)
VLANs	255 active VLANs
Features	QoS
Operating Temperature	32 to 113°F (0 to 45°C)
Relative Humidity	10% to 85% non-condensing
Power Consumption	Varies by model (30W to 400W)
