Chapter 2 Switch Installation (24- and 48-Port Switches)
Installing the Switch
Attaching the Cable Guide
We recommend that you attach the cable guide to prevent the cables from obscuring the front panel of
the switch and the other devices installed in the rack. Use the supplied black screw shown in Figure 2-9
to attach the cable guide to the left or right bracket.

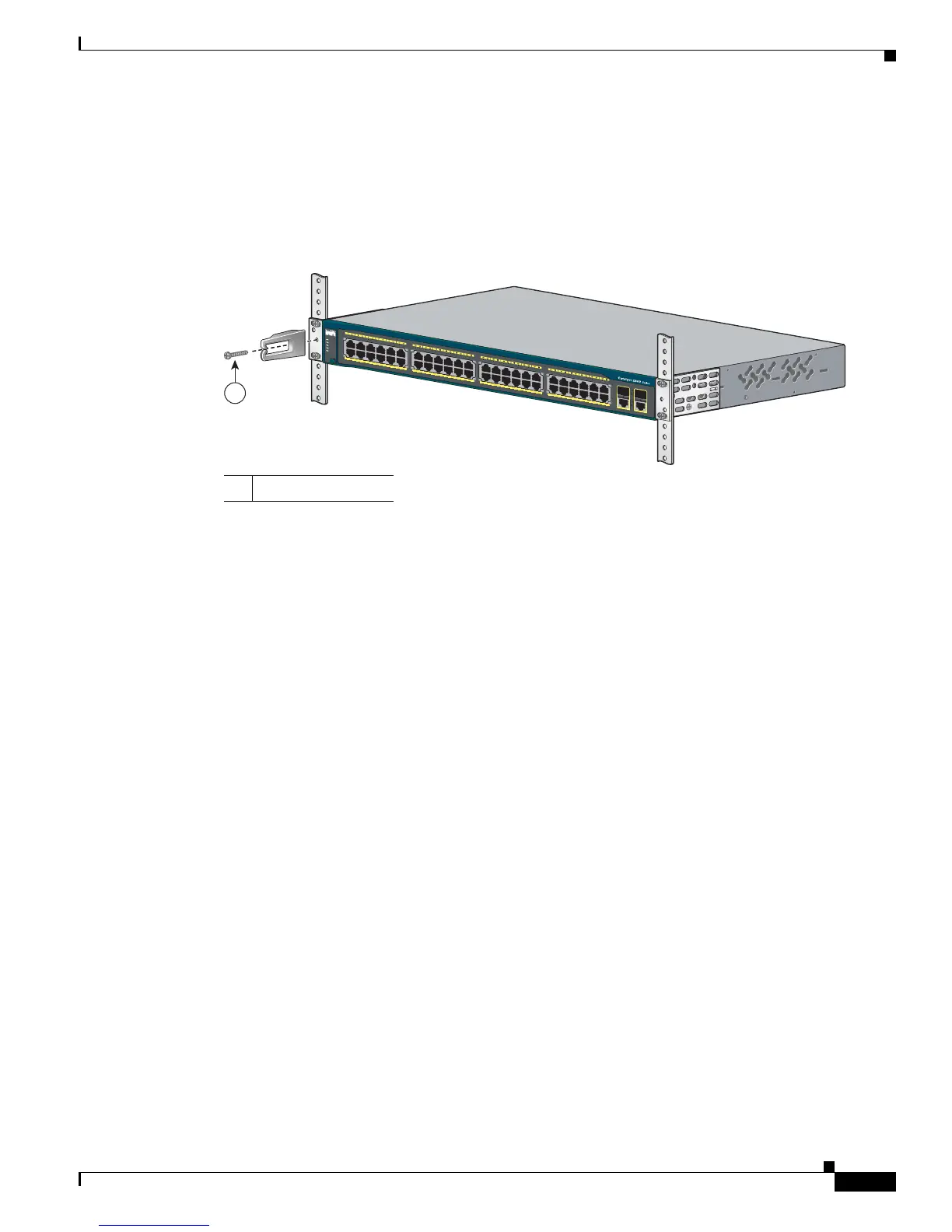

Figure 2-9 Attaching the Cable Guide on the Catalyst 2960 Switch
Wall-Mounting
This section does not apply to the Catalyst 2960 8-port switches. For information applicable to those
switches, see Chapter 3, “Switch Installation (8-Port Switches).”
To install the switch on a wall, follow the instructions in these sections:
• Attaching the Brackets to the Switch for Wall-Mounting, page 2-12
• Attaching the RPS Connector Cover, page 2-12
• Mounting the Switch on a Wall, page 2-13
1 Cable guide screw
1
204619
SYST
RPS
STAT
DUPLX
SPEED
MODE

Cisco CATALYST 2960 Specifications

General

Manageable	Yes
Stacking	No
Model	Catalyst 2960 Series Switches
Power over Ethernet (PoE)	Available on some models (IEEE 802.3af)
VLANs	255 active VLANs
Features	QoS
Operating Temperature	32 to 113°F (0 to 45°C)
Relative Humidity	10% to 85% non-condensing
Power Consumption	Varies by model (30W to 400W)
