1-4

Catalyst 2960 Switch Hardware Installation Guide

OL-7075-09

Chapter 1 Product Overview

Front Panel Description

These sections describe the switch front panels:

• Catalyst 2960 Switch 24- and 48-Port Switches, page 1-4

• Catalyst 2960 8-Port Switches, page 1-9

• 10/100 Ports, page 1-11

• 10/100/1000 Ports, page 1-11

• PoE Ports (Only Catalyst 2960 PoE Switches), page 1-12

• SFP Module Slots, page 1-13

• Dual-Purpose Port, page 1-13

• Power Input Port (Catalyst 2960PD-8TT-L Switch), page 1-13

• LEDs, page 1-14

• Cable Guard for the Catalyst 2960 8-Port Switches, page 1-19

Catalyst 2960 Switch 24- and 48-Port Switches

These sections describe the Catalyst 2960 24- and 48-port switches:

• Catalyst 2960-24-S, 2960-24TC-S, 2960-48TC-S, and 2960-48TT-S Switches, page 1-4

• Catalyst 2960-24PC-L, 2960-24PC-S, 2960-24LC-S, 2960-24TC-L, 2960-48TC-L, 2960-24LT-L,

2960-24TT-L, 2960-48TT-L, 2960-48PST-L, and 2960-48PST-S Switches, page 1-6

• Catalyst 2960G-24TC-L and Catalyst 2960G-48TC-L Switches, page 1-8

Catalyst 2960-24-S, 2960-24TC-S, 2960-48TC-S, and 2960-48TT-S Switches

The 10/100 ports on the Catalyst 2960-24-S switch are numbered as follows: The first member of the

pair (port 1) is above the second member (port 2), port 3 is above port 4, and so on. See Figure 1-1.

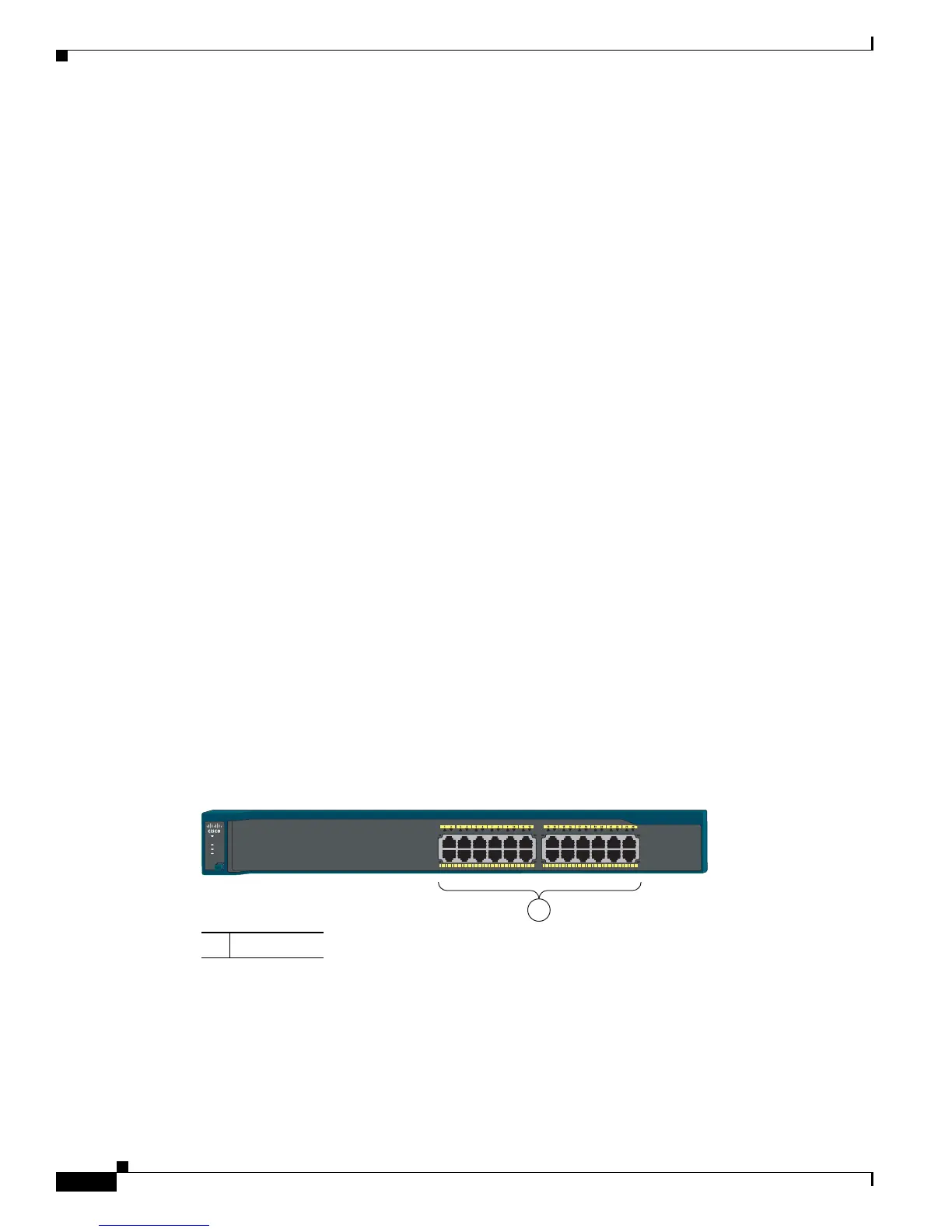

Figure 1-1 Catalyst 2960-24-S Switch Front Panel

The 10/100 ports on the Catalyst 2960-24TC-S and Catalyst 2960-48TC-S switches are numbered in the

same way as the Catalyst 2960-24T-S switch. These switches have dual-purpose ports, that is,

10/100/1000 ports 1 and 2 can use either the SFP module or the RJ-45 connector for that port, but not

1 10/100 ports

Catalyst 2960

Series SI

SYST

STAT

DUPLX

SPEED

MODE

204632

Manageable	Yes
Stacking	No
Model	Catalyst 2960 Series Switches
Power over Ethernet (PoE)	Available on some models (IEEE 802.3af)
VLANs	255 active VLANs
Features	QoS
Operating Temperature	32 to 113°F (0 to 45°C)
Relative Humidity	10% to 85% non-condensing
Power Consumption	Varies by model (30W to 400W)
