Cisco CATALYST 2960 Hardware Installation Guide

2-17
Catalyst 2960 Switch Hardware Installation Guide
OL-7075-09
Chapter 2 Switch Installation (24- and 48-Port Switches)
Installing and Removing SFP Modules

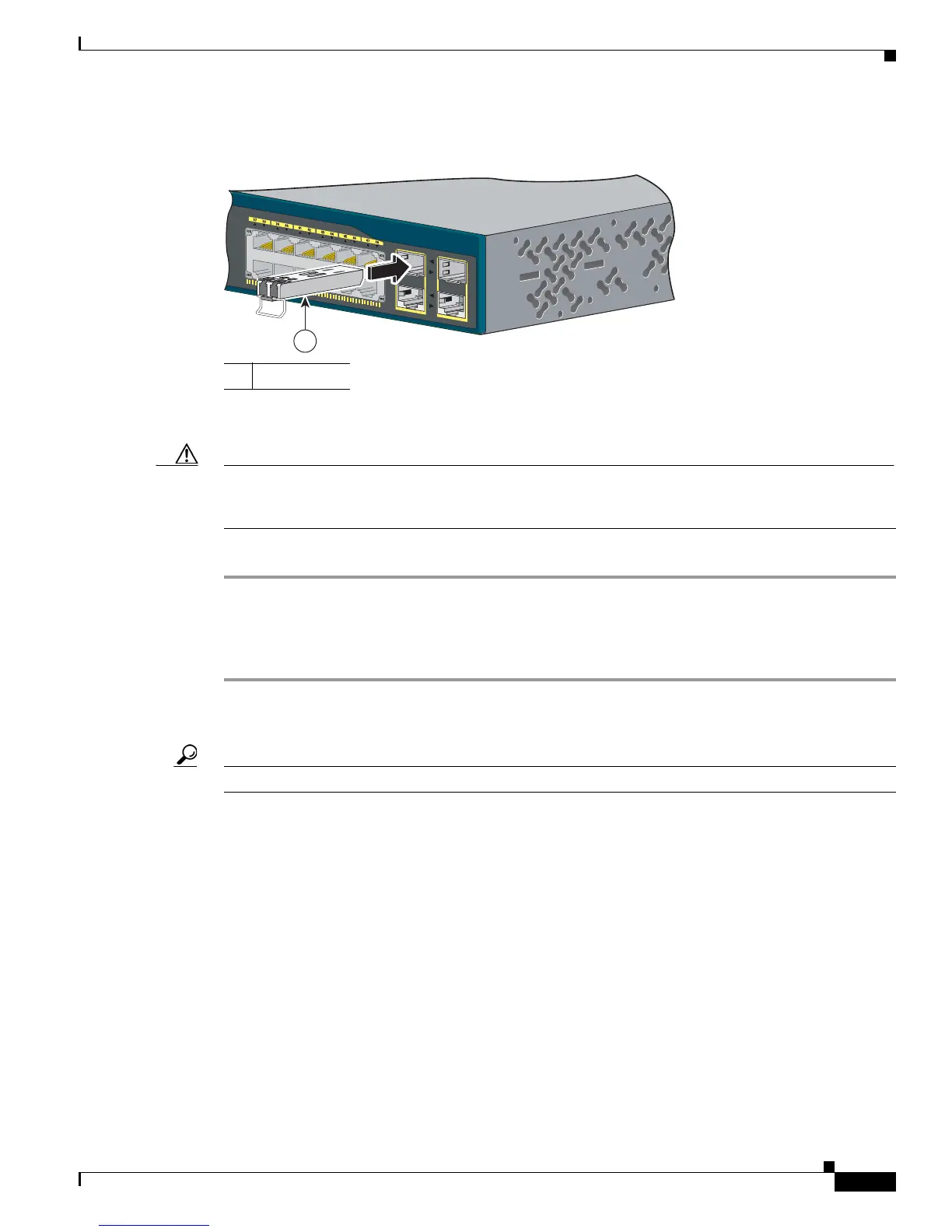

Figure 2-15 Installing an SFP Module into an SFP Module Slot
Step 5
Remove the dust plugs from the SFP module optical ports and store them for later use.
Caution Do not remove the dust plugs from the SFP module port or the rubber caps from the fiber-optic cable
until you are ready to connect the cable. The plugs and caps protect the SFP module ports and cables
from contamination and ambient light.
Step 6 Insert the LC cable connector into the SFP module.
Removing SFP Modules
Step 1 Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface on the chassis.
Step 2 Disconnect the LC connector from the SFP module.
Tip For reattachment, note which cable connector plug is send (TX) and which is receive (RX).
Step 3 Insert a dust plug into the optical ports of the SFP module to keep the optical interfaces clean.
Step 4 Unlock and remove the SFP module, as shown in Figure 2-16.
If the module has a bale-clasp latch, pull the bale out and down to eject the module. If the bale-clasp
latch is obstructed and you cannot use your index finger to open it, use a small, flat-blade screwdriver
or other long, narrow instrument to open the bale-clasp latch.
1 SFP module
1X
11X
Catalyst 2960
Series SI
2
1
1
204639

Cisco CATALYST 2960 Specifications

General

Manageable	Yes
Stacking	No
Model	Catalyst 2960 Series Switches
Power over Ethernet (PoE)	Available on some models (IEEE 802.3af)
VLANs	255 active VLANs
Features	QoS
Operating Temperature	32 to 113°F (0 to 45°C)
Relative Humidity	10% to 85% non-condensing
Power Consumption	Varies by model (30W to 400W)
