Cisco CATALYST 2960 Hardware Installation Guide

1-8
Catalyst 2960 Switch Hardware Installation Guide
OL-7075-09
Chapter 1 Product Overview
Front Panel Description

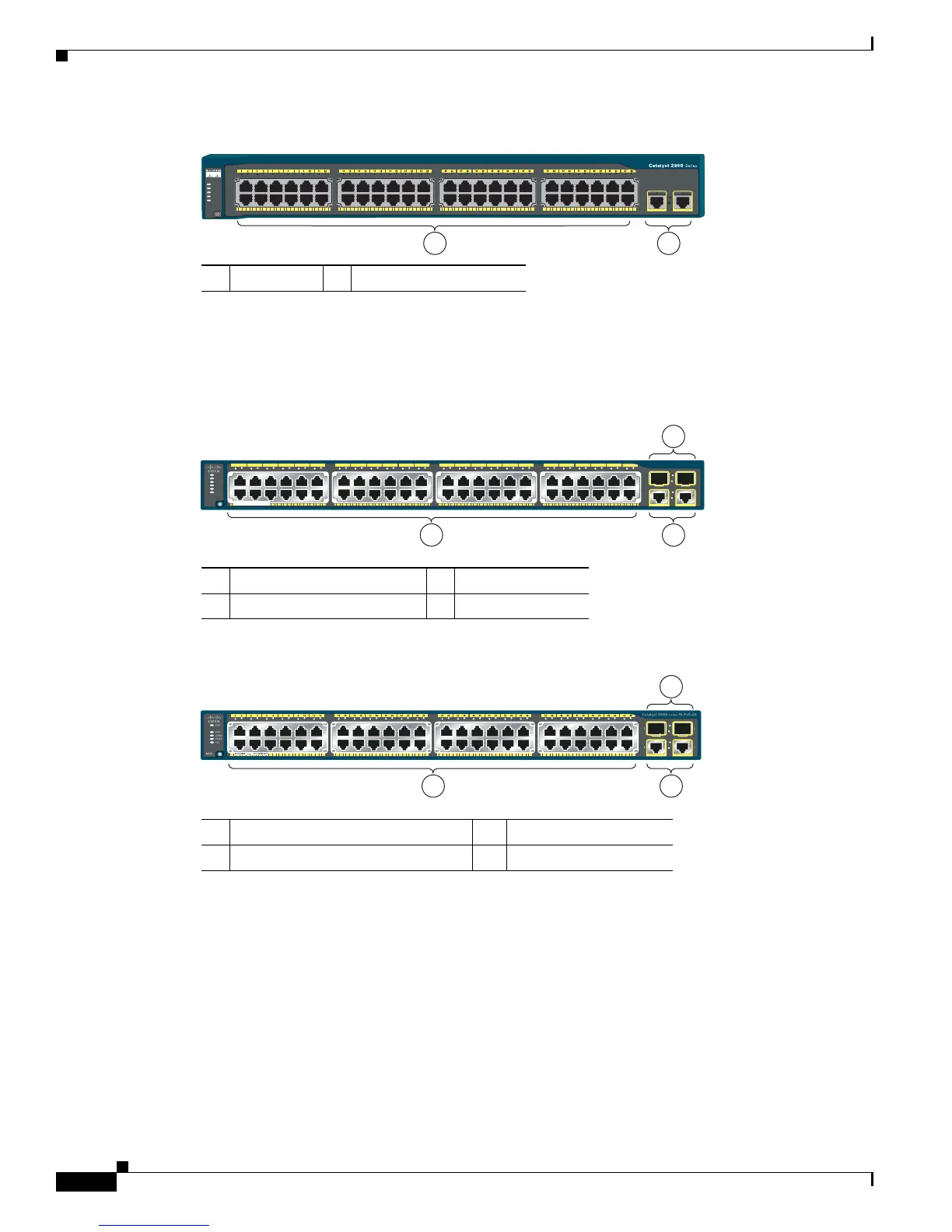

Figure 1-12 Catalyst 2960-48TT-L Switch Front Panel
The Catalyst 2960-48PST-L and 2960-48PST-S switches have two SFP module slots (numbered 1 and 2)
and two 10/100/1000 uplink ports (numbered 3 and 4). Ports 1 to 48 on the switch are PoE ports. See
Figure 1-13 and Figure 1-14.
Figure 1-13 Catalyst 2960-48PST-L Switch Front Panel
Figure 1-14 Catalyst 2960-48PST-S Switch Front Panel
Catalyst 2960G-24TC-L and Catalyst 2960G-48TC-L Switches
The 10/100/1000 ports on the Catalyst 2960G-24TC-L and Catalyst 2960G-48TC-L switches are
grouped in pairs. The first member of the pair (port 1) is above the second member (port 2), port 3 is
above port 4, and so on. The SFP module slots are numbered 21 to 24 on the Catalyst 2960G-24TC-L
switch and 45 to 48 on the Catalyst 2960G-48TC-L switch. See Figure 1-15 and Figure 1-16.
The Catalyst 2960G-24TC-L and Catalyst 2960G-48TC-L switches have dual-purpose ports, meaning
ports 21 to 24 or 45 to 48 can use either the SFP module or the RJ-45 connector for that port, but not
both. Use the software to set the connector type for these ports. For more information about the
dual-purpose port, see the “Dual-Purpose Port” section on page 1-13.
1 10/100 ports 2 10/100/1000 uplink ports
204609
SYST
RPS
STAT
DUPLX
SPEED
MODE
1
2
1 10/100 PoE ports 3 SFP module slots
2 10/100/1000 uplink ports
Catalyst 2960 Series PoE-48
26X
24X
36X
35X
3029 3231 3433 3635 2625 2827
38X
37X
48X
47X
2X
1X
12X
11X
14X
13X
24X
23X
4241 4443 4645 4847 3837 4039 65 87 109 1211 21 43 1817 2019 2221 2423 1413 1615
SYST
STAT
DUPLX
SPEED
RPS
PoE
MODE
POWER
OVER
ETHERNET
3 4
12
205644
1
2
3
1 10/100 PoE ports 3 SFP module slots
2 10/100/1000 uplink ports
206732
1 2
3

Cisco CATALYST 2960 Specifications

General

Manageable	Yes
Stacking	No
Model	Catalyst 2960 Series Switches
Power over Ethernet (PoE)	Available on some models (IEEE 802.3af)
VLANs	255 active VLANs
Features	QoS
Operating Temperature	32 to 113°F (0 to 45°C)
Relative Humidity	10% to 85% non-condensing
Power Consumption	Varies by model (30W to 400W)
