Understanding EtherChannels

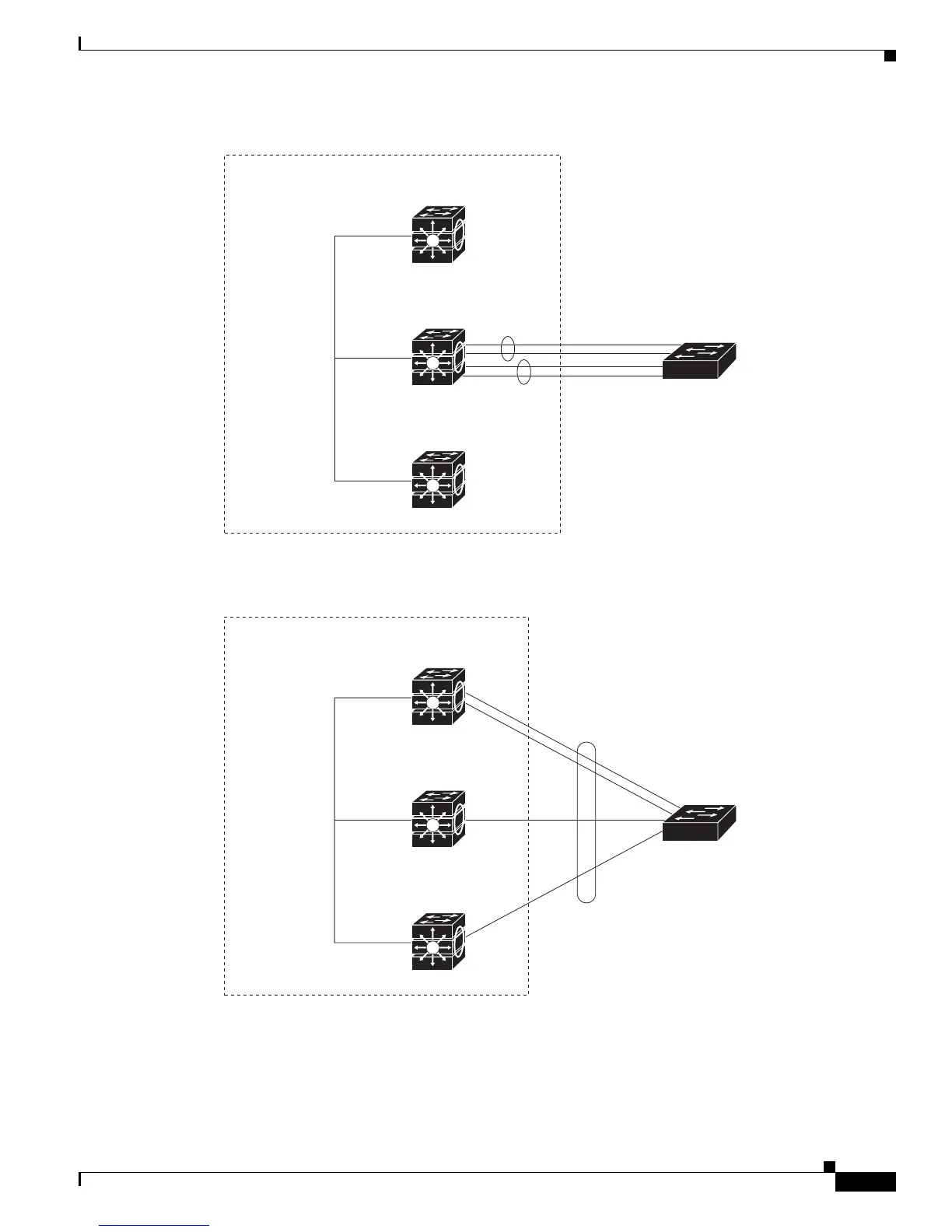

Figure 37-2 Single-Switch EtherChannel
Figure 37-3 Cross-Stack EtherChannel
Switch 1
Blade switch stack
Switch 2
Channel
group 1
Channel
group 2
StackWise Plus
port
connections
Switch 3
Switch A
2
01782
Switch 1
Blade switch stack
Switch 2
Channel
group 1
StackWise Plus
port
connections
Switch 3
Switch A
2
01783
