Cisco Catalyst 3120 User Manual

40-4
Cisco Catalyst Blade Switch 3120 for HP Software Configuration Guide
OL-12247-01
Chapter 40 Configuring HSRP
Configuring HSRP

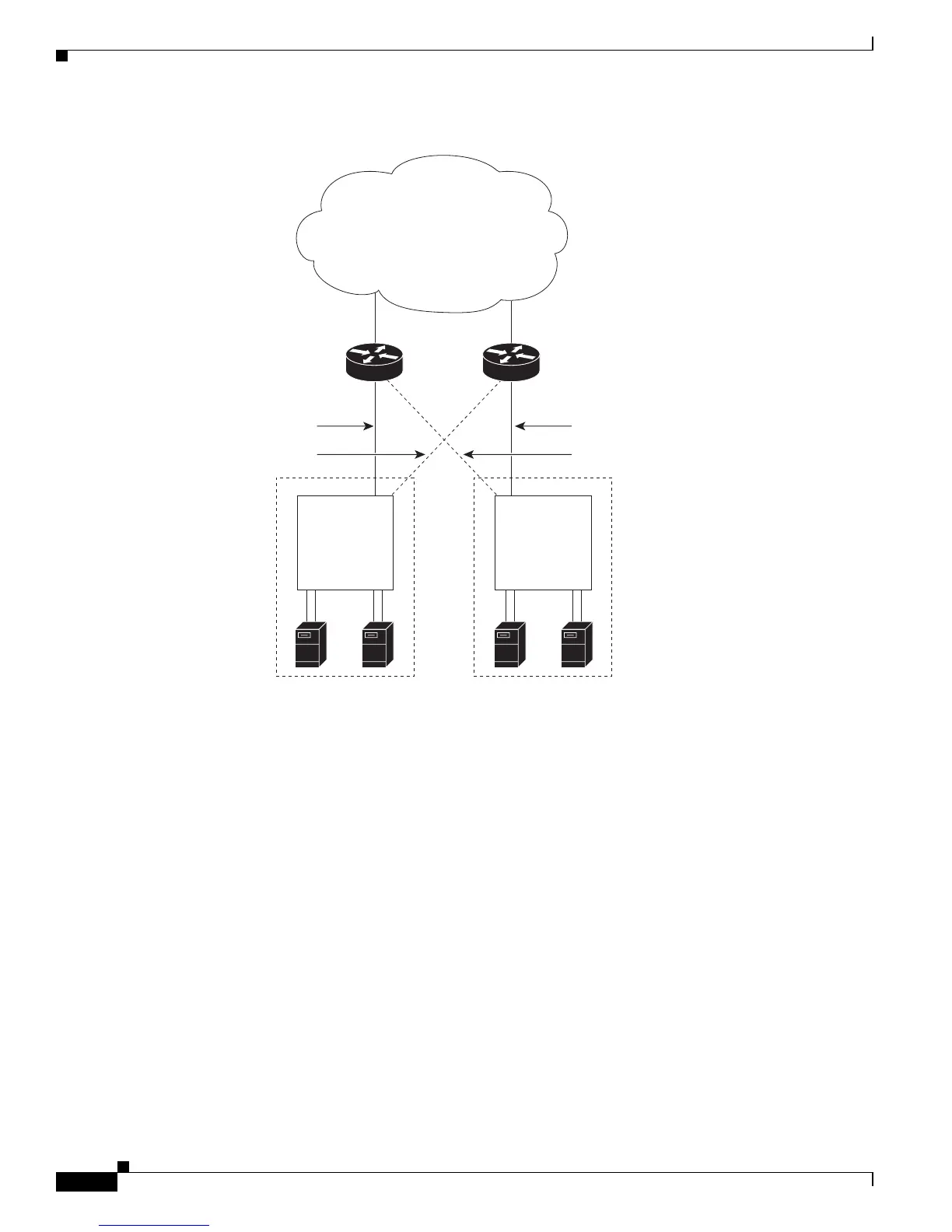

Figure 40-2 MHSRP Load Sharing
HSRP and Switch Stacks
HSRP hello messages are generated by the stack master. If an HSRP-active stack master fails, a flap in
the HSRP active state might occur. This is because HSRP hello messages are not generated while a new
stack master is elected and initialized, and the standby router might become active after the stack master
fails.
Configuring HSRP
These sections contain this configuration information:
• Default HSRP Configuration, page 40-5
• HSRP Configuration Guidelines, page 40-5
• Enabling HSRP, page 40-5
• Configuring HSRP Priority, page 40-7
• Configuring MHSRP, page 40-9
• Configuring HSRP Authentication and Timers, page 40-9
2
01791
A
ctive router for group 1
S
tandby router for group 2
Blade switch
enclosure
with a
management
module
Router A Router B
10.0.0.1
Active link
Standby link
Active link
Standby link
10.0.0.2
Active router for group 2
Standby router for group
1
Blade switch
enclosure
with a
management
module
