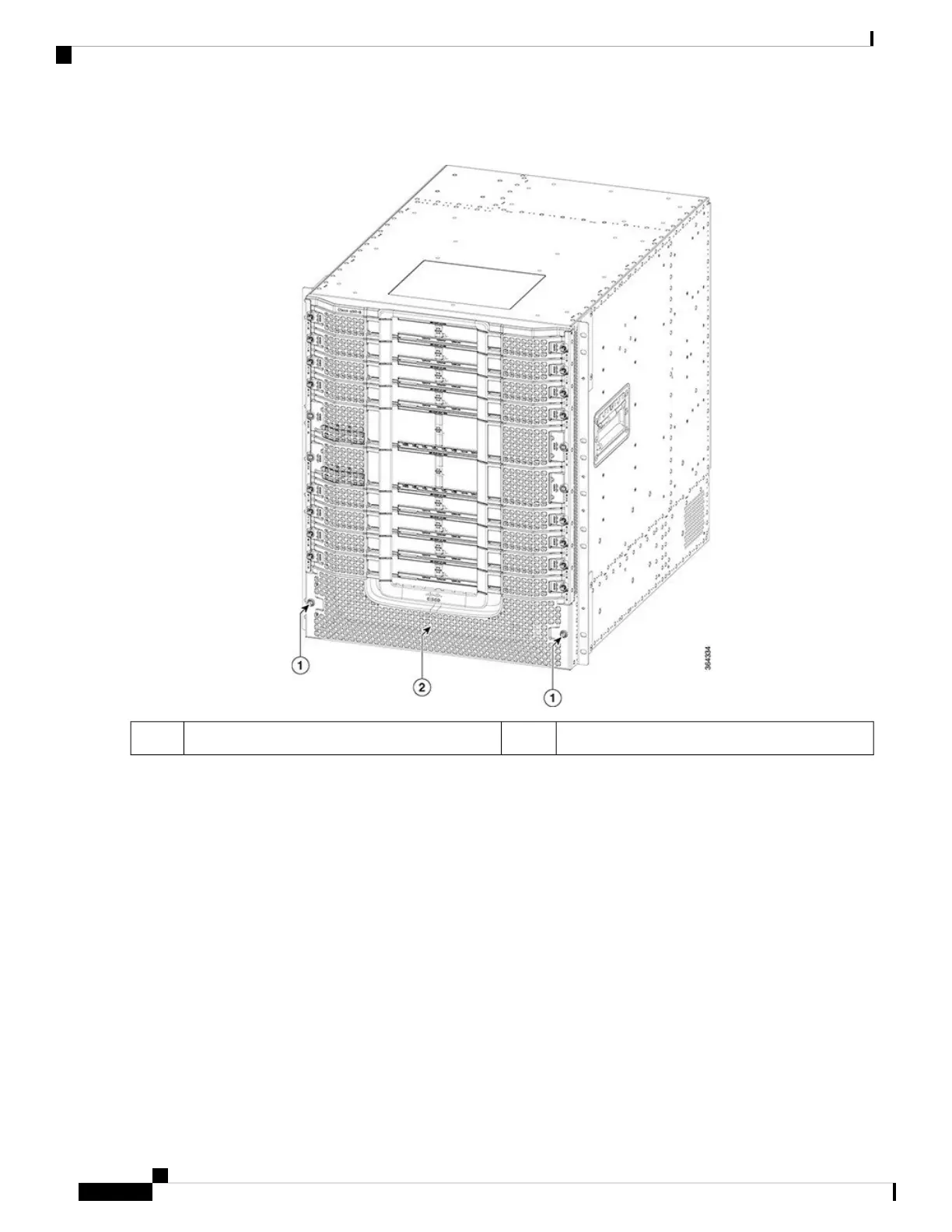

Figure 121: Removing the Front Power Entry Bezel from the Chassis
Front power entry bezel2Screw1
Step 2 Loosen and remove the four #6-32 Torx-head screws on the Power Cassette Module using a T10 Torx screwdriver.
Step 3 Hold the side flanges on the Power Cassette Module with both your hands. Pull and slide the module out of the chassis
applying even pressure to both your hands.
Cisco Converged Broadband Routers Hardware Installation Guide
196
Maintaining the Power System in the Cisco cBR Chassis
Removing the Power Cassette Module from the Cisco cBR Chassis
