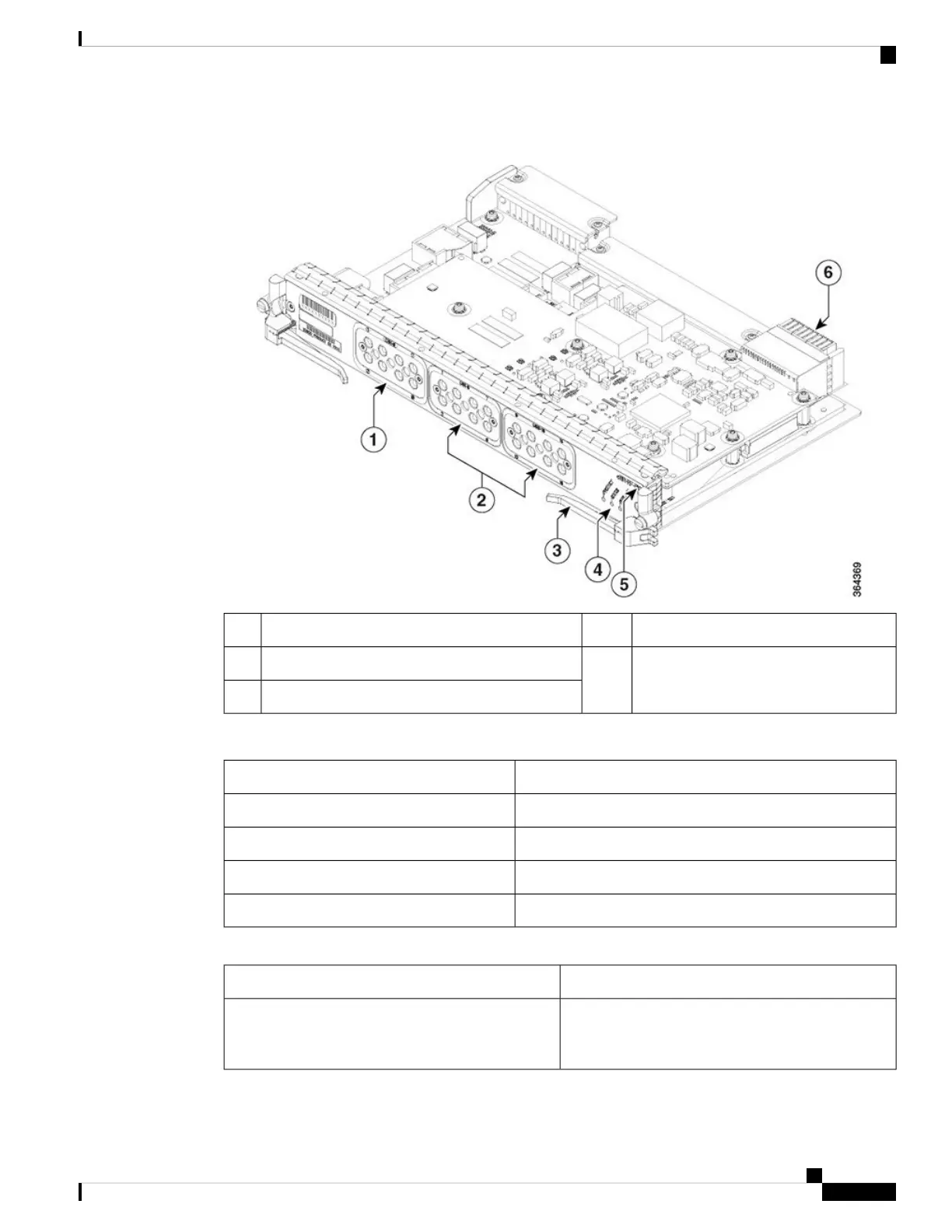

Figure 15: RF Through PIC
LEDs4Downstream ports DS0 to DS71
Product Identifier (PID)5Upstream ports US0 to US7 and US8 to US152
Ejector Lever3
Table 19: Physical Specifications of the RF PICs
ValueUnit
7.8 in (19.8 cm)Depth
11.8 in (30 cm)Width
1.5 inch (3.8 cm)Height
5 lbs (2.26 kg)Maximum Weight
The RF Through PIC has the following ports:
DescriptionPorts
The RF Through PIC has eight 50-1200 MHz RF
connector ports that provide downstream channel
connectivity.
DS0 to DS7
Cisco Converged Broadband Routers Hardware Installation Guide
29
What is a Cisco cBR Series Converged Broadband Router
DOCSIS MAC/PHY Cards

Cisco cBR Series Specifications

General

Category	Network Router
Modular Design	Yes
Operating System	Cisco IOS XE
Model Examples	cBR-8, cBR-4
Product Series	cBR Series
Purpose	Converged Broadband Router
DOCSIS Support	DOCSIS 3.1
Redundancy	Yes
Management	Cisco Prime
Product Family	cBR Series
Downstream Frequency Range	Up to 1.2 GHz
Upstream Frequency Range	Up to 204 MHz
Modulation Schemes	QAM
Power Supply	Redundant AC or DC power supplies
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5 to 95% noncondensing
