Cisco cBR Series Hardware Installation Guide

DescriptionPorts
The RF Through PIC has sixteen 5-204 MHz RF
connector ports that provide upstream channel
connectivity.
US0 to US7 and
US8 to US15
The RF PICs have the following LEDs:
DescriptionLED
Status of the card.STATUS
Protect configuration status of the card.PROTECT
Indicates if the card must be replaced.REPLACE
RF Protect PIC
The RF Protect PIC provides redundancy support for the N+1 high availability features, to the RF Through
PICs in the chassis. It has only the LEDs on its faceplate. It does not have the downstream and upstream ports.

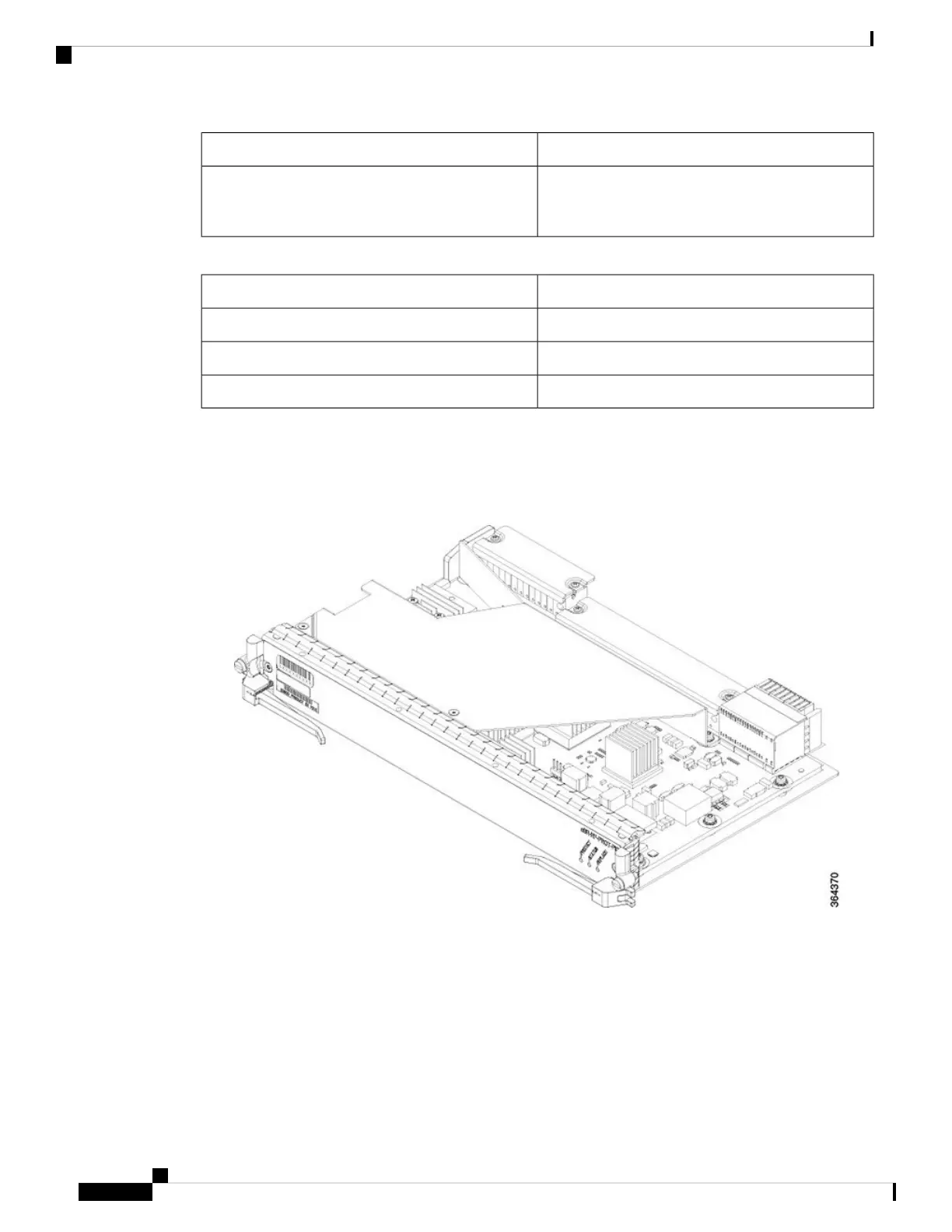

Figure 16: RF Protect PIC
DOCSIS MAC Cards
A DOCSIS MAC line card is paired with an Digital Interface Card (DPIC).
Digital Interface Line Cards
The Cisco cBR chassis supports the following Digital Interface Line Cards:
• DOCSIS MAC SSI Card (40Gbps). [PID: CBR-CCAP-LC-40G-R]
Cisco Converged Broadband Routers Hardware Installation Guide
30
What is a Cisco cBR Series Converged Broadband Router
DOCSIS MAC Cards

Cisco cBR Series Specifications

General

Category	Network Router
Modular Design	Yes
Operating System	Cisco IOS XE
Model Examples	cBR-8, cBR-4
Product Series	cBR Series
Purpose	Converged Broadband Router
DOCSIS Support	DOCSIS 3.1
Redundancy	Yes
Management	Cisco Prime
Product Family	cBR Series
Downstream Frequency Range	Up to 1.2 GHz
Upstream Frequency Range	Up to 204 MHz
Modulation Schemes	QAM
Power Supply	Redundant AC or DC power supplies
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5 to 95% noncondensing
