• Strap down cable bundles or conduit (there are multiple tie-down points on each strap-down clip).
• A base for two snap-on plastic fiber or cable routing guides.
Before you begin
Required Tools and Equipment
• 4 knurled retaining screws
• T15 Torx driver (optional)
• 2 strap-down clips
• 4 snap-on plastic cable routing guides
Step 1 Insert the four knurled retaining screws on the side of the chassis and tighten them using a T15 Torx driver (up to a torque
of 6 to 8 in-lb).
If the screw location is not accessible for a driver, you can tighten the knurled screws by hand.

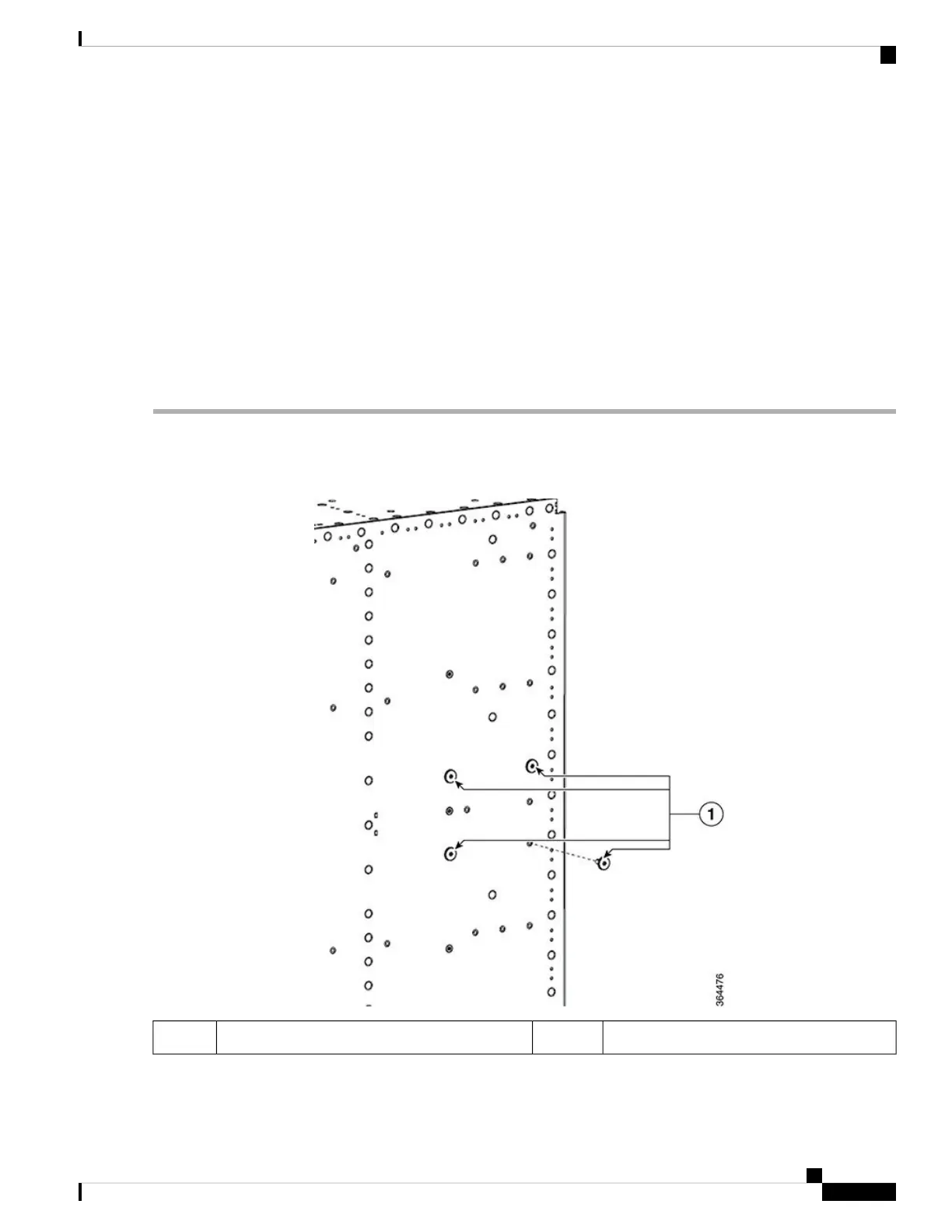

—Knurled retaining screws1
Cisco Converged Broadband Routers Hardware Installation Guide
67
Installing the Cisco cBR Chassis
Attaching the Fiber or Cable Routing Guide on Chassis
