Torque Specifications
Node Fastener Torque Specifications
Be sure to follow these torque specifications when assembling/mounting the node.
Fastener
Torque Specification

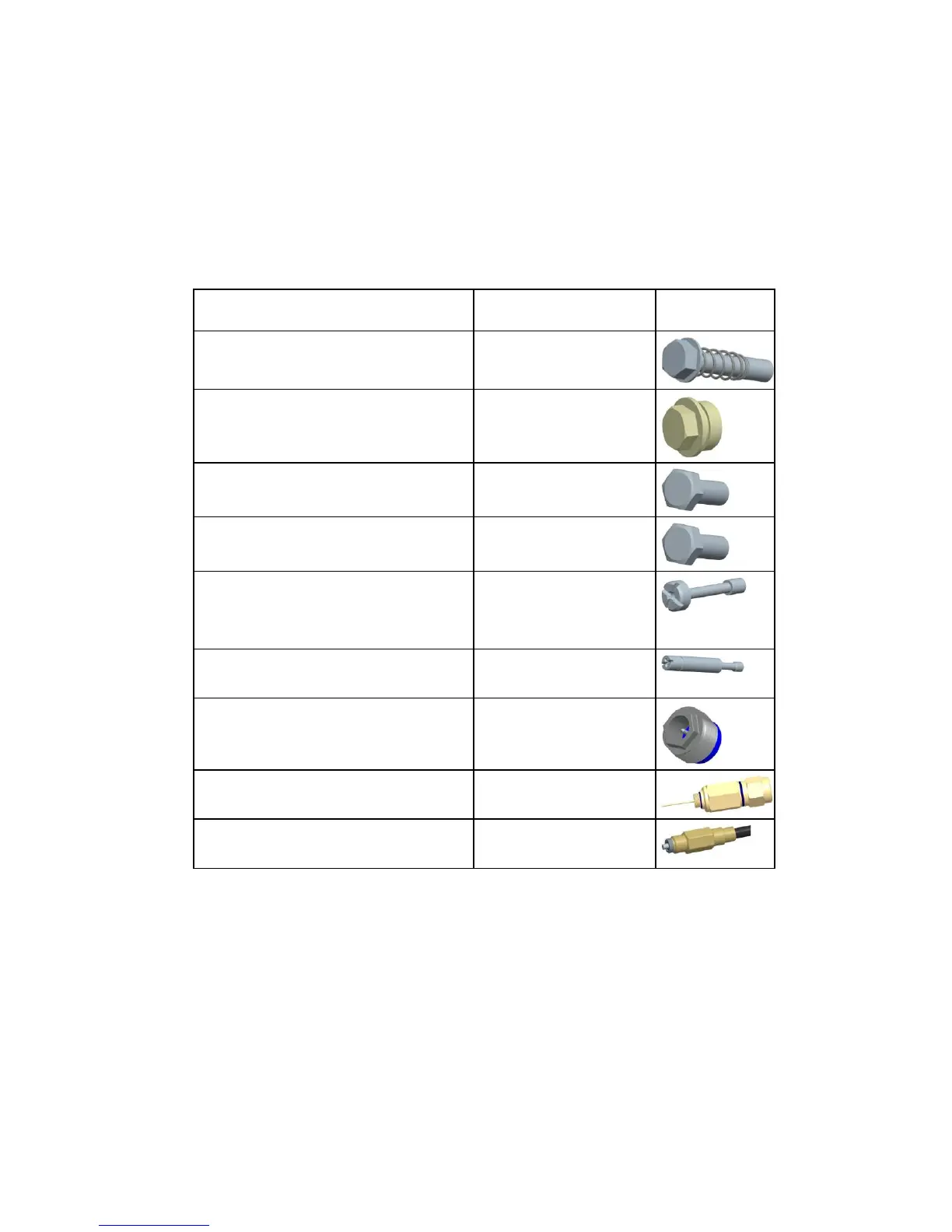

Illustration
Housing closure bolts
5 to 12 ft-lbs
(6.8 to 16.3 Nm)
Fiber port plugs
Housing plugs
5 to 8 ft-lbs
(6.8 to 10.8 Nm)
Strand clamp mounting bracket bolts
5 to 8 ft-lbs
(6.8 to 10.8 Nm)
Pedestal mounting bolts
8 to 10 ft-lbs
(10.8 to 13.6 Nm)
Module securing screws
(EDFA, OPSW, PS, and SM/LCM
modules)
25 to 30 in-lbs
(2.8 to 3.4 Nm)
AC entry module shoulder screws
(cross head screw)
18 to 20 in-lbs
(2.0 to 2.3 Nm)
Seizure nut
2 to 5 ft-lbs
(2.7 to 6.8 Nm)
RF cable connector
Per manufacturer
instructions
Fiber optic cable connector
20 to 25 ft-lbs
(27.1 to 33.9 Nm)
