Optical Passive Modules
OL
-29936-
01
51
1
x
8
D
u
a
l
1
x
4
C
o
u
p
l
e
r
The 1x8 dual 1x4 coupler allows for
input through a single fiber
using the 1x8 port or
two fibers using the 1x4 ports. The sign
als are split using a single 1x8 splitter or tw
o
1x4 splitters. The output to the
distribution cable is via the 8
-fiber MPO connector.

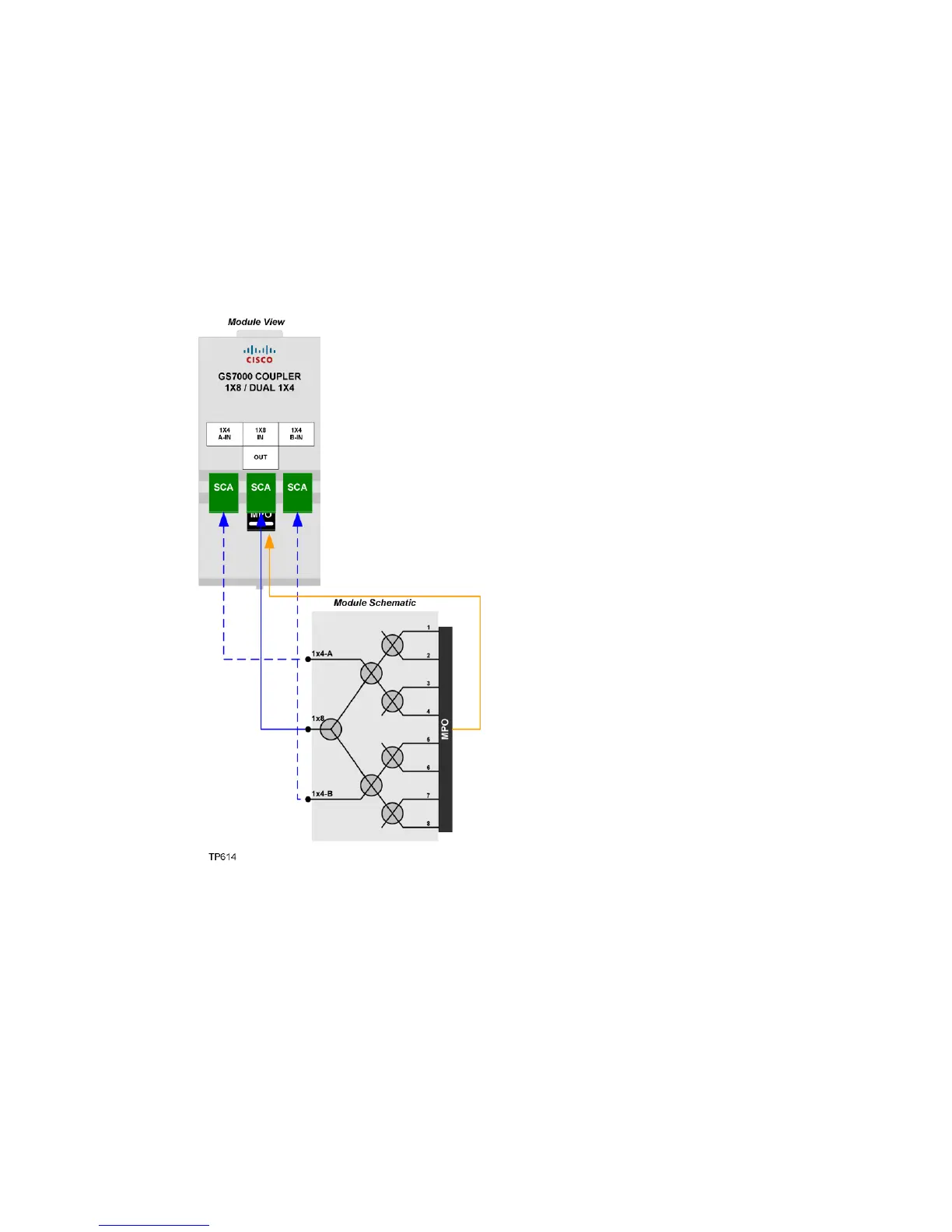

The following illustration shows
an example of the module.
72
74
