RF Cable Installation
OL-29936-01 39

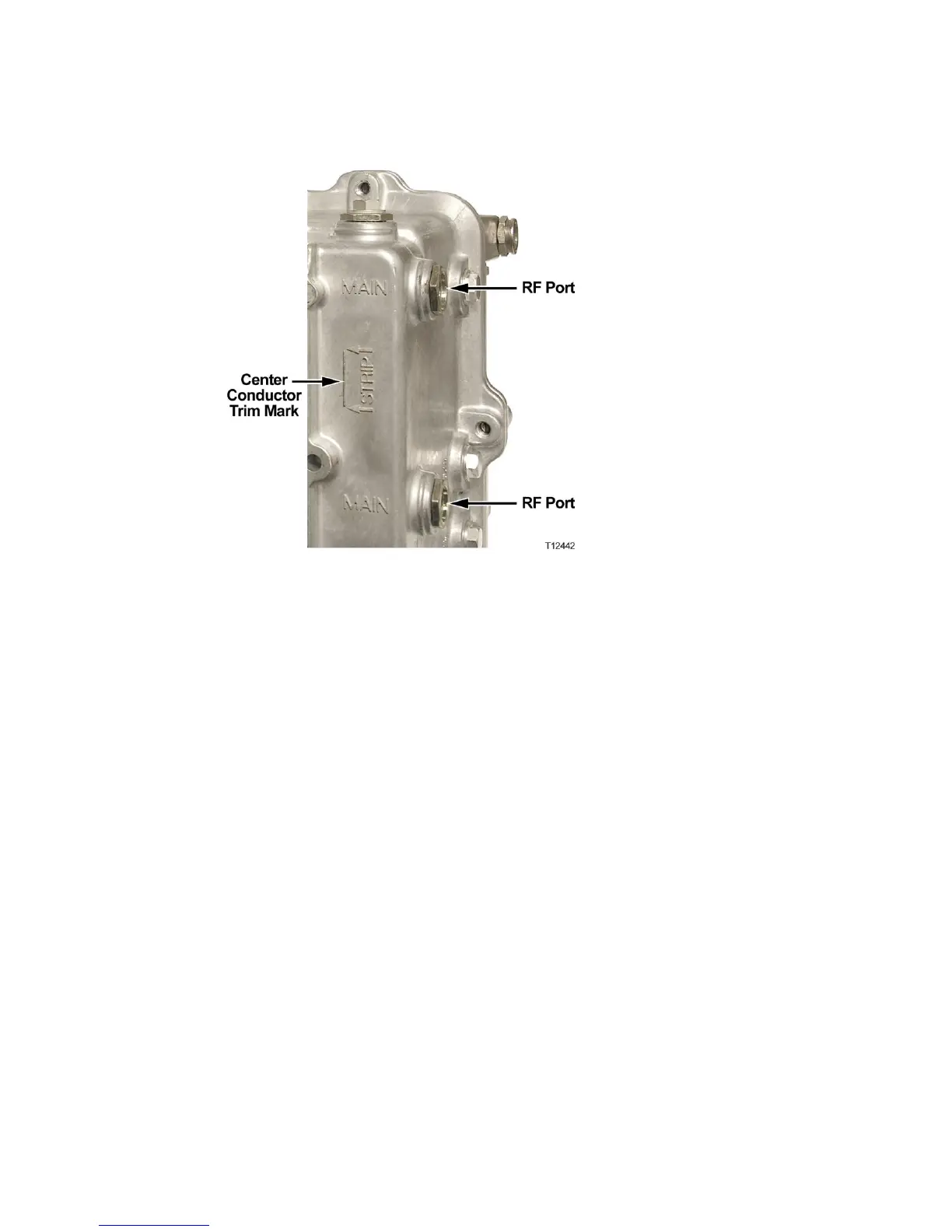

2 If the center conductor extends past the STRIP line on the housing, trim the pin
flush with the STRIP line.
3 Remove any burrs or sharp edges from the trimmed end of the pin.
Connecting the RF Cables to the Housing
Follow these steps to connect the RF cables.
1 Determine which ports, RF3 or RF6 or both, receive an RF cable for your
configuration.
2 The length of the RF connector center pin is critical to proper operation. The
pin length must be 1.6 inches (4.064 cm). Trim pin if necessary before
installation. See Trimming the Center Conductor (on page 37).
Note: Assemble each RF connector to its cable according to manufacturer’s
instructions.
3 Remove the sealing plug of each port to which cables connect. Note that ports
RF3 and RF6 have the option of a vertical or horizontal connection.
4 Insert the appropriate coaxial connector of each RF cable to the desired housing
port and torque to the manufacturer’s specification. Do not exceed
recommended torque.
5 Repeat steps 2 through 4 for each RF port used.
6 Continue to Applying Power to the Hub.
