Chapter 3 Setup and Operation

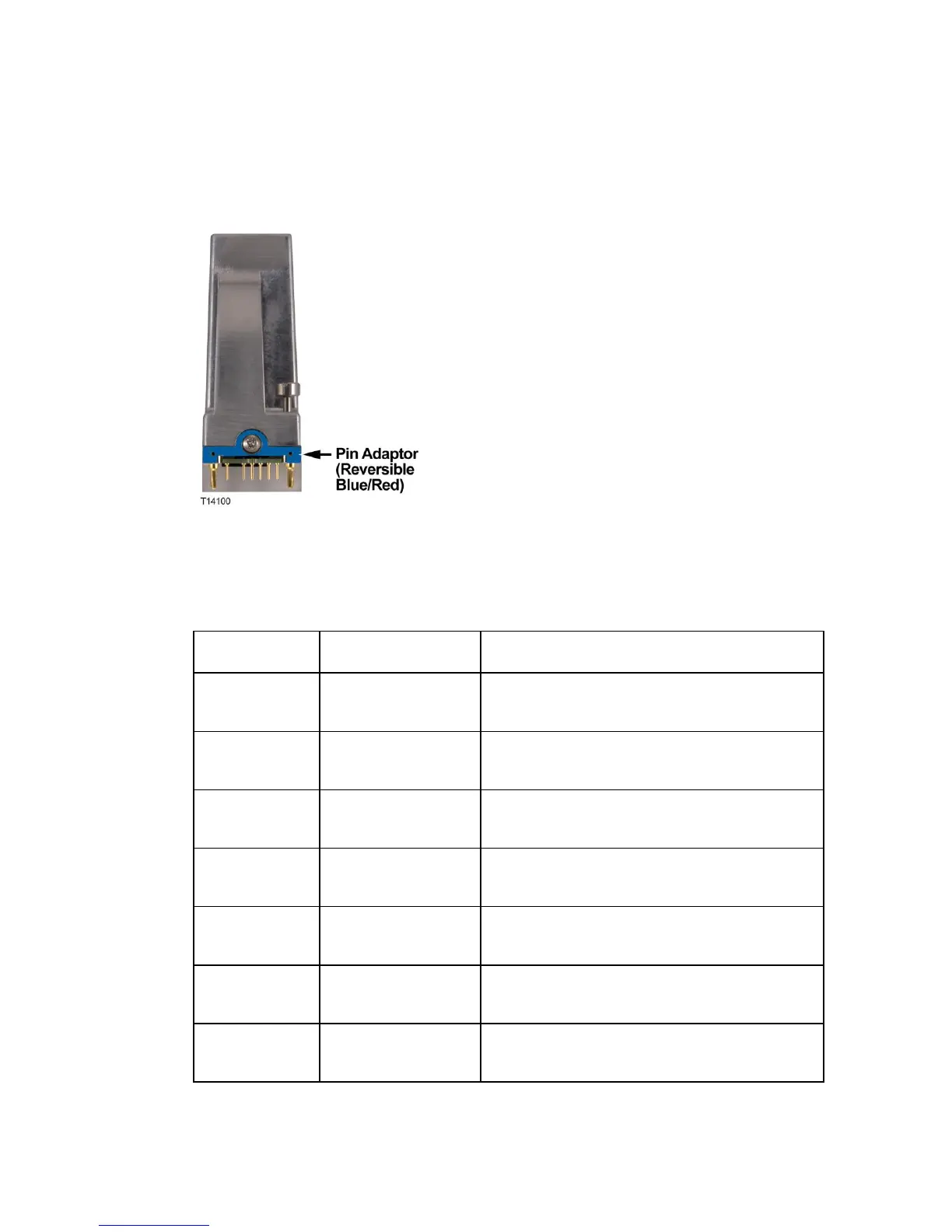

Important: For mounting in a hub, the pin adaptor must be installed with the blue
side facing out as shown.
Refer to Optical Amplifier and Optical Switch Module Pin Adaptor (on page 100)
for pin adaptor installation instructions.
Optical Amplifier Module Models
The following table describes the available EDFA models for the Model GS7000
Optical Hub.
Default: Constant power at 17 dBm
Optional: Constant gain at 12 dB ± 2 dB
Default: Constant power at 20 dBm
Optional: Constant gain at 15 dB ± 2 dB
Default: Constant power at 22 dBm
Optional: Constant gain at 17 dB ± 2 dB
17 dBm gain flattened
low gain EDFA
Default: Constant gain at 7 dB (± 2 dB range)
Optional: Constant power at 17 dBm
17 dBm gain flattened
high gain EDFA
Default: Constant gain at 12 dB (± 2 dB range)
Optional: Constant power at 17 dBm
21 dBm gain flattened
low gain EDFA
Default: Constant gain at 11 dB (± 2 dB range)
Optional: Constant power at 21 dBm
21 dBm gain flattened
high gain EDFA
Default: Constant gain at 16 dB (± 2 dB range)
Optional: Constant power at 21 dBm
