Chapter 3
Setup and Operation
48
OL
-29936-
01
N
C
B
C
C
o
m
b
i
n
e
r
s
w
i
t
h
F
or
w
a
r
d
D
e
m
u
x
These modules are only used in th
e forward path.
The narrowcast signal is s
plit
with a 1x8 demultiplexer.
Broad
cast signals are split with either a 1x8 splitter or
two 1x4 splitters.
Narrowcast and
broadcast signals are combined using integrated
BWDMs and connect to the distribution cable
using an 8
-fiber MPO connector.

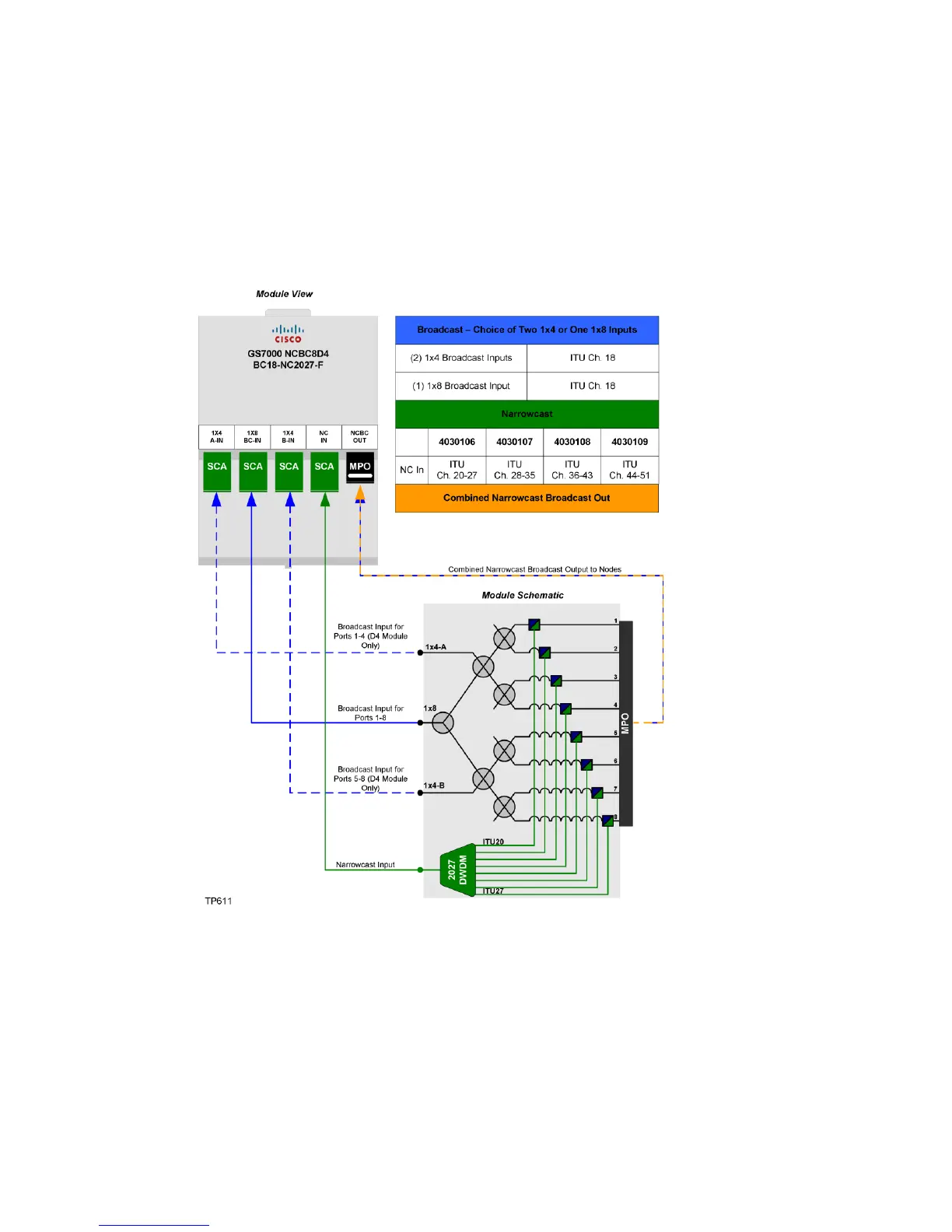

The following illustration s
hows an example of the module.
69
