RF Cable Installation
Overview
The Model GS7000 Optical Hub can accept up to two RF cables. These cables carry
forward path RF signal inputs and reverse path RF signal outputs to and from the
Status Monitor module. The RF cables also supply the 45 to 90 VAC power input to
the hub.
Trimming the Center Conductor

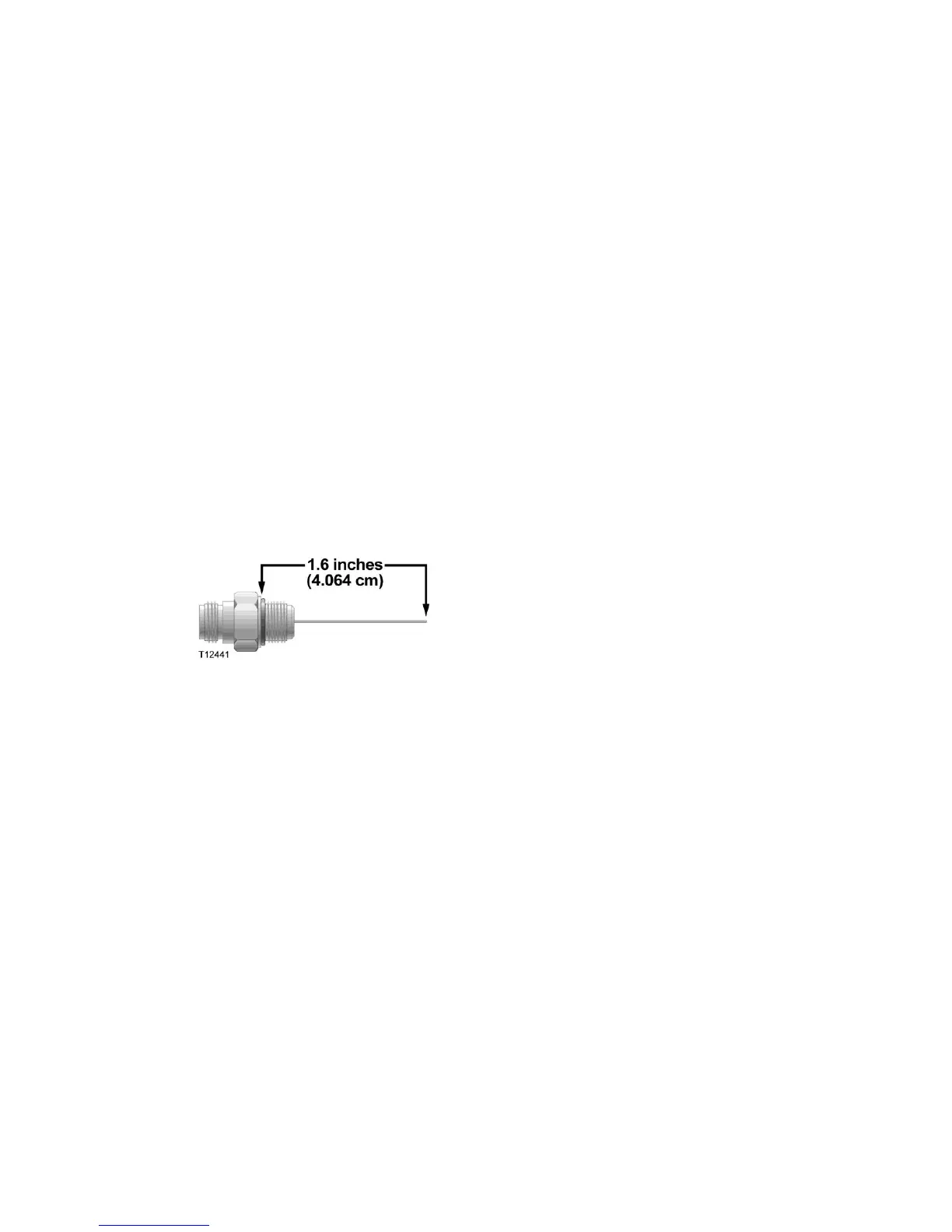

The Model GS7000 Optical Hub requires pin-type connectors for all RF connections.
Standard pin connectors, with pins extending 1.5 in. to 1.6 in. (3.8 cm to 4.064 cm)
from connector shoulder, require no trimming. You must trim longer pins before
inserting them into the housing.
