NCBC Combiners with Integrated Forward Demux and Return Mux
This module handles both the forward and reverse path. In the forward path, it
splits narrowcast signals with a 1x8 demultiplexer and broadcast input signals with
a 1x8 splitter. Narrowcast and broadcast signals are combined using integrated
BWDMs and connect to the distribution cable using an 8-fiber MPO connector. The
reverse signal is received from the distribution cable via an 8-fiber MPO connector.
The signal goes through a 1x8 multiplexer and is sent in the reverse path on one
fiber.

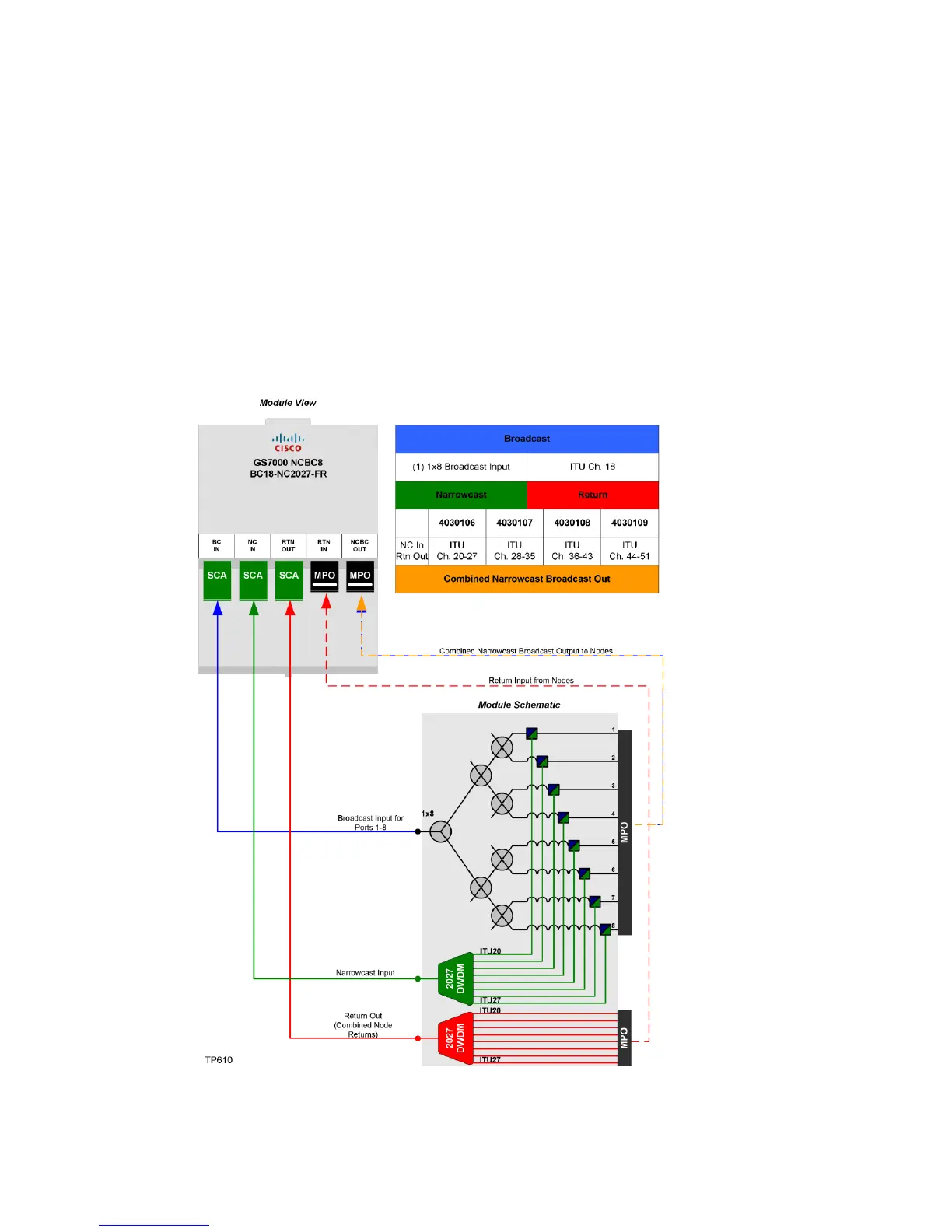

The following illustration shows an example of the module.
