Continue to Voltage Check Procedure.
Voltage Check Procedure
Always check both AC and DC voltages during initial setup of the Model GS7000
Optical Hub.
Follow these steps to check AC and DC voltages.

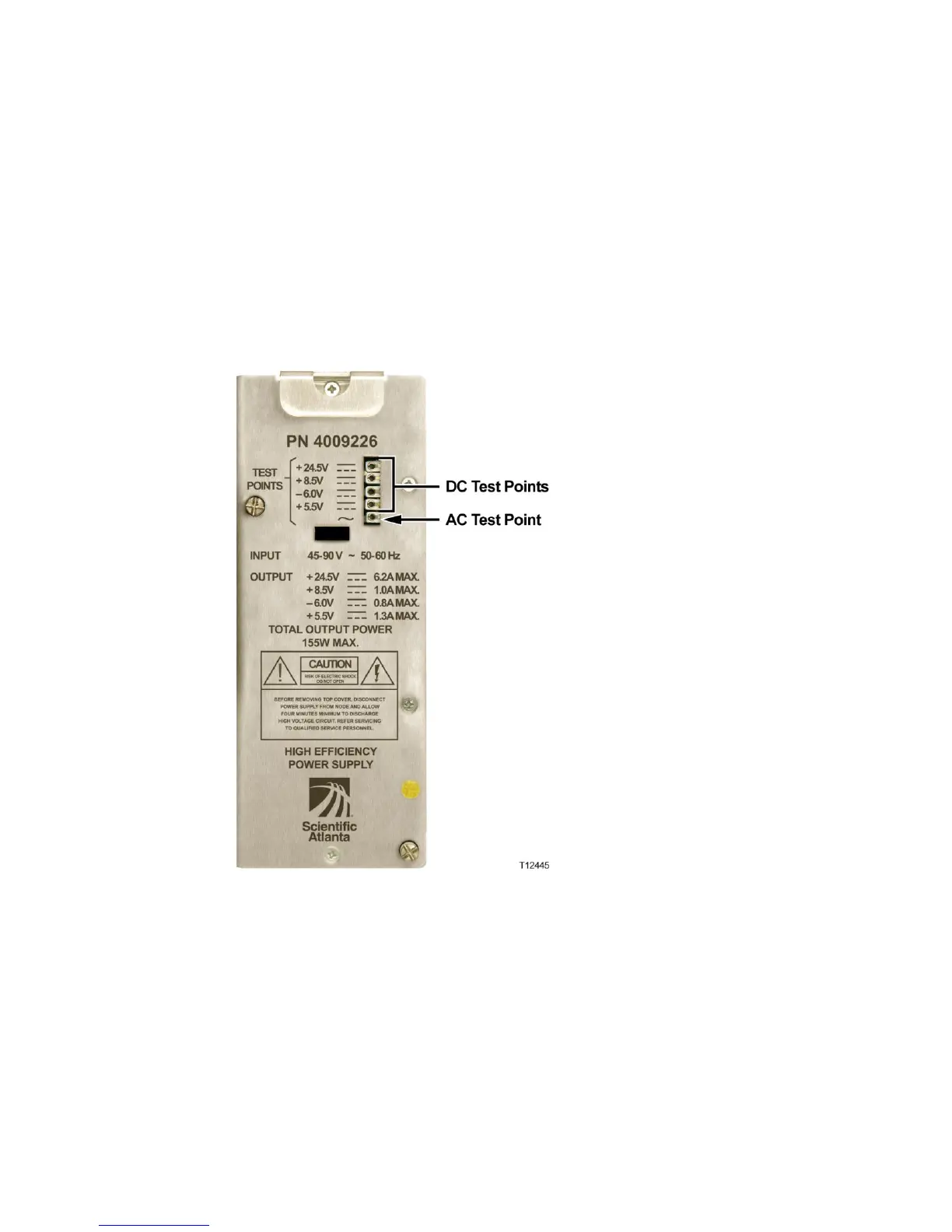

1 Use a true-rms DVM to check for 45 to 90 VAC input voltage at the AC test point
on the power supply module.
2 Check for the various DC output voltages (+24.5, +8.5, -6.0, and +5.5) of the
power supply at the DC test points on the power supply module.
3 Verify that the Power ON LED on the receiver module is on.
4 Carefully close the housing lid. See Opening and Closing the Housing (on page
94).
