Optical Amplifier Module Diagram

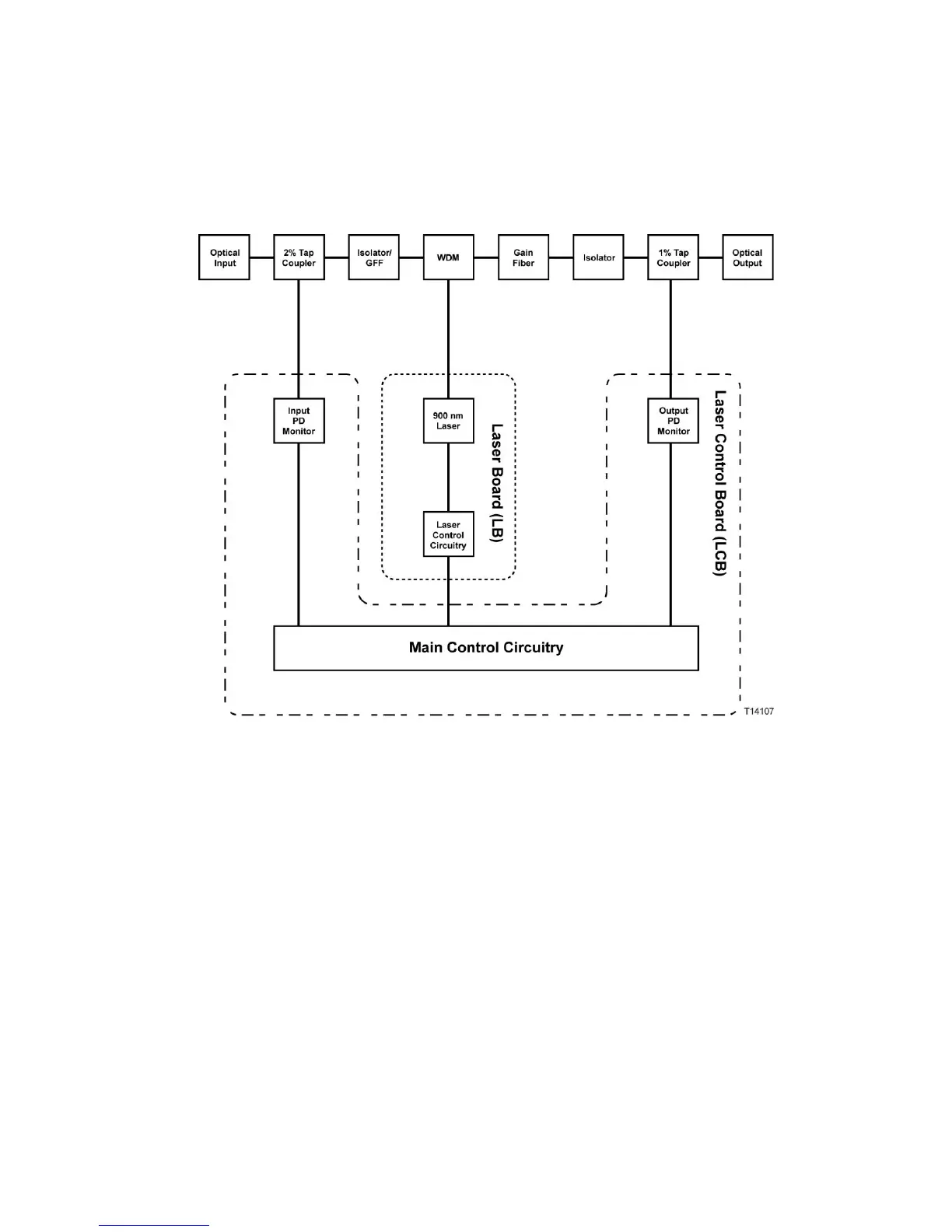

The following block diagram shows how the optical amplifier module functions.
Optical Amplifier Operating Parameters
This section is a reference for the operating parameters of the EDFA. The EDFA is
configured through the Status Monitor/Local Control Module in the housing lid.
Refer to the Model GS7000 Hub/Node Status Monitor/Local Control Module Installation
and Configuration Guide, part number OL-29937-01, for complete instructions on
configuring the EDFA.
