Chapter 2 Installation
12 OL-29936-01
Tools and Test Equipment
Required Tools and Test Equipment
The following tools and equipment are required for installation.
 Torque wrench capable of 5 to 12 ft-lbs (6.8 to 16.3 Nm)
 4-inch to 6-inch extension for torque wrench
 1/2-inch socket for strand clamp bolts and cover bolts
 1/4-inch flat-blade screwdriver
 #2 Phillips-head screwdriver
 Long-nose pliers
 1/2-inch deep-well socket for seizure connector
 True-rms digital voltmeter (DVM)
 EXFO FOT 22AX optical power meter with adapters
 Optical connector cleaning supplies
 Optical connector microscope with appropriate adapters for your optical
connectors

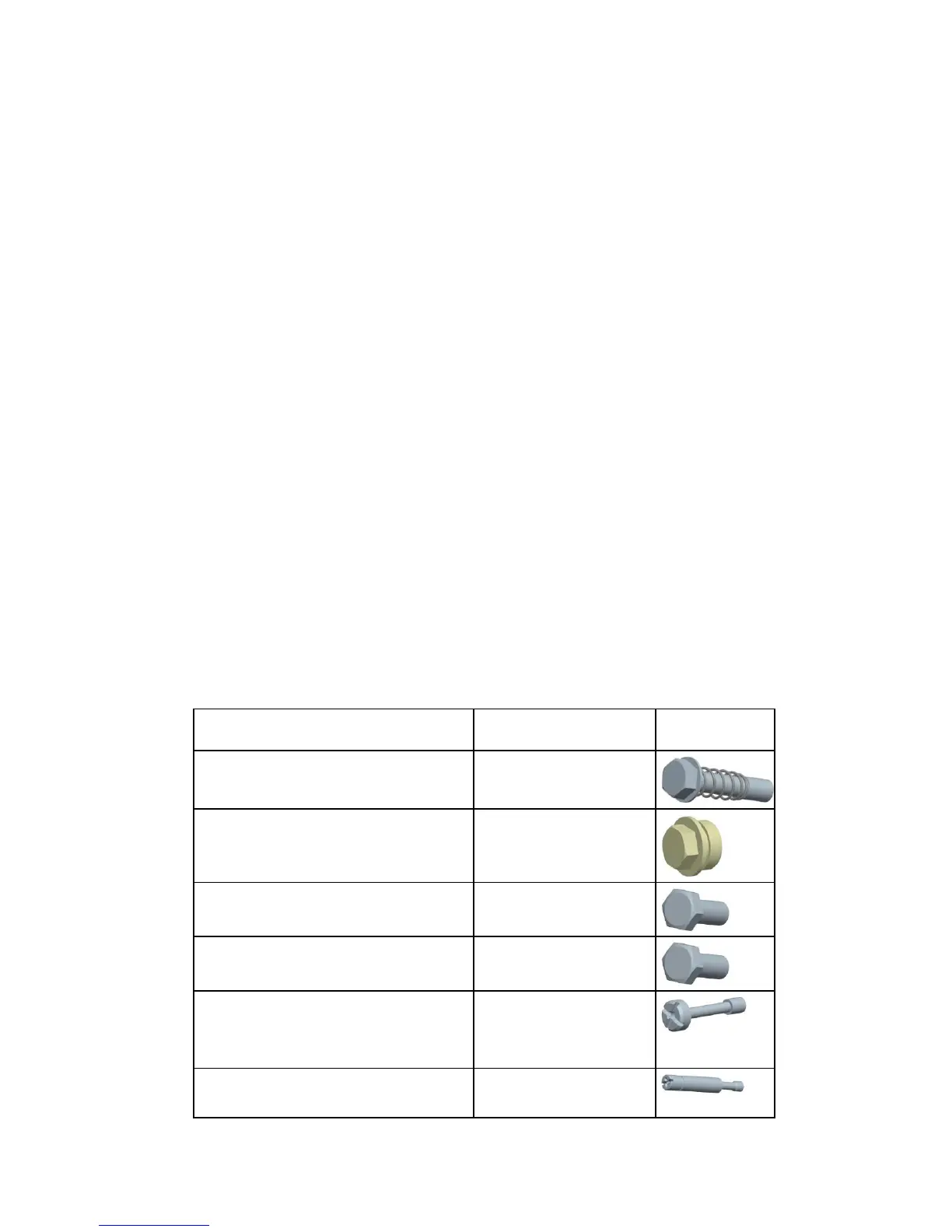

Node Fastener Torque Specifications
Be sure to follow these torque specifications when assembling/mounting the node.
Fastener
Torque Specification
Illustration
Housing closure bolts
5 to 12 ft-lbs
(6.8 to 16.3 Nm)
Fiber port plugs
Housing plugs
5 to 8 ft-lbs
(6.8 to 10.8 Nm)
Strand clamp mounting bracket bolts
5 to 8 ft-lbs
(6.8 to 10.8 Nm)
Pedestal mounting bolts
8 to 10 ft-lbs
(10.8 to 13.6 Nm)
Module securing screws
(EDFA, OPSW, PS, and SM/LCM
modules)
25 to 30 in-lbs
(2.8 to 3.4 Nm)
AC entry module shoulder screws
(cross head screw)
18 to 20 in-lbs
(2.0 to 2.3 Nm)
