Expanded Fiber Tray Installati
on
OL-29936-
01
117
Important:

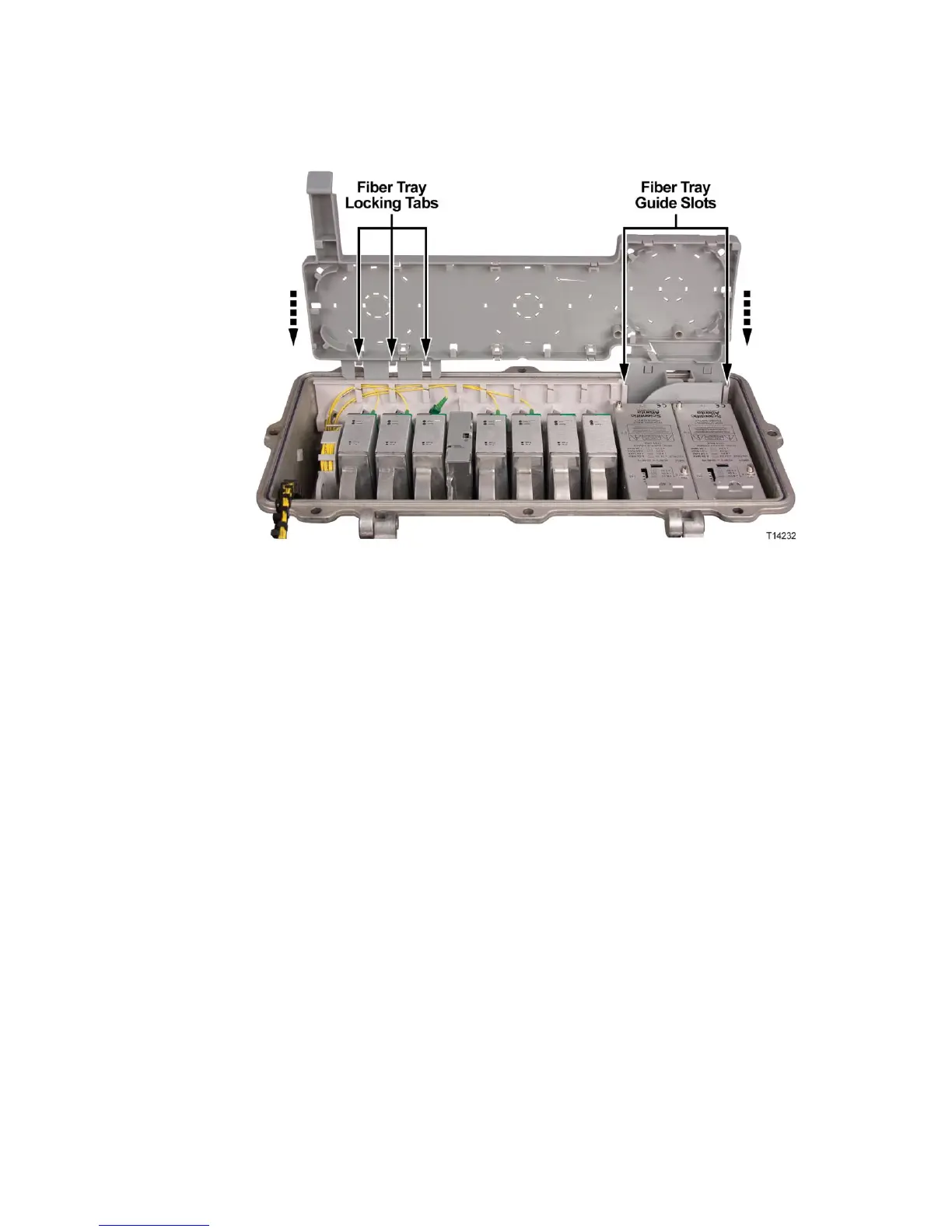

Make sure that the fiber tray fits into th
e two guide slots in the fiber
track
near the power supplies.
Make sure that the fingers and locking t
abs on the other end of the fiber tray
are inserted between the fiber track and the
aluminum node housing.
5
Push down on the fiber tray h
ousing until the fiber tray snaps into place a
nd
is
fully inserted into the node as shown in t
he following illustration.
