3 Position the housing horizontally in the enclosure and allow for free flow of air
around it. Inadequate airflow could cause the unit to exceed thermal
parameters. Line up the bolt holes on the bottom of the housing with the
mounting holes on the pedestal bracket provided by the pedestal manufacturer.

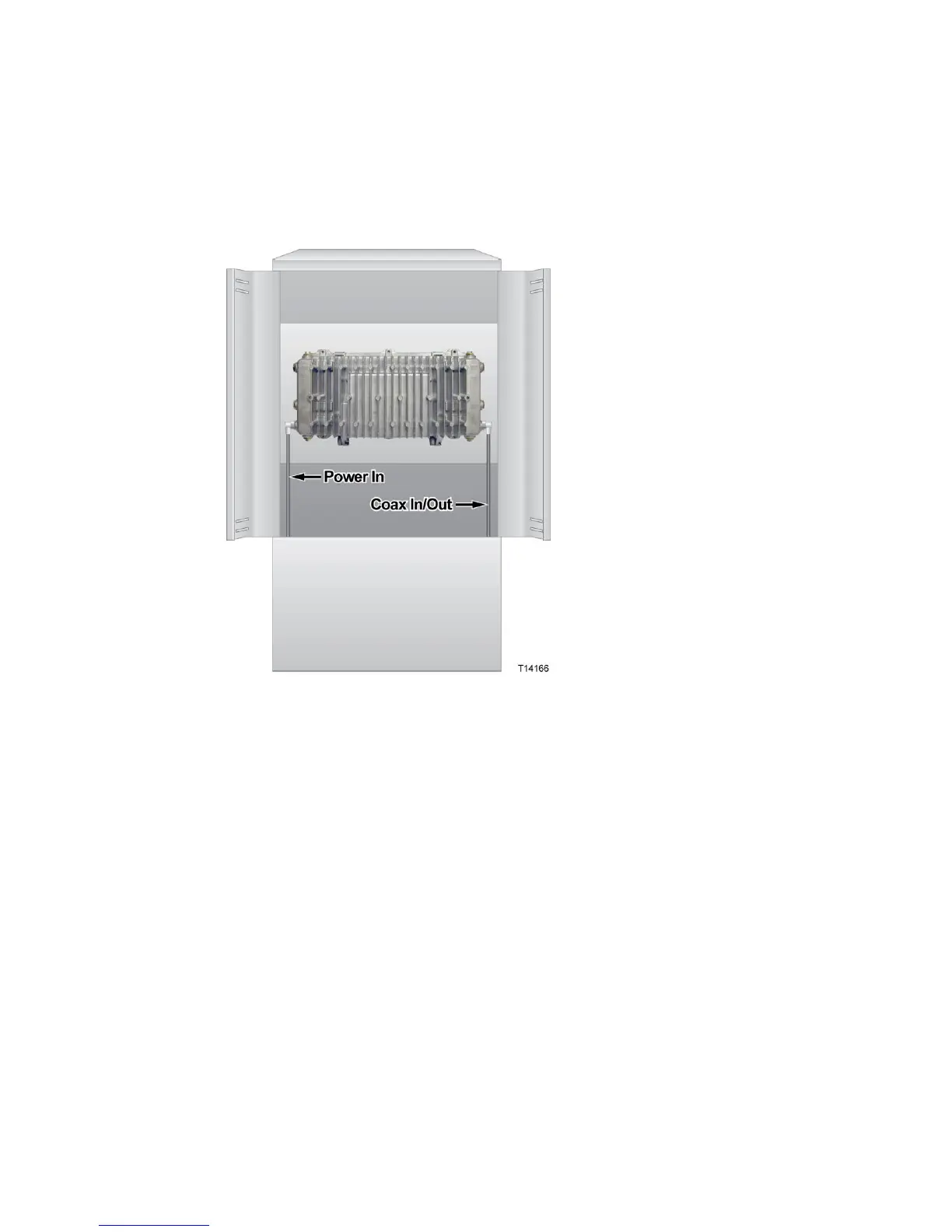

Important: The housing must be mounted horizontally, as shown, to ensure
proper airflow over the housing cooling fins. Do NOT mount the housing
vertically.
4 Secure the housing to the pedestal bracket using the strand clamp bracket bolts
you removed in step 2. Insert the bolts into the mounting holes. Use the
strand clamps as spacers if necessary. Torque the bolts from 8 ft-lb to 10 ft-lb
(10.8 Nm to 13.6 Nm).
5 Connect the coaxial cable to the pin connector according to connector
manufacturer’s specifications.
6 Ground the equipment in accordance with local codes and regulations.
7 Continue to Housing Lid Fiber Optic Cable Installation - Active Modules (on
page 20).
