Note: If using the alternate (right-side) fiber connection port, you have to route
the fibers through the fiber channel in the fiber track located underneath the
unused fiber holders.

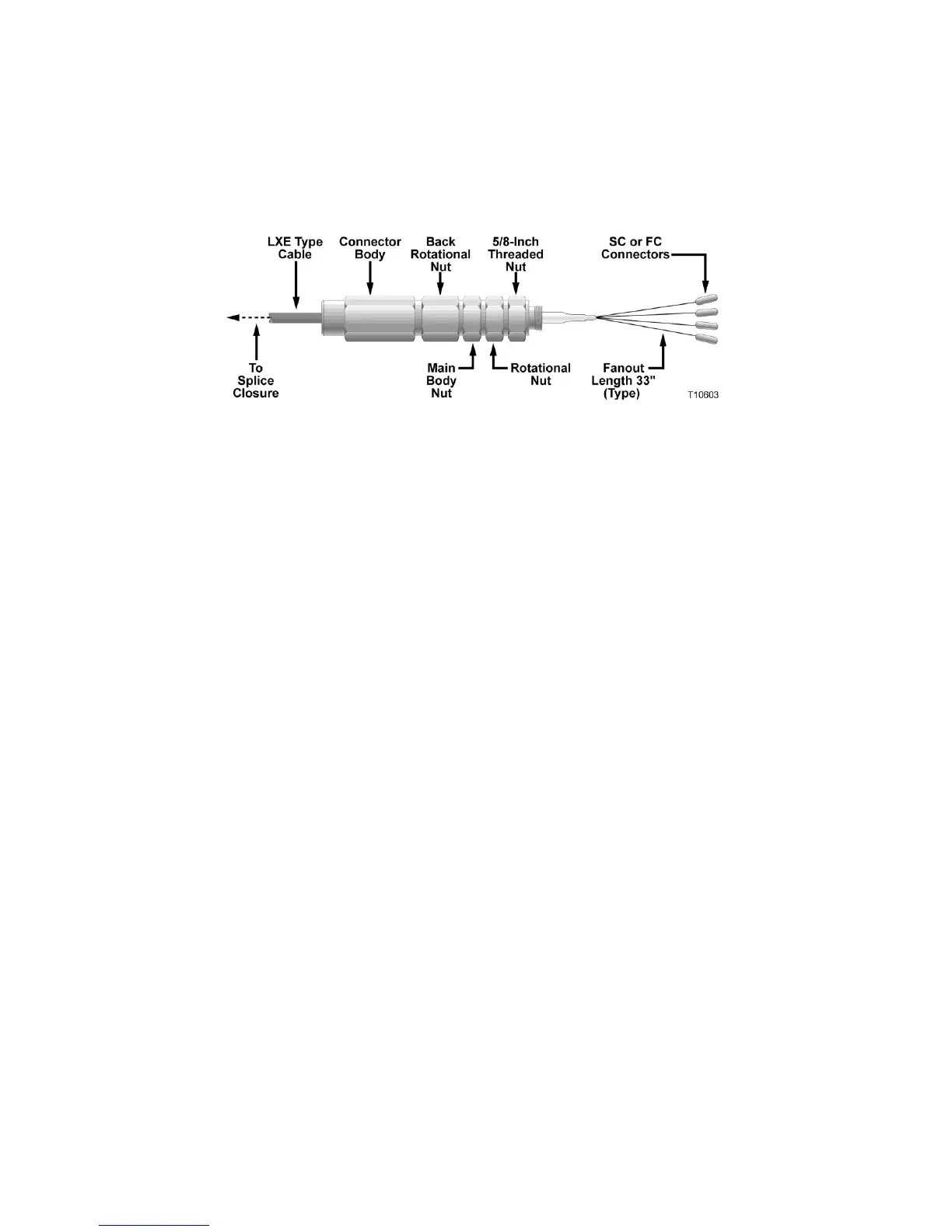

6 Hold the connector body to prevent rotation of the connector or fibers.
7 Carefully thread the 5/8-inch threaded nut into the threaded hole of the fiber
port. Tighten to 20 to 25 ft-lbs (27.1 to 33.9 Nm).
8 Firmly tighten the rotational nut against the 5/8-inch threaded nut.
9 Push heat shrink tubing over the connector and fiber port and shrink in place.
10 Identify individual fibers according to their color code and determine to which
receiver or transmitter module each fiber will connect.
11 Pivot the fiber tray back down and snap it into place on top of the power supply
with its locking tabs.
12 Open the fiber tray cover and carefully wind the fibers around the spool in a
counterclockwise direction. Be sure to leave enough fiber so that each
connector can reach its intended module. Note that different diameter spool
paths are provided to properly adjust the fiber length.
