Connecting the Equipment
STEP 1 Make sure that all network devices are powered off, including the router, PCs,
Ethernet switches, and broadband network device (DSL or cable modem).
STEP 2 To connect to your Internet service:
• RV042, RV042G, and RV082: Connect an Ethernet cable from the
broadband network device to the Internet port of the router.

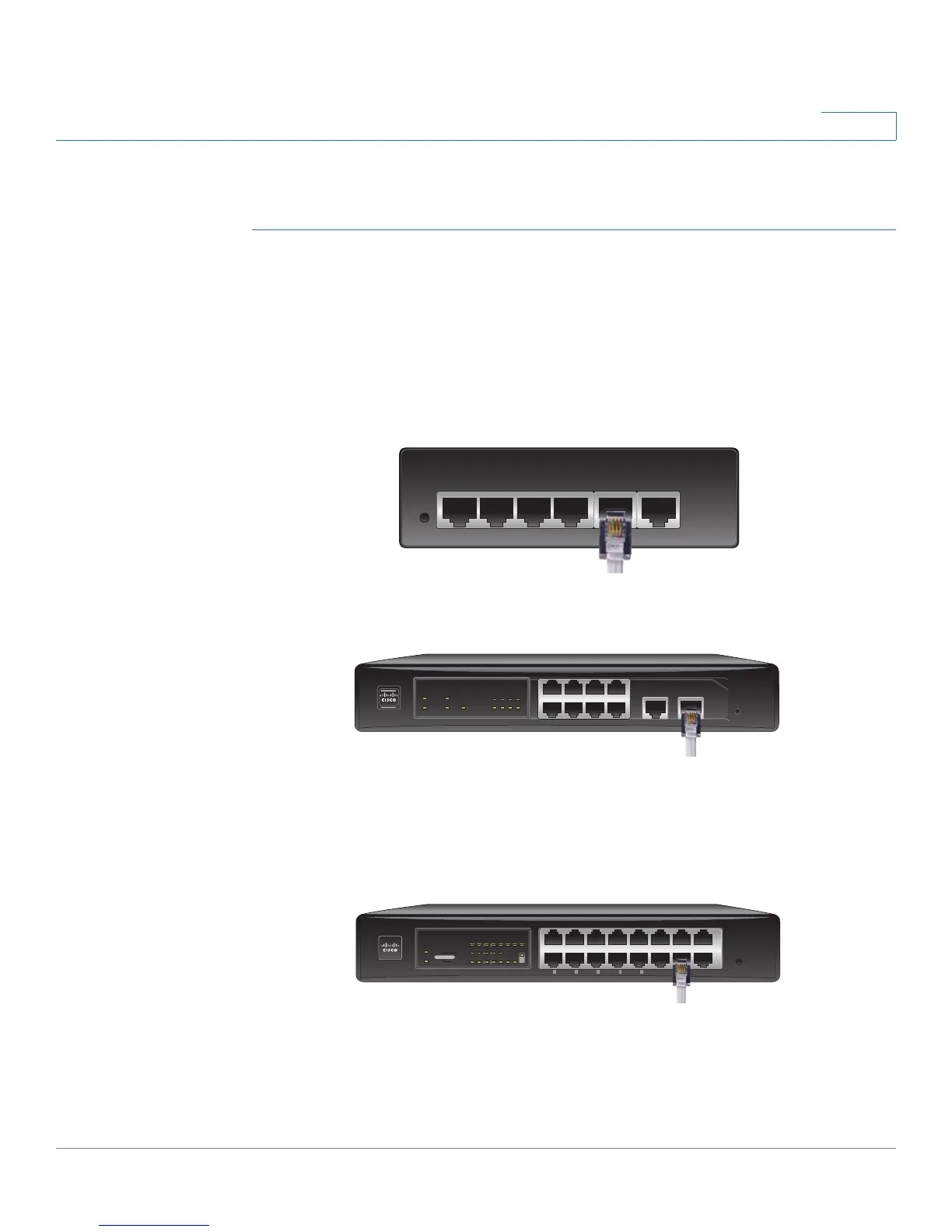

RV042 and RV042G Internet Port
RV082 Internet Port
• RV016: Connect an Ethernet cable from the broadband network device to
the Internet 1 port of the router.
RV016 Internet 1 Port
STEP 3 To connect a secondary Internet service:
• RV042, RV042G, and RV082: Connect an Ethernet cable from the DMZ/
Internet port to a second broadband network device.
199619
DMZ/Internet1 2 3 4 Internet
199620
12 3 4
56 7 8
DMZ/Internet Internet
1234
5678
DIAG
System
Internet
DMZ
Internet
DMZ
Mode
Cisco Small Business
RV082
10/100
16-Port VPN Router
199621
Cisco Small Business
RV016
10/100
16-Port VPN
12345678
97 10 6 115 124 133
Internet 2 Internet 1 DMZ
12345678
910111213
7654321
DIAG
System
LAN/Act
LAN/Act
Internet/Act
Internet Internet
Dual-Function Ports
DMZ

Cisco RV042G Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	6
Routing protocols	IP, RIP-1, RIP-2
Supported network protocols	PPTP, L2TP, IPSec, PPPoE, DHCP
VPN support	PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec, Dead peer detection (DPD), Internet Key Exchange (IKE), split DNS, VPN backup
Firewall security	Stateful packet inspection (SPI) firewall
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, HTTPS, IPSEC
VPN tunnels quantity	50
Authentication method	SHA-1, MD5
MAC address filtering	-
Certification	FCC Class B, CE Class B, UL, cUL, CB
Input current	1 A
Output voltage	12 V
Storage temperature (T-T)	0 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Product color	Black
Rack mounting	No

Weight and Dimensions

Depth	200 mm
Width	130 mm
Height	38.5 mm
Weight	600 g
