Cisco RV042G Administration Guide

Managing the Bandwidth Settings
Cisco Small Business RV0xx Series Routers Administration Guide 81
5
Managing the Bandwidth Settings

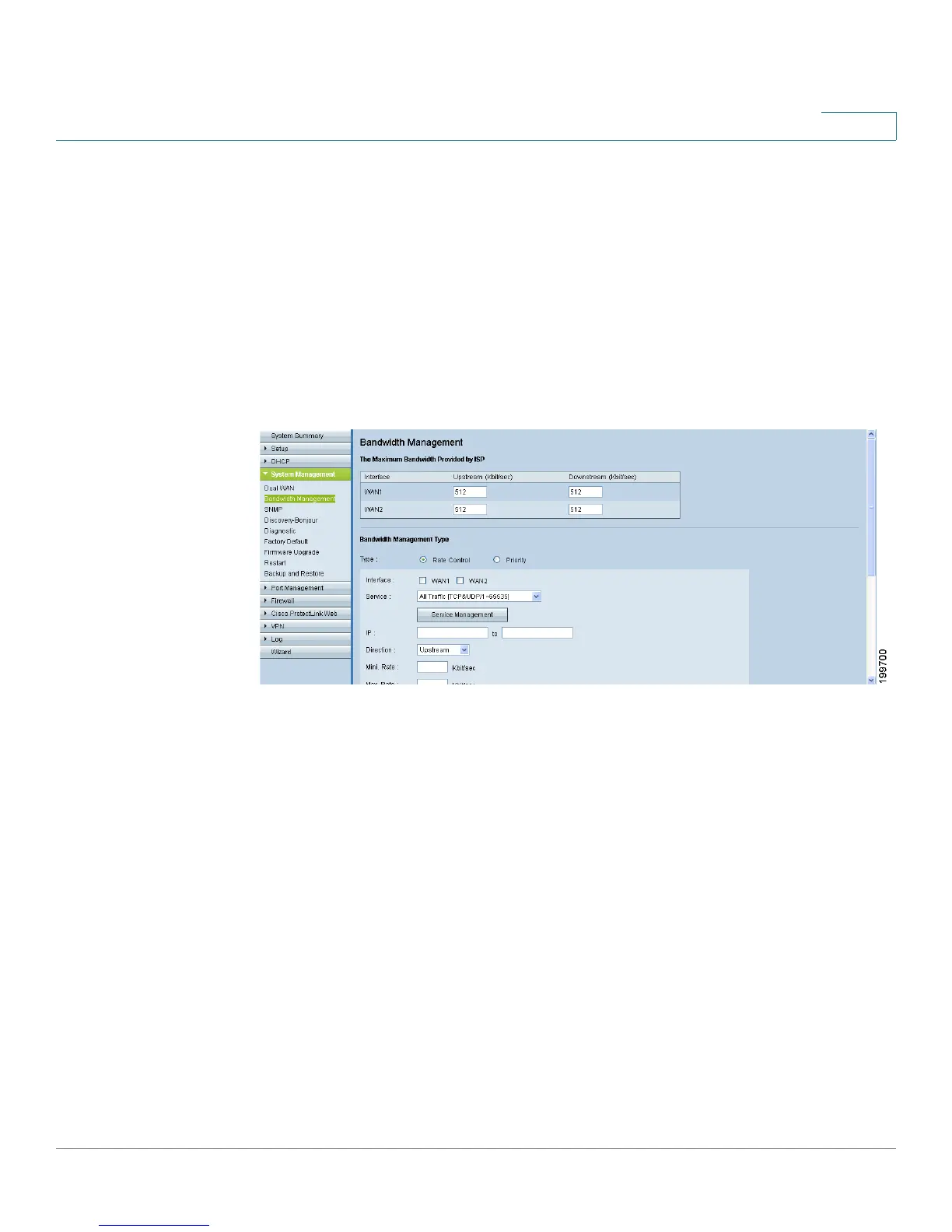

Use the System Management > Bandwidth Management page to adjust the
bandwidth settings for upstream and downstream traffic and to configure Quality
of Service (QoS) settings for various types of traffic. For example, you can enter
bandwidth rules to ensure quality for voice services. For a detailed example, see
Appendix F, “Bandwidth Management.”
To open this page: Click System Management > Bandwidth Management in the
navigation tree.
NOTE Before navigating away from this page, click Save to save your settings, or click
Cancel to undo them. Any unsaved changes are abandoned.
Max Bandwidth Provided by ISP
Enter the maximum bandwidth settings as specified by your Internet Service
Provider.
• Upstream: Enter the maximum upstream bandwidth provided by your ISP.
The default is 512 kbit/sec.
• Downstream: Enter the maximum downstream bandwidth provided by
your ISP. The default is 12 kbit/sec.
Bandwidth Management Type
Choose one of the following management options:
• Rate Control: Choose this option to specify minimum (guaranteed)
bandwidth and maximum (limited) bandwidth for each service or IP
address.

Cisco RV042G Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	6
Routing protocols	IP, RIP-1, RIP-2
Supported network protocols	PPTP, L2TP, IPSec, PPPoE, DHCP
VPN support	PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec, Dead peer detection (DPD), Internet Key Exchange (IKE), split DNS, VPN backup
Firewall security	Stateful packet inspection (SPI) firewall
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, HTTPS, IPSEC
VPN tunnels quantity	50
Authentication method	SHA-1, MD5
MAC address filtering	-
Certification	FCC Class B, CE Class B, UL, cUL, CB
Input current	1 A
Output voltage	12 V
Storage temperature (T-T)	0 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Product color	Black
Rack mounting	No

Weight and Dimensions

Depth	200 mm
Width	130 mm
Height	38.5 mm
Weight	600 g
