Cisco RV042G Administration Guide

11
Cisco Small Business RV0xx Series Routers Administration Guide 159

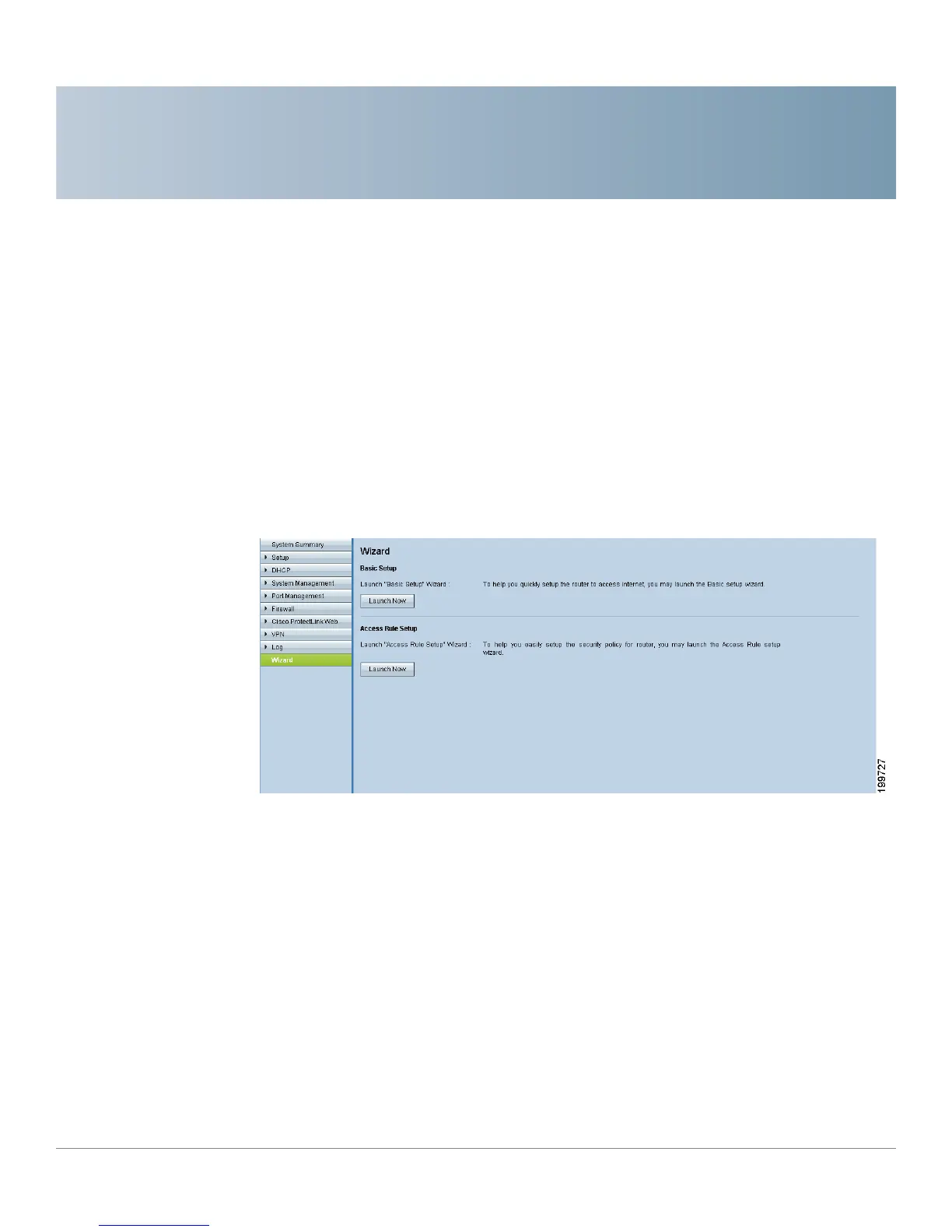

Wizard
Use this tab to access two Setup Wizards, the Basic Setup Wizard and the Access
Rule Setup Wizard. Run the Basic Setup Wizard to change the number of WAN
ports or set up the router for your Internet connection(s). Run the Access Rule
Setup Wizard to set up the security policy for the router.
To open this page: Click Wizard in the navigation tree. Alternatively click Setup
Wizard on the System Summary page.
This page includes the following sections:
• Basic Setup, page 160
• Access Rule Setup, page 160

Cisco RV042G Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	6
Routing protocols	IP, RIP-1, RIP-2
Supported network protocols	PPTP, L2TP, IPSec, PPPoE, DHCP
VPN support	PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec, Dead peer detection (DPD), Internet Key Exchange (IKE), split DNS, VPN backup
Firewall security	Stateful packet inspection (SPI) firewall
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, HTTPS, IPSEC
VPN tunnels quantity	50
Authentication method	SHA-1, MD5
MAC address filtering	-
Certification	FCC Class B, CE Class B, UL, cUL, CB
Input current	1 A
Output voltage	12 V
Storage temperature (T-T)	0 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Product color	Black
Rack mounting	No

Weight and Dimensions

Depth	200 mm
Width	130 mm
Height	38.5 mm
Weight	600 g
