Cisco RV042G Administration Guide

VPN
Setting Up PPTP Server
Cisco Small Business RV0xx Series Routers Administration Guide 150
9
NOTE Before navigating away from this page, click Save to save your settings, or click
Cancel to undo them. Any unsaved changes are abandoned.

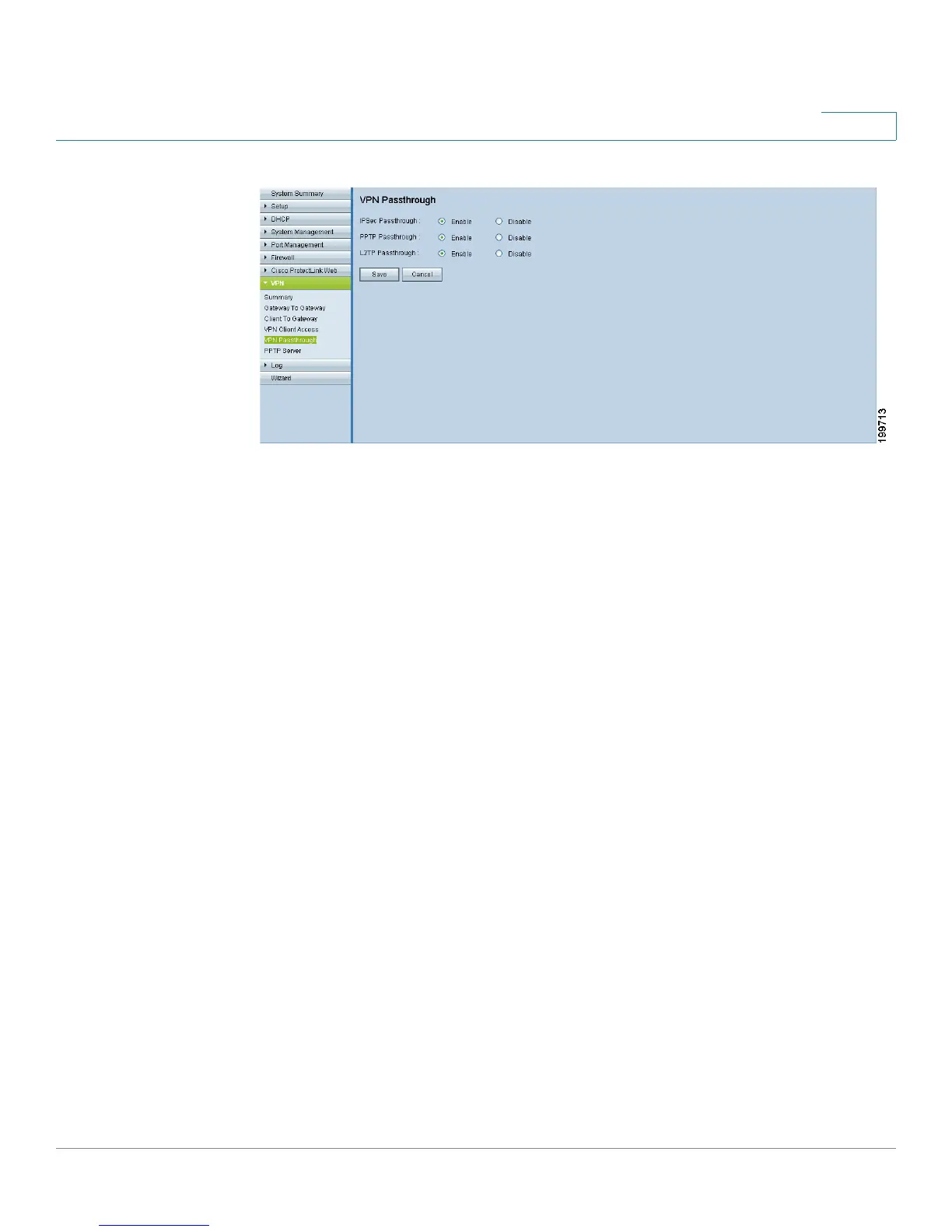

Enable or disable the following settings, as needed:
• IPSec Passthrough: Internet Protocol Security (IPSec) is a suite of
protocols used to implement secure exchange of packets at the IP layer.
IPSec Passthrough is enabled by default to allow IPSec tunnels to pass
through the router.
• PPTP Passthrough: Point-to-Point Tunneling Protocol (PPTP) allows the
Point-to-Point Protocol (PPP) to be tunneled through an IP network. PPTP
Passthrough is enabled by default.
• L2TP Passthrough: Layer 2 Tunneling Protocol is the method used to
enable Point-to-Point sessions via the Internet on the Layer 2 level. L2TP
Passthrough is enabled by default.
Setting Up PPTP Server
Use the VPN > PPTP Server page to enable up to five PPTP (Point-to-Point
Tunneling Protocol) VPN tunnels for users who are running PPTP client software on
Windows XP or 2000. PPTP clients are included by default in Microsoft Windows.
NOTE In Windows XP/2000, a user opens the Network Connections panel and creates a
new connection. In the wizard, the user selects the option to create a connection to
the workplace using a Virtual Private Network connection. The user will need to
know the host name or IP address for the router. This value needs to match the value
that you enter on the VPN > PPTP Server page. The wizard guides the user to
create a desktop shortcut, which can be used to launch the client. To connect, the

Cisco RV042G Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	6
Routing protocols	IP, RIP-1, RIP-2
Supported network protocols	PPTP, L2TP, IPSec, PPPoE, DHCP
VPN support	PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec, Dead peer detection (DPD), Internet Key Exchange (IKE), split DNS, VPN backup
Firewall security	Stateful packet inspection (SPI) firewall
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, HTTPS, IPSEC
VPN tunnels quantity	50
Authentication method	SHA-1, MD5
MAC address filtering	-
Certification	FCC Class B, CE Class B, UL, cUL, CB
Input current	1 A
Output voltage	12 V
Storage temperature (T-T)	0 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Product color	Black
Rack mounting	No

Weight and Dimensions

Depth	200 mm
Width	130 mm
Height	38.5 mm
Weight	600 g
