Configuring a Gateway-to-Gateway VPN Tunnel Between RV0xx Series Routers
To p o l o g y O p t i o n s
Cisco Small Business RV0xx Series Routers Administration Guide 171
D
VPN Hub and Spoke Topology
In a VPN hub-and-spoke topology, multiple VPN routers (spokes) communicate
securely with a central VPN router (hub). A separate, secured tunnel extends
between each individual spoke and the hub.
In the following example, two branch offices (spokes) have site-to-site VPN tunnels
to the main office (hub). The traffic typically is between a remote site and the main
office. Inter-site traffic must pass through the hub first and then out to a spoke.

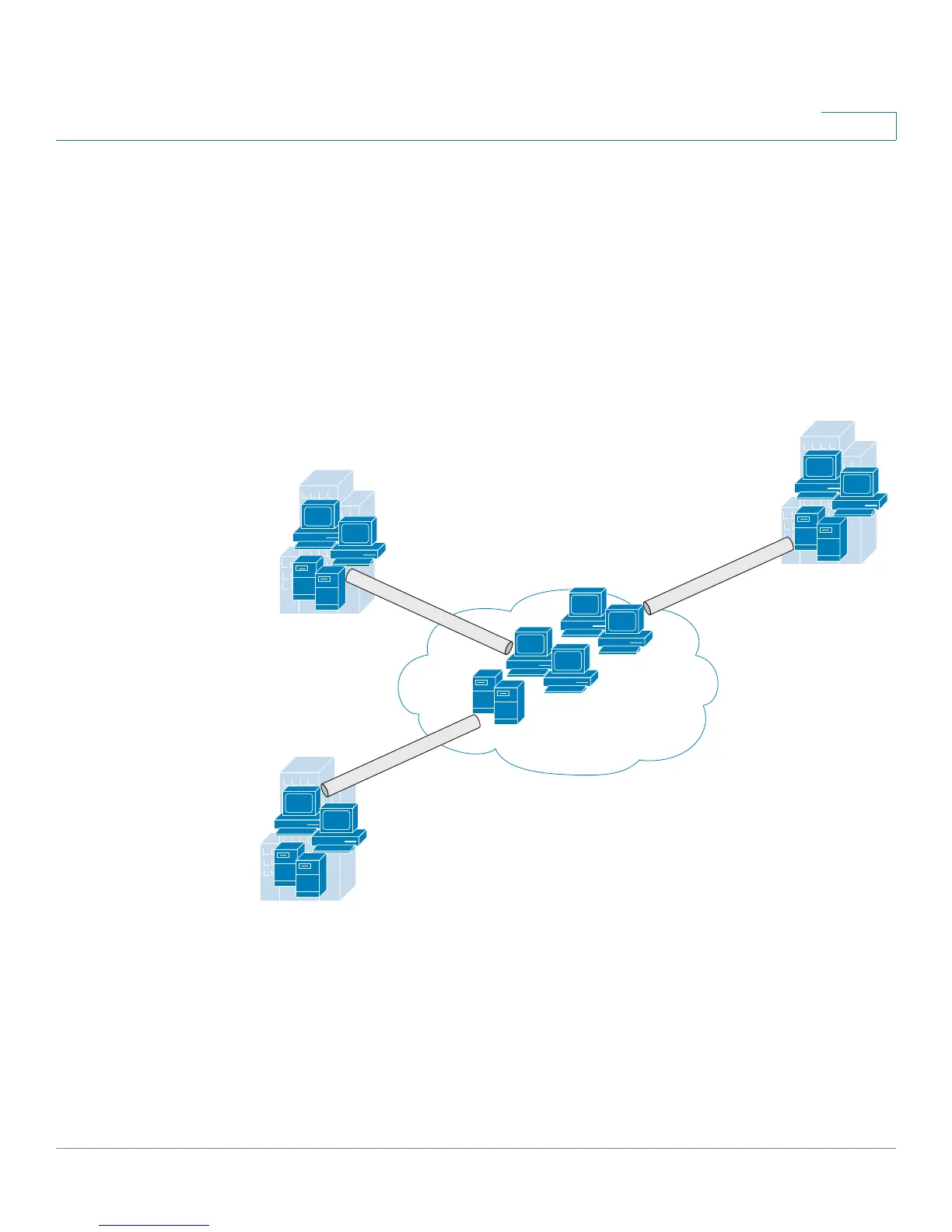

Figure 1 Hub and Spoke
This topology is a simple way to allow all branch employees to access the main
network. It works well if most traffic is from the remote sites to the main network
and there is little traffic among the sites. Too much inter-site traffic may create
bottlenecks at the hub.
Site 2
Site 1
Site 3
Internet
Main Office
VPN
Tunnel
VPN
Tunnel
VPN
Tunnel
284286

Cisco RV042G Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	6
Routing protocols	IP, RIP-1, RIP-2
Supported network protocols	PPTP, L2TP, IPSec, PPPoE, DHCP
VPN support	PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec, Dead peer detection (DPD), Internet Key Exchange (IKE), split DNS, VPN backup
Firewall security	Stateful packet inspection (SPI) firewall
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, HTTPS, IPSEC
VPN tunnels quantity	50
Authentication method	SHA-1, MD5
MAC address filtering	-
Certification	FCC Class B, CE Class B, UL, cUL, CB
Input current	1 A
Output voltage	12 V
Storage temperature (T-T)	0 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Product color	Black
Rack mounting	No

Weight and Dimensions

Depth	200 mm
Width	130 mm
Height	38.5 mm
Weight	600 g
