Cisco RV042G Administration Guide

Configuring a Gateway-to-Gateway VPN Tunnel Between RV0xx Series Routers
To p o l o g y O p t i o n s
Cisco Small Business RV0xx Series Routers Administration Guide 172
D
VPN Mesh Topology
In a VPN mesh topology, each VPN router can communicate securely with all other
VPN routers. Multiple secured tunnels extend from each site to all other sites.
In the following example, four sites are connected in a VPN mesh topology. Three
VPN tunnels extend from each site, providing secure communications with all
other sites. Data can travel directly between any two sites.

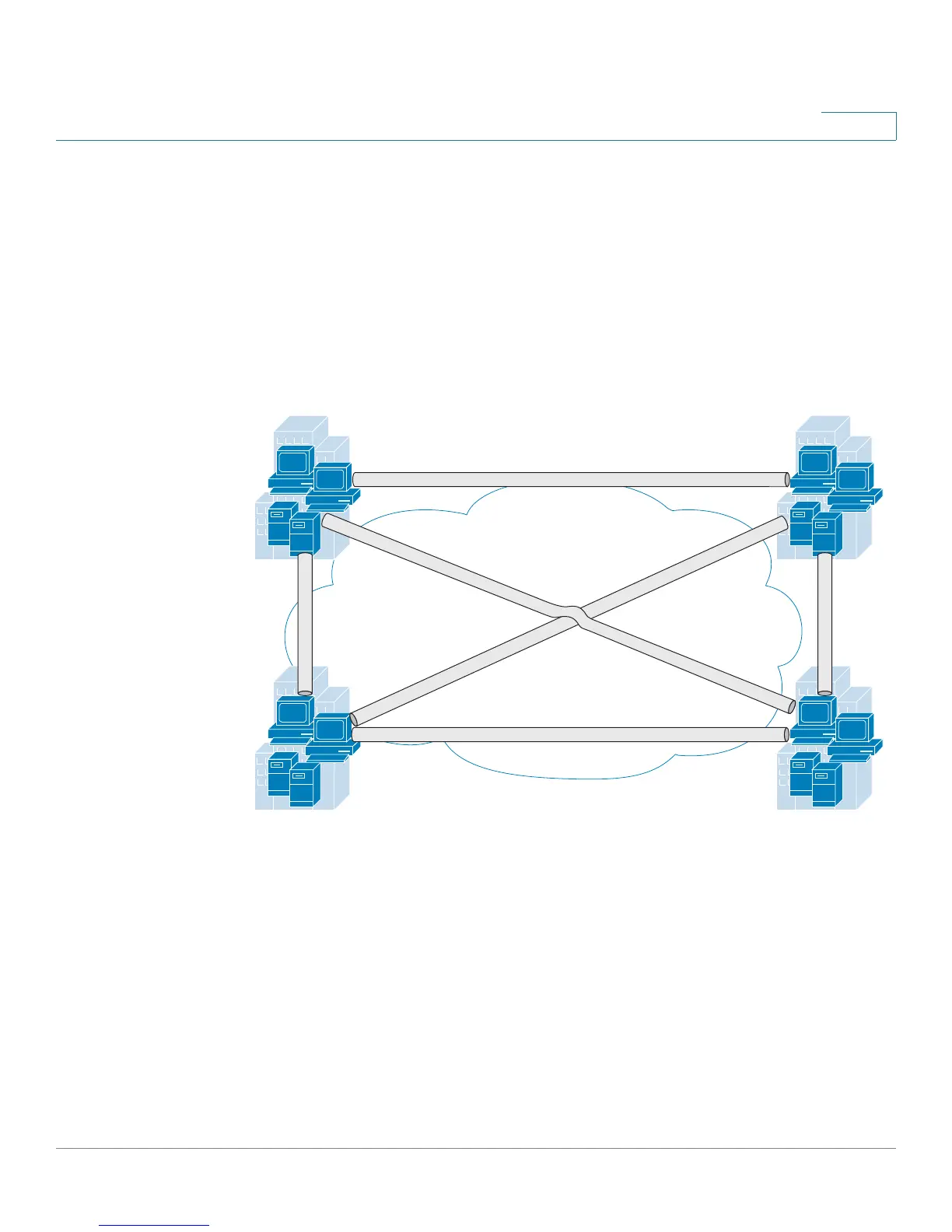

Figure 2 Mesh
This topology requires much more configuration on each router. However, it works
well in a complicated network with data traveling between multiple sites. Because
all devices have direct peer relationships with one another, this design prevents
the bottlenecks that can occur with a hub-and-spoke topology. This design also
ensures that if one site is down, the other sites can continue to exchange data.
NOTE When the number of nodes in a full mesh topology increases, scalability may
become an issue—the limiting factor being the number of tunnels that the devices
can support at a reasonable CPU utilization.
Site 1 Site 2
Site 3 Site 4
VPN Tunnel
VPN Tunnel
VPN
Tunnel
VPN
Tunnel
284287
VPN
Tunnel
VPN
Tunnel
Internet

Cisco RV042G Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	6
Routing protocols	IP, RIP-1, RIP-2
Supported network protocols	PPTP, L2TP, IPSec, PPPoE, DHCP
VPN support	PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec, Dead peer detection (DPD), Internet Key Exchange (IKE), split DNS, VPN backup
Firewall security	Stateful packet inspection (SPI) firewall
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, HTTPS, IPSEC
VPN tunnels quantity	50
Authentication method	SHA-1, MD5
MAC address filtering	-
Certification	FCC Class B, CE Class B, UL, cUL, CB
Input current	1 A
Output voltage	12 V
Storage temperature (T-T)	0 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 85 %
Product color	Black
Rack mounting	No

Weight and Dimensions

Depth	200 mm
Width	130 mm
Height	38.5 mm
Weight	600 g
