Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-02
Chapter 1 Overview
Rear-Panel Description

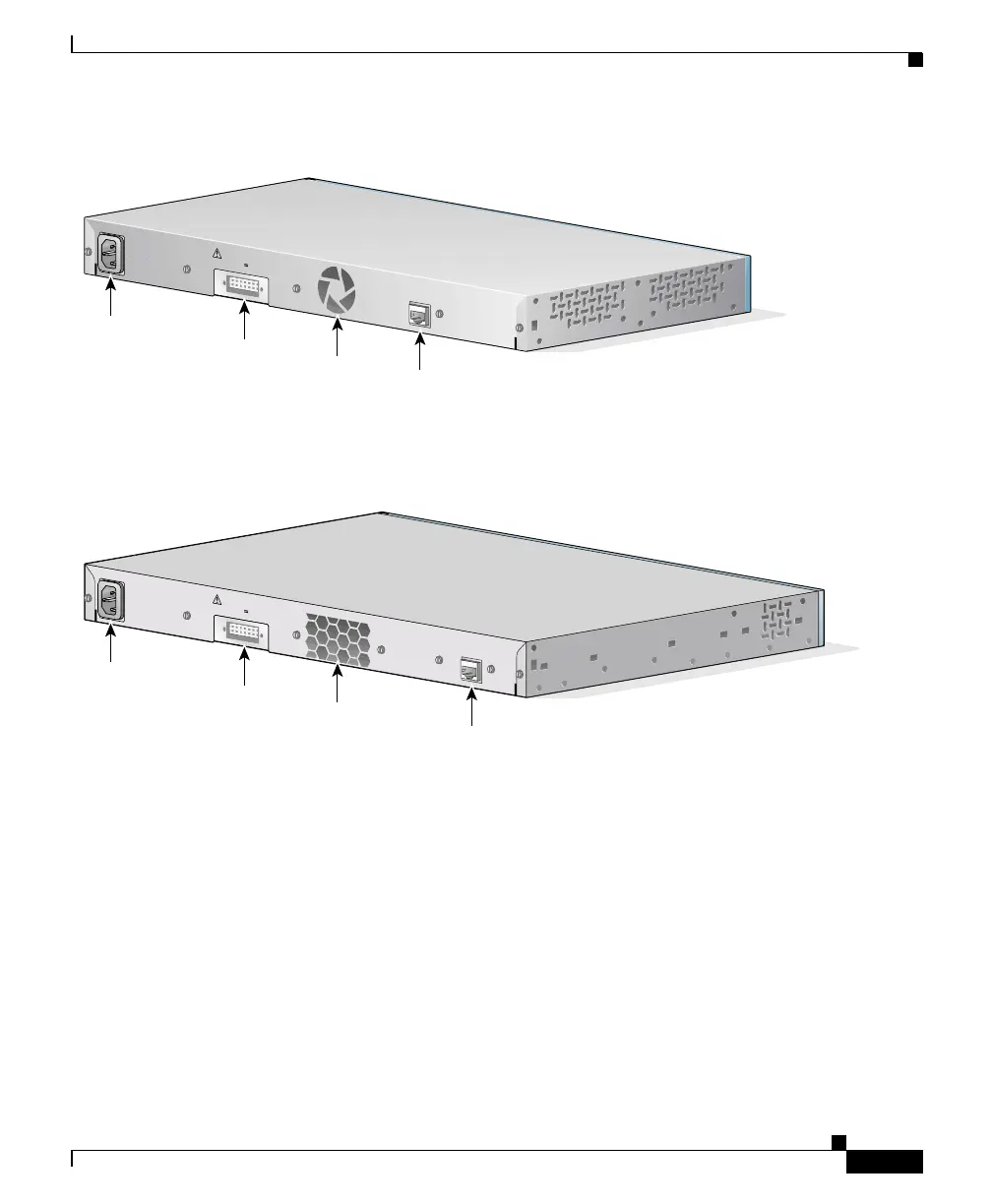

Figure 1-19 Catalyst 2950 Switch Rear Panel
Figure 1-20 Catalyst 2950G-48-EI Switch Rear Panel
RATING
100-127V~
@ 1A
200-240V~
@0.5A
50-60Hz
DC INPUT FOR REMOTE
POWER SUPPLY
SPECIFIED IN MANUAL.
+12V @4.5A
CONSOLE
AC power
connector
RPS
connector
Fan
RJ-45
console port
45585
RATING
100-127V~
@ 1A
200-240V~
@0.5A
50-60Hz
DC INPUT FOR REMOTE
POWER SUPPLY
SPECIFIED IN MANUAL.
+12V @4.5A
CONSOLE
AC power
connector
RPS
connector
Fan
exhaust
RJ-45
console port
