2-15
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-02
Chapter 2 Installation
Installing the Switch in a Rack

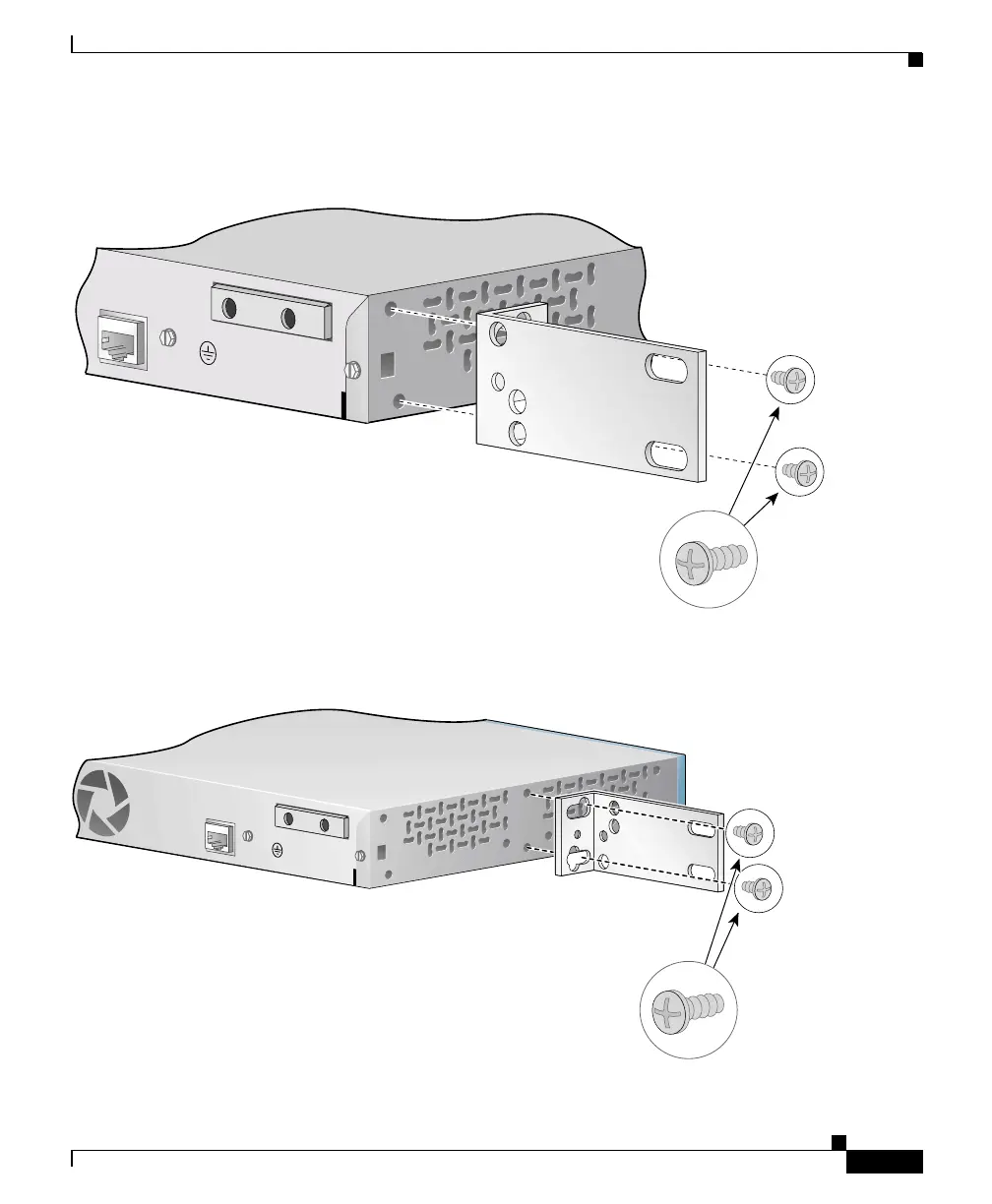

Figure 2-8 Attaching Brackets on the Catalyst 2950G-24-EI-DC Switch in a 23-Inch Telco Rack
(Rear Panel Forward)
Figure 2-9 Attaching Brackets on the Catalyst 2950G-24-EI-DC Switch in a 23-Inch Telco Rack
CONSOLE
Number-8
Phillips
truss-head
screws
65674
CONSOLE
65675
Number-8
Phillips
truss-head
screws
